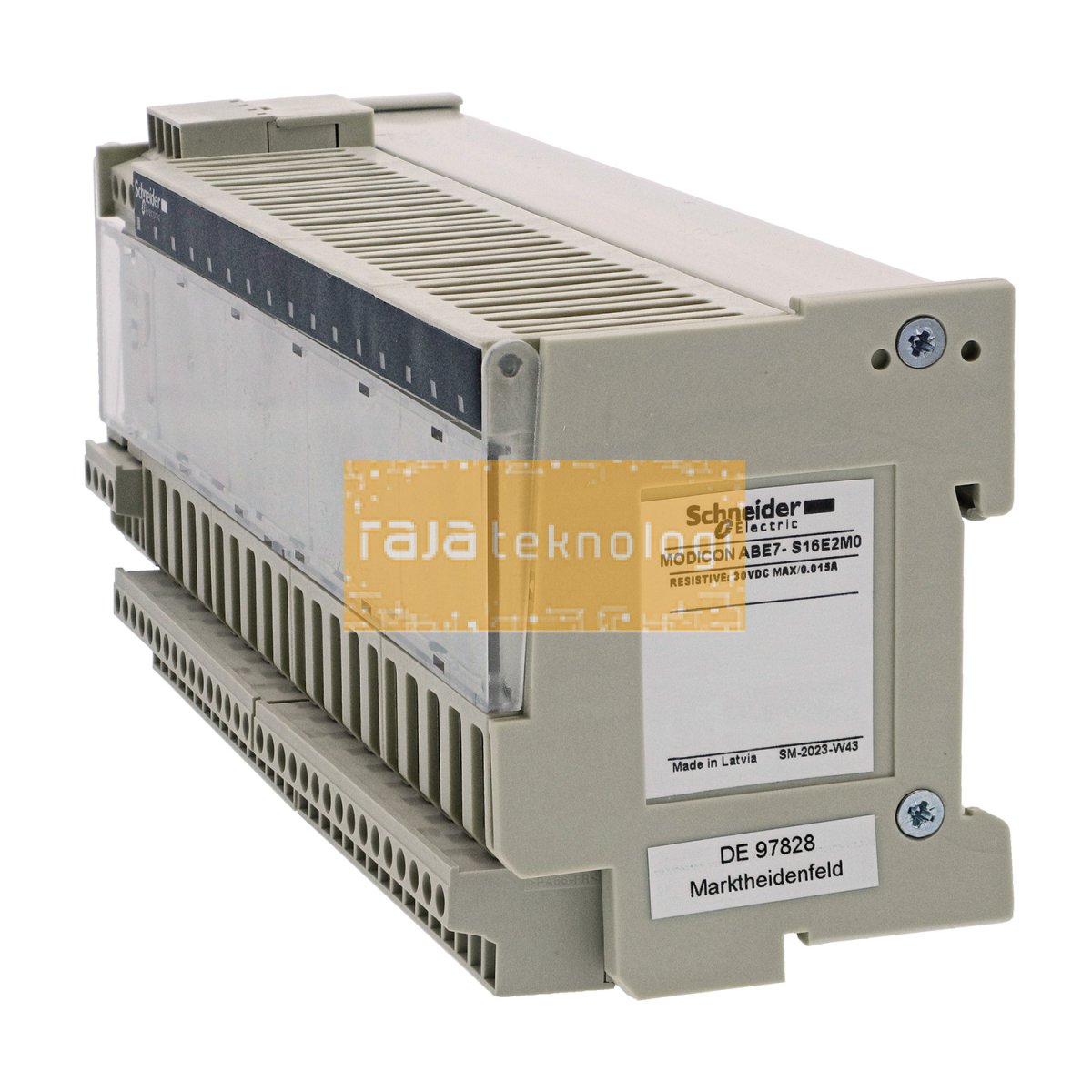

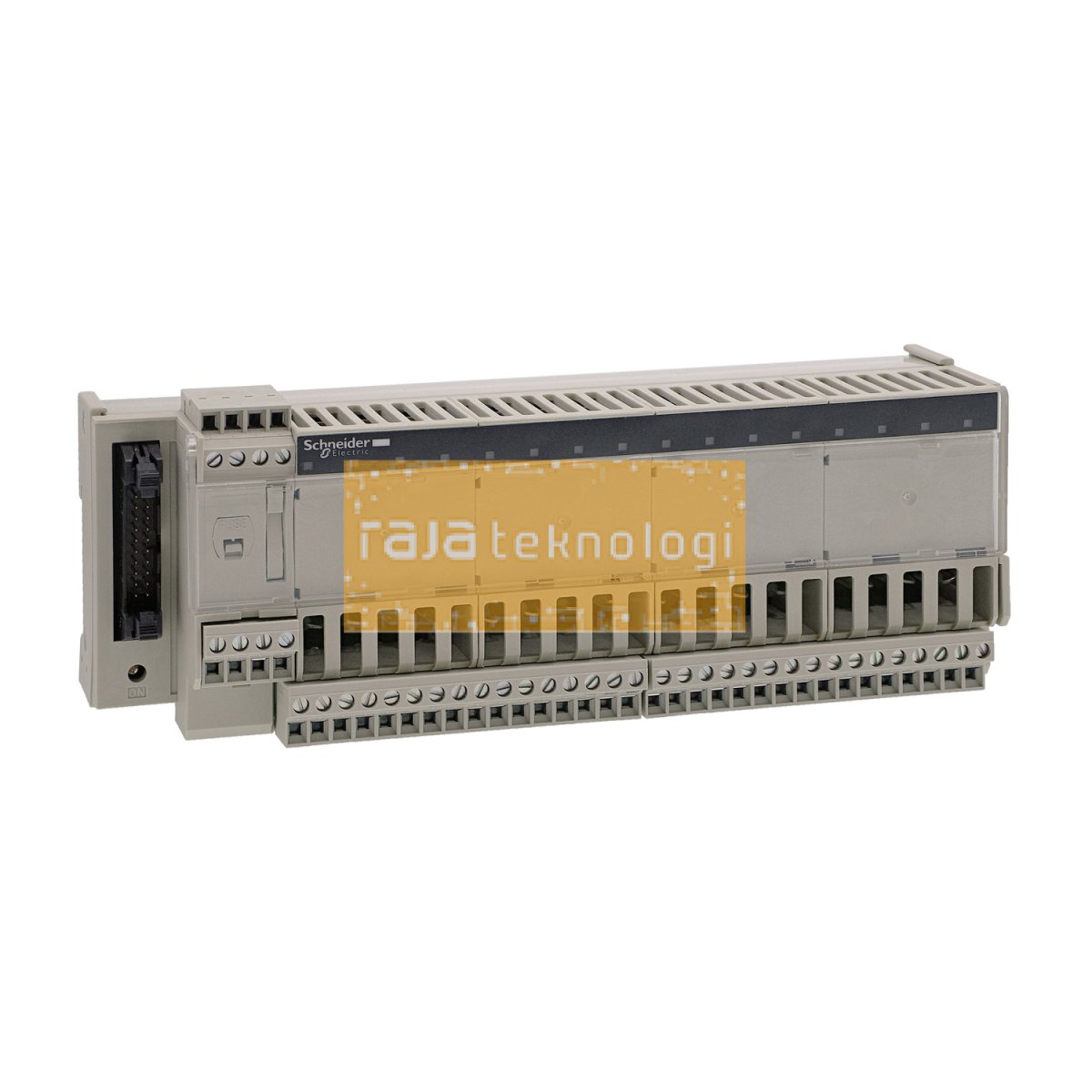

ABE7S16E2M0 - Sub-base - soldered solid state output relay ABE7 - 16 inputs - 230 V AC

This product is part of the Modicon ABE7 range, an offer of connection sub-bases for pre-wired system. This is a sub-base with fixed solid-state relays for 16 channels, with 2 terminals per channel. Its control circuit voltage is 230VAC. It provides a digital input control function. It is furnished with removable screw terminal for electrical connection, with a 20-way HE10 connector, and electromechanical relays. The tightening torque of wiring is 0.6N.m with flat diameter 3.5mm screwdriver. It is a relay output sub-base with IP20 degree of protection. It weighs 0.407kg. It is suitable into any types of industrial applications needing rapid connection of I/O modules (digital, analog, and counter) to operative parts. This product is certified by DNV, CSA, GL and EAC. It is suitable for use with Modicon M221 Book, TSX Micro and Modicon Premium controllers, Modicon TM3 and X80 I/O expansion modules. It is delivered in 1 package (PCE type). Its fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment.
