Schneider

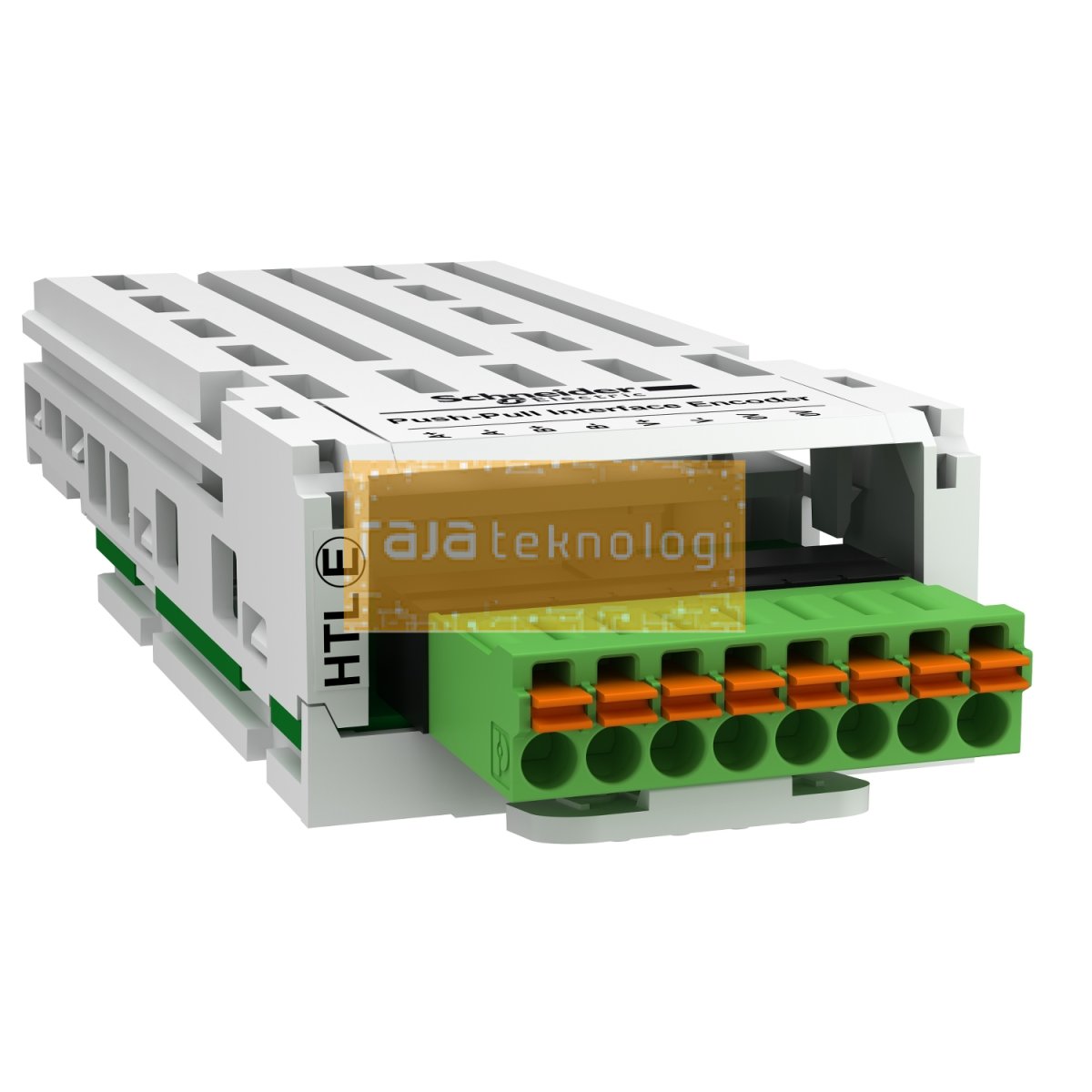

VW3A3424 - High threshold logic encoder interface module, Altivar, 12 to 24V, 0.1 to 0.2A, 1 removable spring connector
| Kode Produk | VW3A3424 |
| Brand | Schneider |
| Kategori | Drives & Starters |
Pengiriman ke seluruh Indonesia via ekspedisi terpercaya
Deskripsi
This HTL encoder interface module is an option for variable speed drives of Altivar range. It is compatible with Altivar Machine ATV340 and Altivar Process ATV900 drives. It improves drive performance irrespective of the motor load state, zero speed torque, accurate speed regulation, torque accuracy, shorter response times on a torque surge, improved dynamic performance in transient state. It is protected against short circuits and overloads. It weighs 150g. It is used for Flux Vector Control operation with sensor (FVC mode) for asynchronous motors, or for Vector Control operation with speed feedback (FSY mode) for synchronous motors. It is inserted in a dedicated slot of the drive.
Spesifikasi
| Range of product | Altivar |
|---|---|
| Product or component type | Encoder interface module |
| Range compatibility | Altivar Process ATV900 Altivar Process Modular Altivar Machine ATV340 |
| Encoder type | High threshold logic (HTL) |
| [Us] rated supply voltage | 12 V DC 15 V DC 24 V DC |
| Maximum supply current | 0.2 A at 12 V DC 0.175 A at 15 V DC 0.1 A at 24 V DC |
|---|---|
| Protection type | Short-circuit protection Overload protection |
| Maximum cable distance between devices | 500 m |
| Maximum operating frequency | 300 kHz |
| Input signal | Push-pull differential: A/AB/B Push-pull single ended: AB Push-pull single ended: A Open collector differential: A/AB/B Open collector PNP: AB Open collector NPN: AB Open collector PNP: A Open collector NPN: A |
| Connector type | 1 removable spring connector |
| Net weight | 0.15 kg |
