Schneider

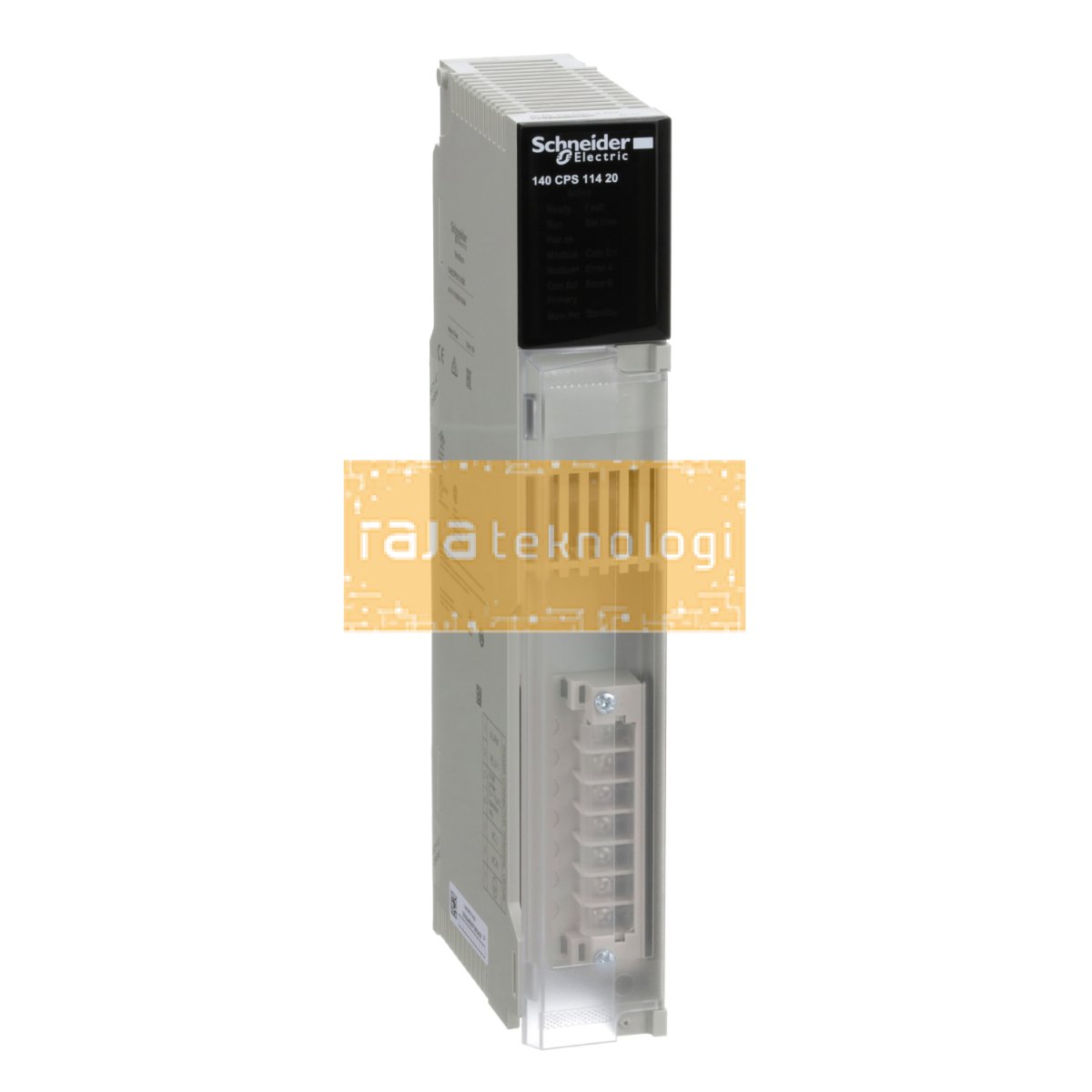

140CPS11420 - Power supply module Modicon Quantum - 115 V/230 V AC - summable or standalone
| Kode Produk | 140CPS11420 |
| Brand | Schneider |
| Kategori | PLC & I/O Module |
Pengiriman ke seluruh Indonesia via ekspedisi terpercaya
Deskripsi
Power supply module Modicon Quantum - 115 V/230 V AC - summable or standalone
Spesifikasi
| Range of product | Modicon Quantum automation platform |
|---|---|
| Product or component type | Power supply module |
| Power supply type | Summable or standalone |
| Input voltage | 115 V (93...132 V) AC 47…63 Hz 230 V (170...276 V) AC |
|---|---|
| Input current | 1300 mA at 115 V 750 mA at 230 V |
| Inrush current | 19 A 230 V 38 A 115 V |
| rated power in VA | 130 VA |
| Associated fuse rating | 2 A, slow-blow |
| Harmonic distortion | <= 10 % of fundamental rms value |
| Output voltage | 5.1 V DC |
| Power supply output current | 11 A 60 °C standalone 20 A 60 °C summable |
| Output overvoltage protection | Internal |
| Output overload protection | Internal |
| Power dissipation | 6 + (1.5 x Iout) where Iout is in A |
| Alarm output | 1 NC 6 A 220 V power supply fault |
| Local signalling | 1 LED (green) for power (PWR OK) |
| Marking | CE |
| Module format | Standard |
| Net weight | 0.65 kg |
