Schneider

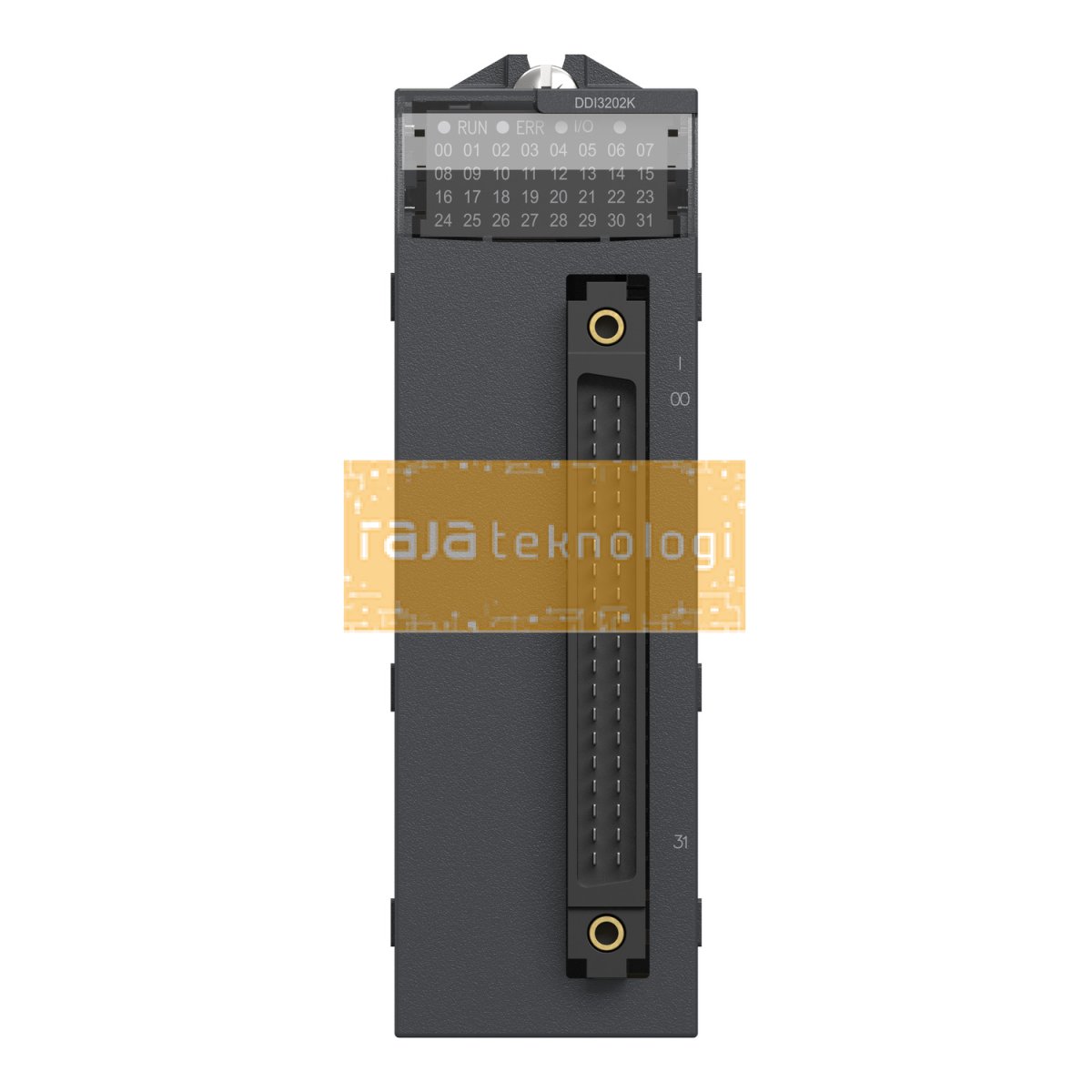

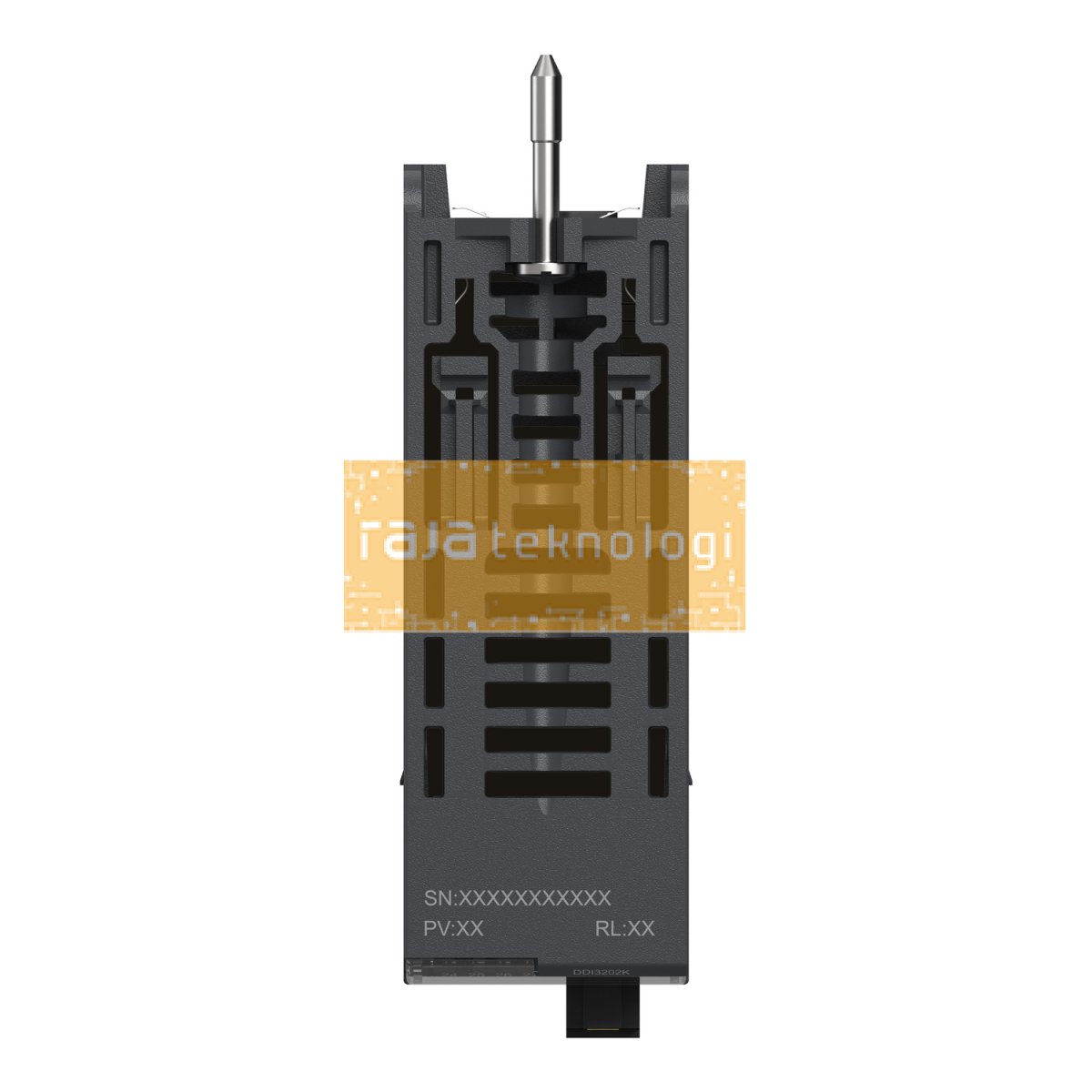

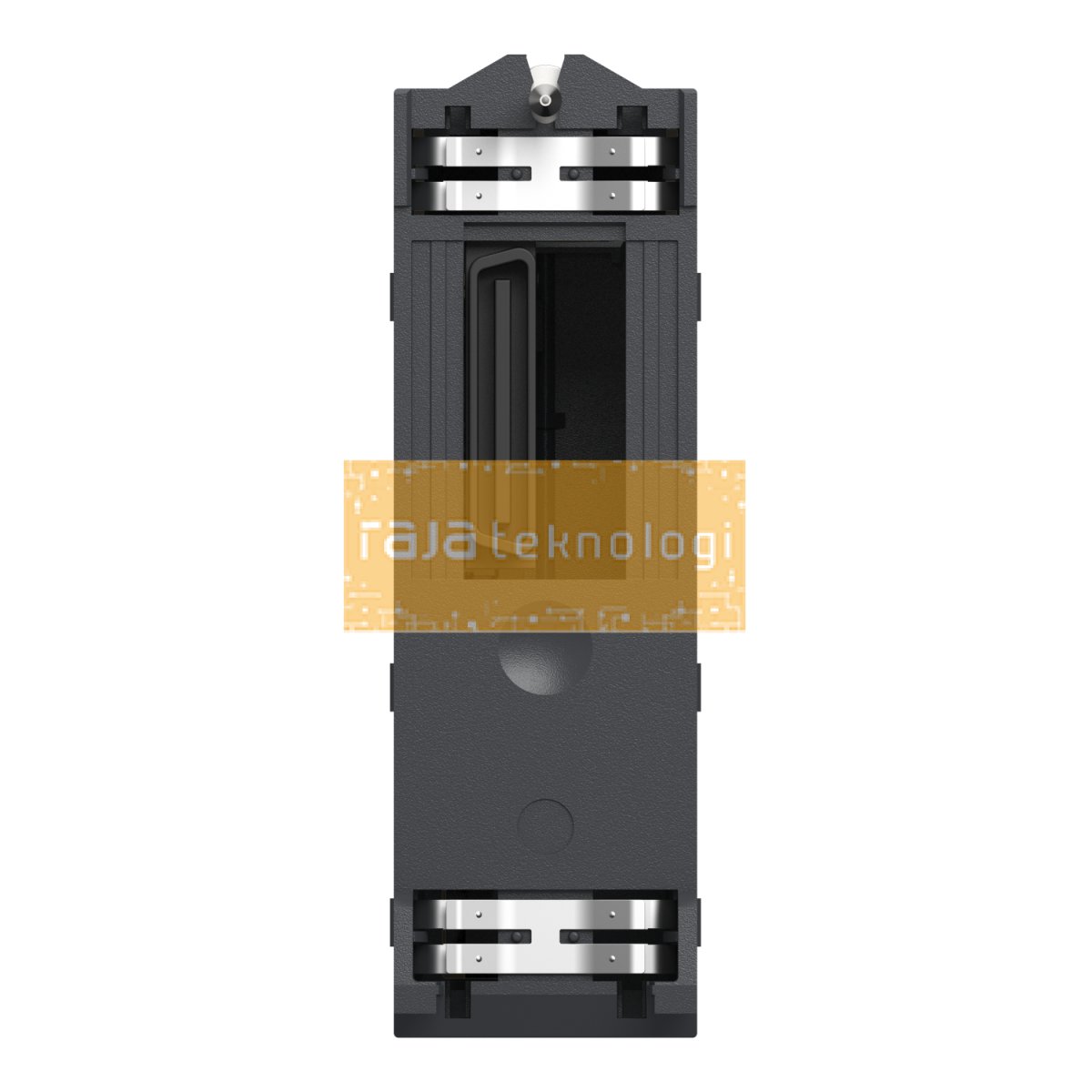

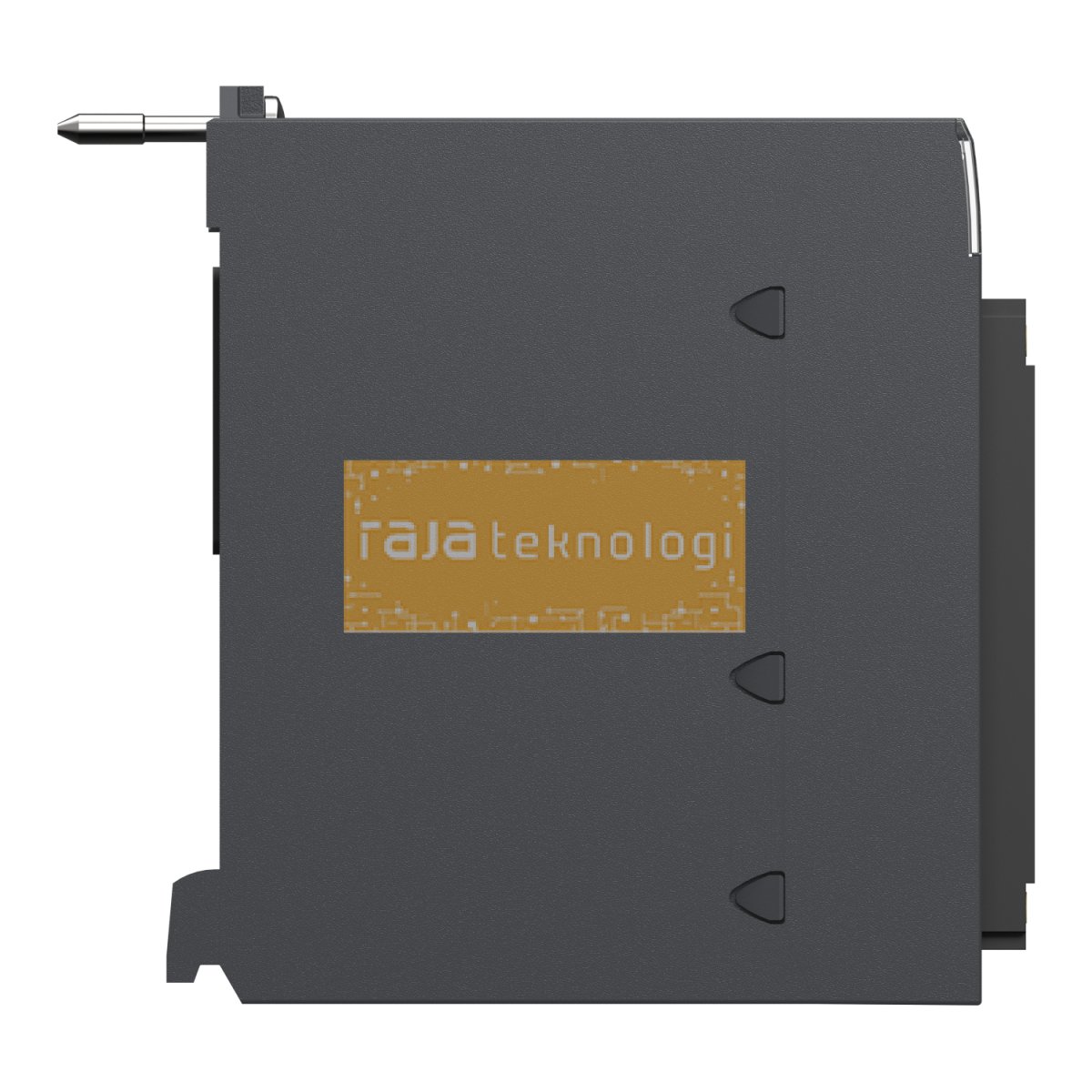

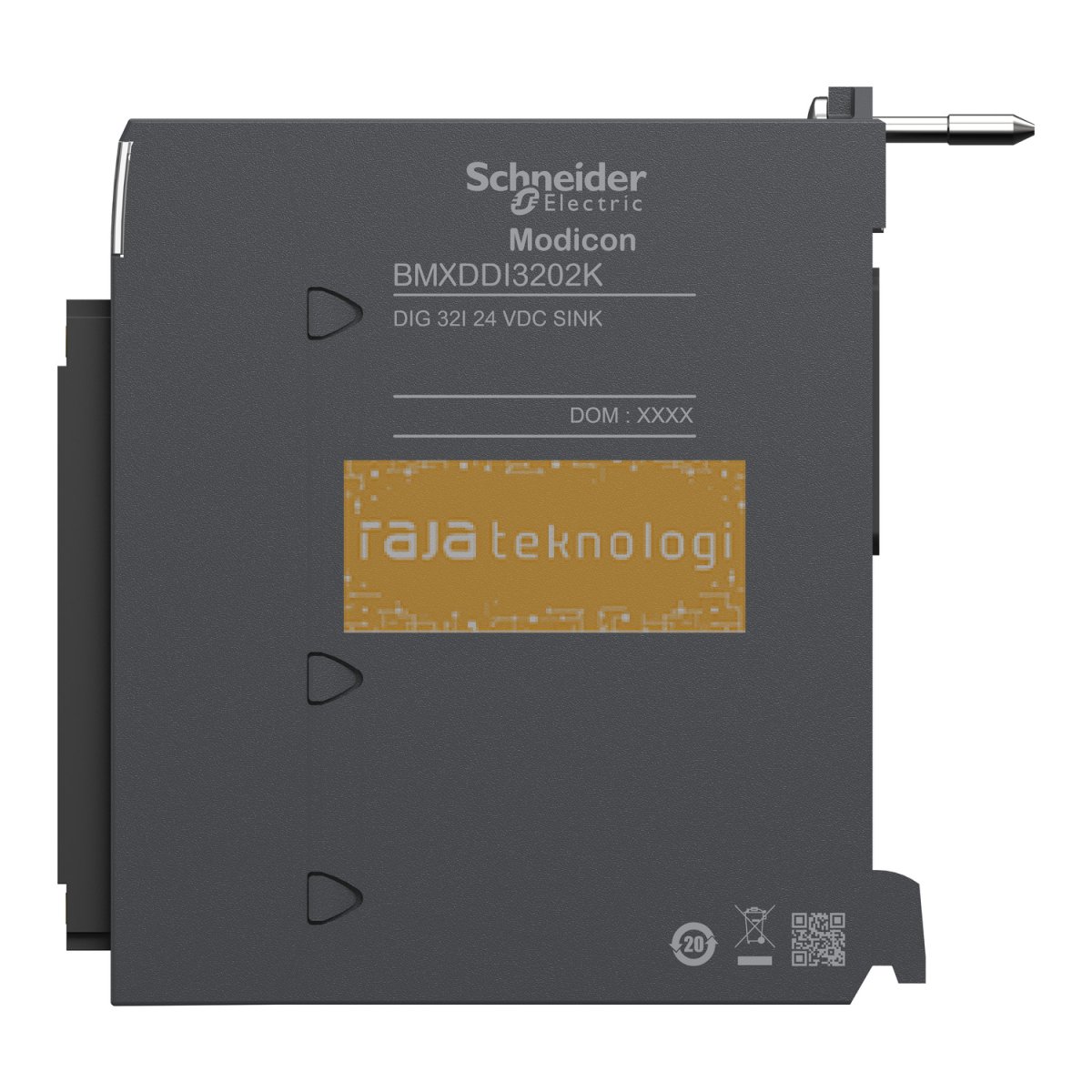

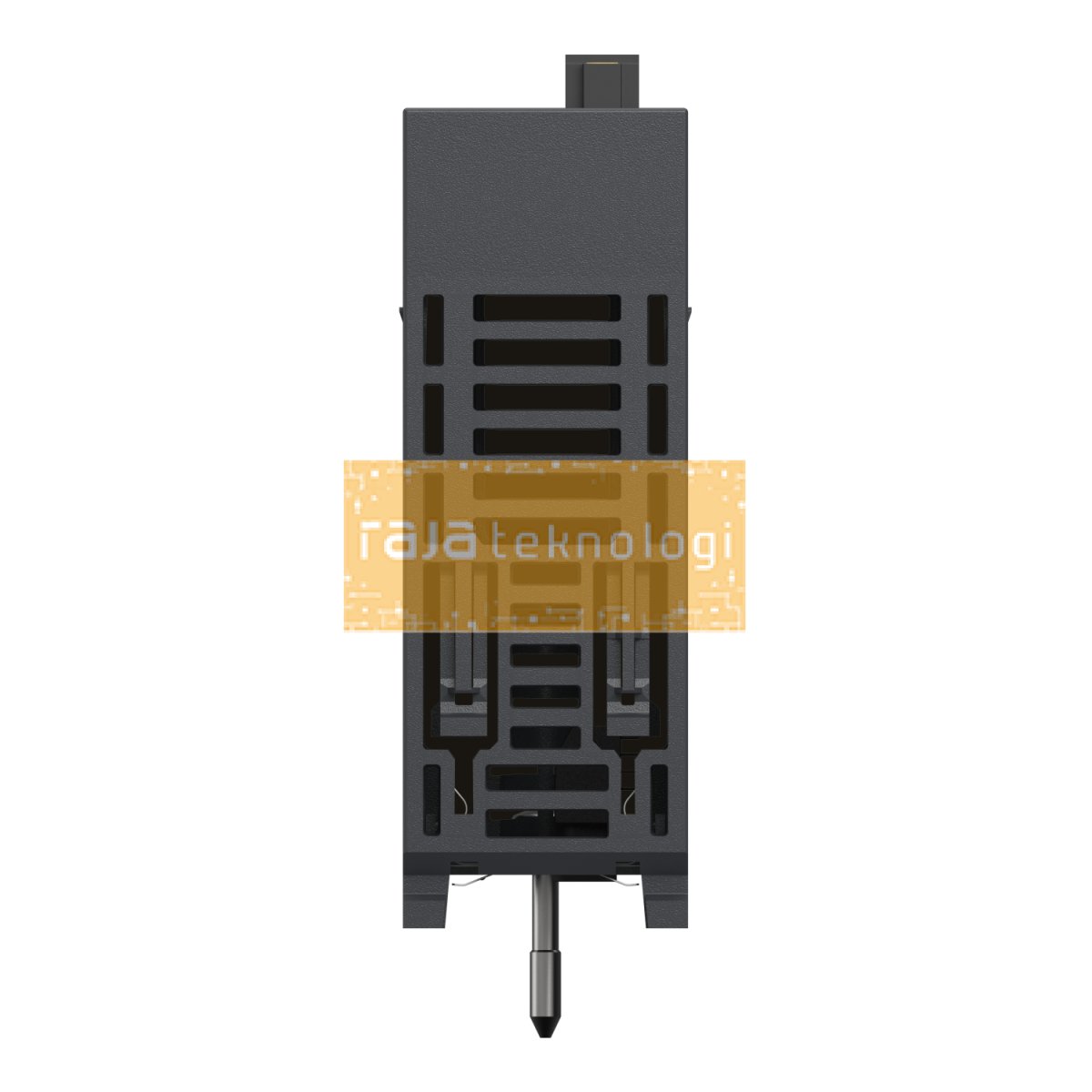

BMXDDI3202K - Discrete input module M340 - 32 inputs - 24 V DC positive
| Kode Produk | BMXDDI3202K |
| Brand | Schneider |
| Kategori | PLC & I/O Module |
Pengiriman ke seluruh Indonesia via ekspedisi terpercaya
Deskripsi
This discrete input module is part of the Modicon X80 modules. It has 32 isolated inputs and it is supplied with 24V DC. this input module with 40-way connectors is designed, for use in conjunction with the TeSys Quickfit mounting system. It occupies a single slot on the rack and it has a case which provides IP 20 protection of the electronics.
Spesifikasi
| Range of product | Modicon X80 |
|---|---|
| Product or component type | Discrete input module |
| Discrete input number | 32 |
| Discrete input voltage | 24 V DC for isolated |
| Discrete input logic | Positive logic (sink) |
| Discrete input number | 32 isolated conforming to IEC 60947-5-2 at 24 V DC 32 isolated conforming to IEC 61131-2 type 3 at 24 V DC |
|---|---|
| Input wiring mode | 2 or 3 wires |
| Discrete input current | 2.5 mA at 24 V DC |
| Voltage state 1 guaranteed | >= 11 V |
| Voltage state 0 guaranteed | < 5 V |
| Current state 1 guaranteed | >= 2 mA |
| Current state 0 guaranteed | <= 0.5 mA |
| Input impedance | 9600 Ohm |
| Paralleling of inputs | No |
| Insulation resistance | > 10 MOhm 500 V DC |
| DC typical response time | 4 ms |
| DC maximum response time | 7 ms |
| Sensor power supply | : 19…30 V |
| Typical current consumption | 121 mA DC |
| Current consumption | 160 mA at 3.3 V DC |
| Power dissipation in W | 3.9 W |
| Isolation between channels and bus | 1500 V for 1 minute |
| Hot swapping fallback | Yes |
| MTBF reliability | 905000 H |
| Voltage detection threshold | < 14 V DC sensor fault > 18 V DC sensor OK |
| Local signalling | 1 LED (green) for module operating (RUN) 1 LED per channel (green) for channel diagnostic 1 LED (red) for module error (ERR) 1 LED (red) for module I/O |
| Height | 134.6 mm |
| Width | 32 mm |
| Depth | 86 mm |
| Net weight | 0.112 kg |
