Schneider

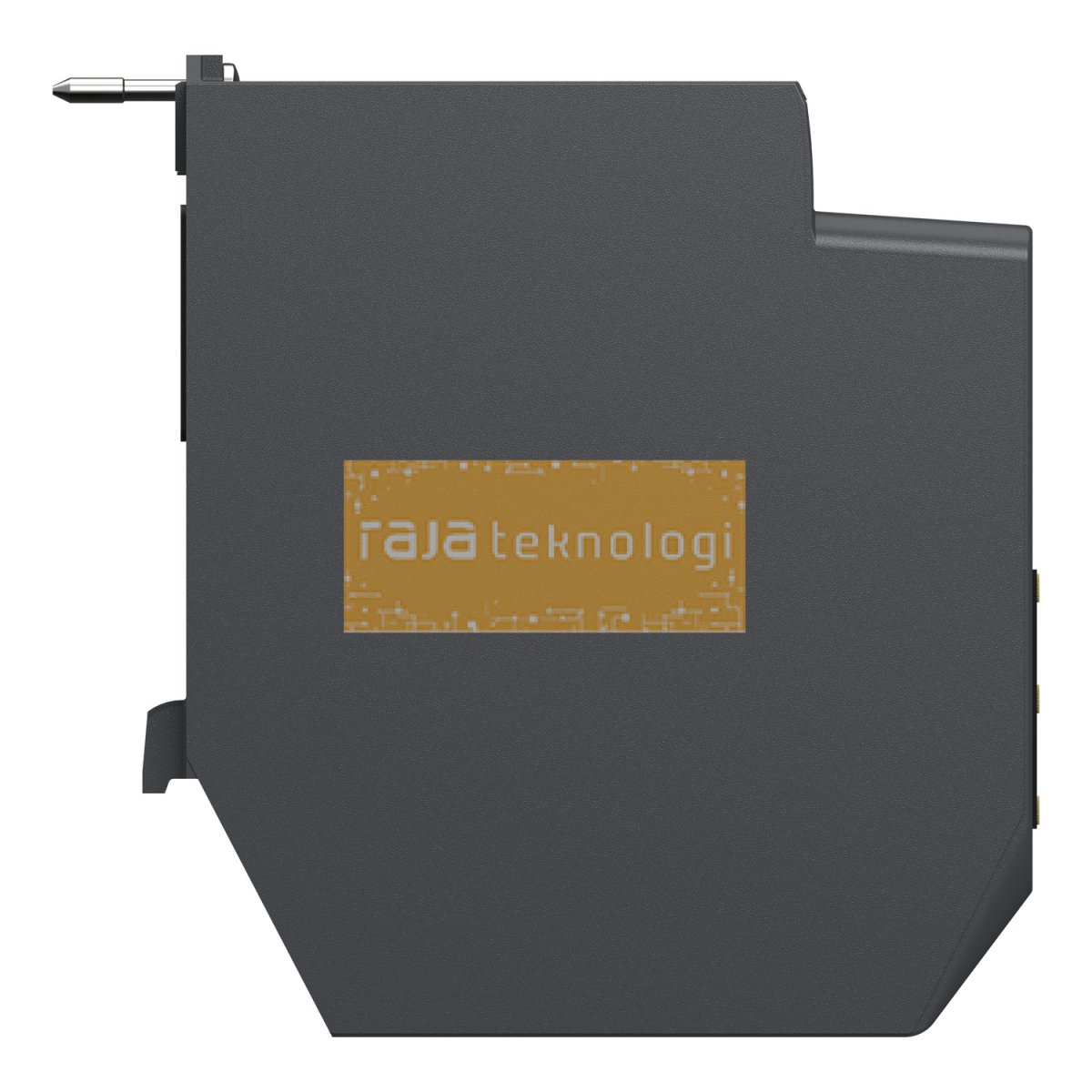

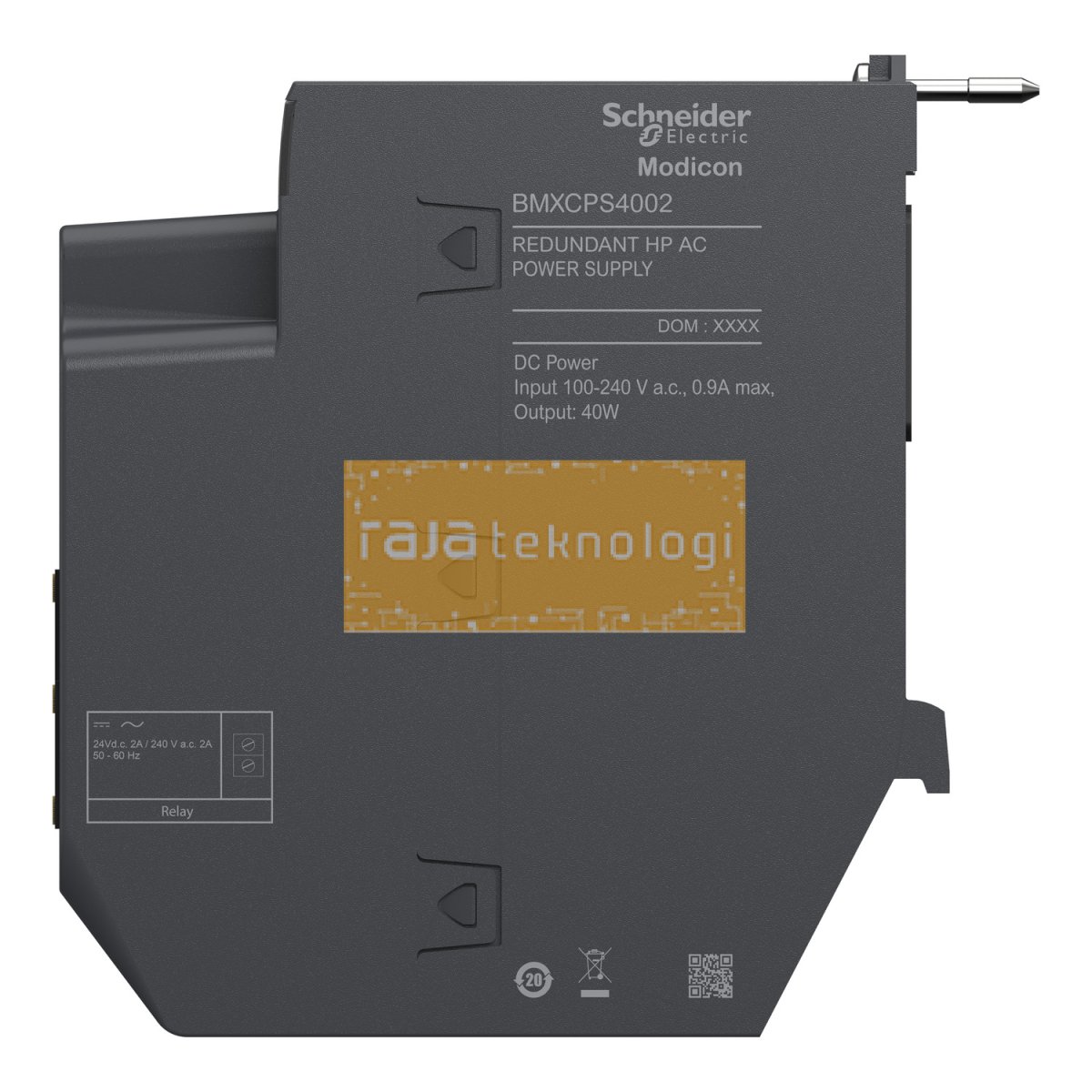

BMXCPS4002 - Power supply module X80 - 100..240 V AC
| Kode Produk | BMXCPS4002 |
| Brand | Schneider |
| Kategori | PLC & I/O Module |
Pengiriman ke seluruh Indonesia via ekspedisi terpercaya
Deskripsi
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This power supply module has a primary voltage of 100V to 240V AC. It is a power supply module with a secondary power of 40W at 24V DC, a current at secondary voltage of 5.5A at 3.3V DC and a maximum power dissipation of 8.5W. This product is robust, high quality and based on the latest innovative technology. It is furnished with 2-pin connector for alarm relay, 5-pin connector for line supply, protective earth for electrical connection. Advanced diagnostics available via networks are temperature sensing, redundancy test, uptime duration, redundancy information and remaining lifetime. It is an IP20 rated product. It weighs 0.51kg. It is suitable for medium to large process applications. This product is certified by CE, RCM, Merchant Navy, CSA, EAC, UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This product is compatible with all backplane. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Spesifikasi
| Range of product | Modicon X80 |
|---|---|
| Product or component type | Power supply module |
| backplane compatibility | All backplane |
| advanced diagnostics available via network | Temperature sensing Redundancy test Uptime duration Redundancy information Remaining lifetime |
| Primary voltage | 100...240 V |
| Supply circuit type | AC |
| Secondary power | 18 W 3.3 V DC at 0…60 °C I/O module logic power supply 40 W 24 V DC at 0…60 °C I/O module power supply and processor if 3.3 V not loaded |
| Primary voltage limit | 85...264 V |
|---|---|
| Network frequency | 50/60 Hz |
| Network frequency limits | 47…63 Hz |
| Apparent power | 0.13 kVA |
| Input current | 0.55 A 240 V 1.01 A 115 V |
| Inrush current | 30 A 120 V 60 A 240 V |
| I²t on activation | 1 A².s 115 V 4 A².s 230 V |
| It on activation | 0.1 A.s 115 V 0.15 A.s 230 V |
| MTBF reliability | 792000 H |
| Protection type | Internal fuse not accessible for primary circuit Overload protection for secondary circuit Overvoltage protection for secondary circuit Short-circuit protection for secondary circuit |
| Current at secondary voltage | 5.5 A 3.3 V DC I/O module logic power supply 1.67 A 24 V DC I/O module power supply and processor |
| Maximum power dissipation in W | 8.5 W |
| Status LED | 1 LED (green) presence of voltages (OK) 1 LED (green) redundancy OK 1 LED (green) power supply status |
| Control type | RESET push-button cold restart |
| Electrical connection | 1 connector 2 pin(s)alarm relay 1 connector 5 pin(s)line supply, protective earth |
| Insulation resistance | >= 100 MOhm primary/ground >= 100 MOhm primary/secondary |
| Net weight | 0.51 kg |
