Schneider

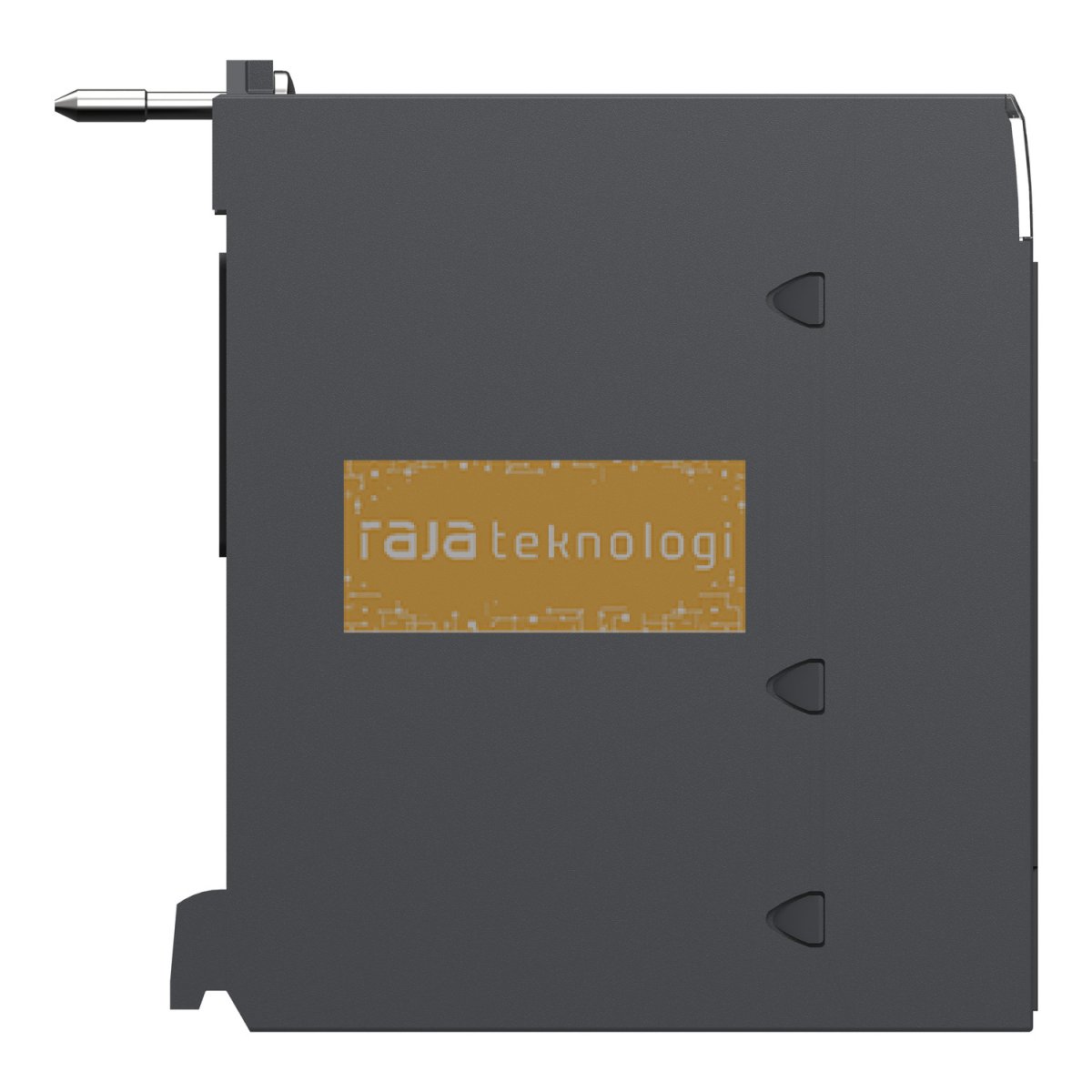

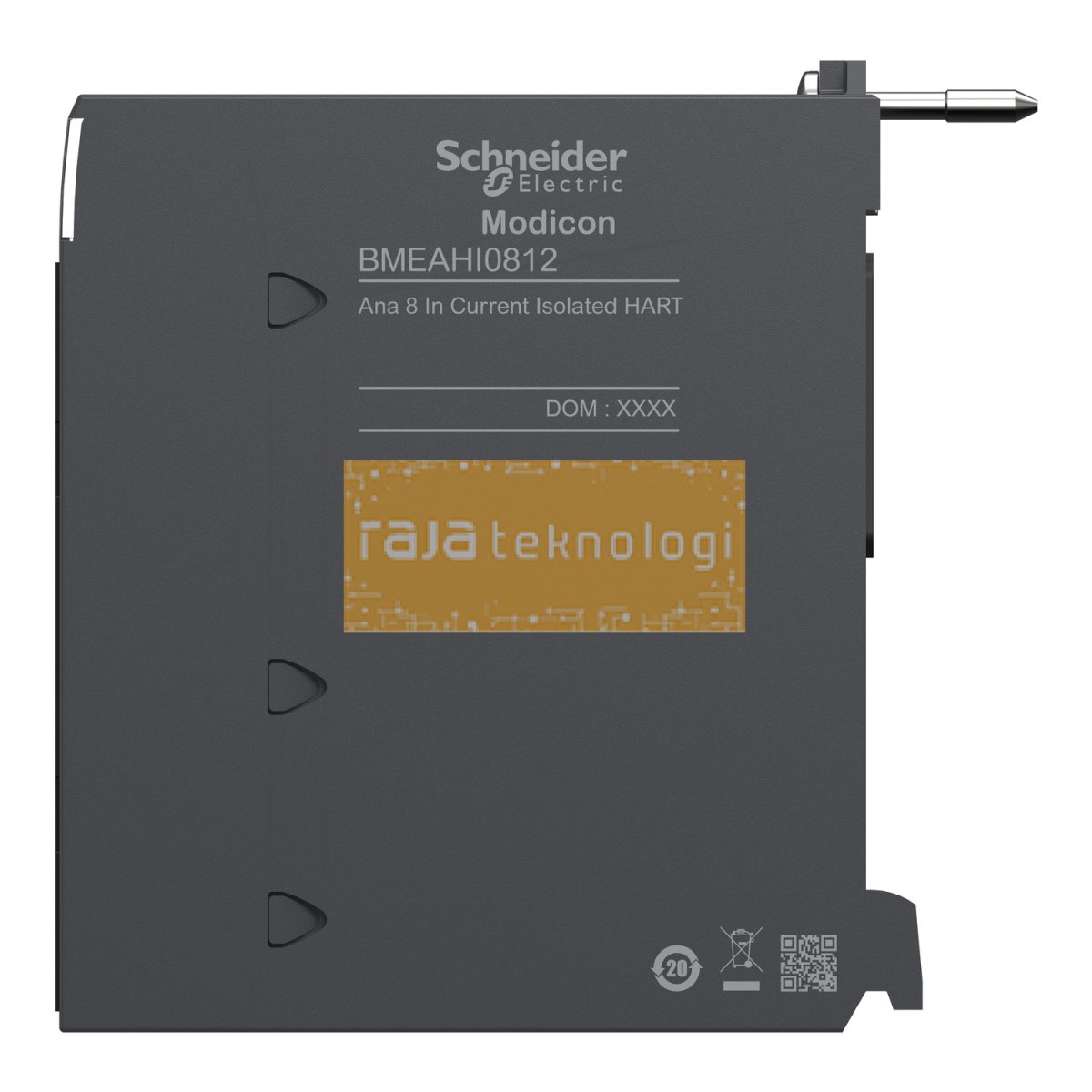

BMEAHI0812 - Analog input module X80 - 8 inputs HART - current Isolated
| Kode Produk | BMEAHI0812 |
| Brand | Schneider |
| Kategori | PLC & I/O Module |
Pengiriman ke seluruh Indonesia via ekspedisi terpercaya
Deskripsi
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This analogue input module has 8 inputs with 15bit + sign input resolution. It is an input module with a current of 4mA to 20mA input type with I/O mapping function. This product is robust, high quality and based on the latest innovative technology. It is furnished with Telefast and 20-way terminal block for electrical connection. It weighs 0.233kg. It is suitable for medium to large process applications. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This product is compatible with BMEP58xxx processor, BMXFTB20xxx terminal block, ABE7CPA31, BMEXBPxxx backplane, ABE7CPA02, ABE7CPA03, BMECRA31210 head module. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Spesifikasi
| Range of product | Modicon X80 |
|---|---|
| Product or component type | Analog input module |
| Application specific I/O | HART |
|---|---|
| Product compatibility | BMEP58... processor BMXFTB20... terminal block ABE7CPA31 BMEXBP... backplane ABE7CPA02 ABE7CPA03 Head module BMECRA31210 |
| Electrical connection | 20 ways terminal block Telefast |
| Isolation between channels | Isolated |
| Analogue input number | 8 |
| Analogue input type | Current 4...20 mA |
| Analogue input resolution | 15 bits + sign |
| Input impedance | 250 Ohm internally protective resistor (3.6 to 50 Ohm) |
| Measurement error | 0.15 % of full scale 25 °C <= 0.3 % of full scale 0...60 °C |
| Temperature drift | 50 ppm/°C |
| Isolation voltage | 1000 V DC for 60 s between channels 1400 V DC for 60 s between channels and ground 1400 V DC for 60 s between channels and bus |
| Checks | Broken wire detection |
| Topology | Point-to-point |
| Function available | I/O mapping |
| Net weight | 0.233 kg |
