Schneider

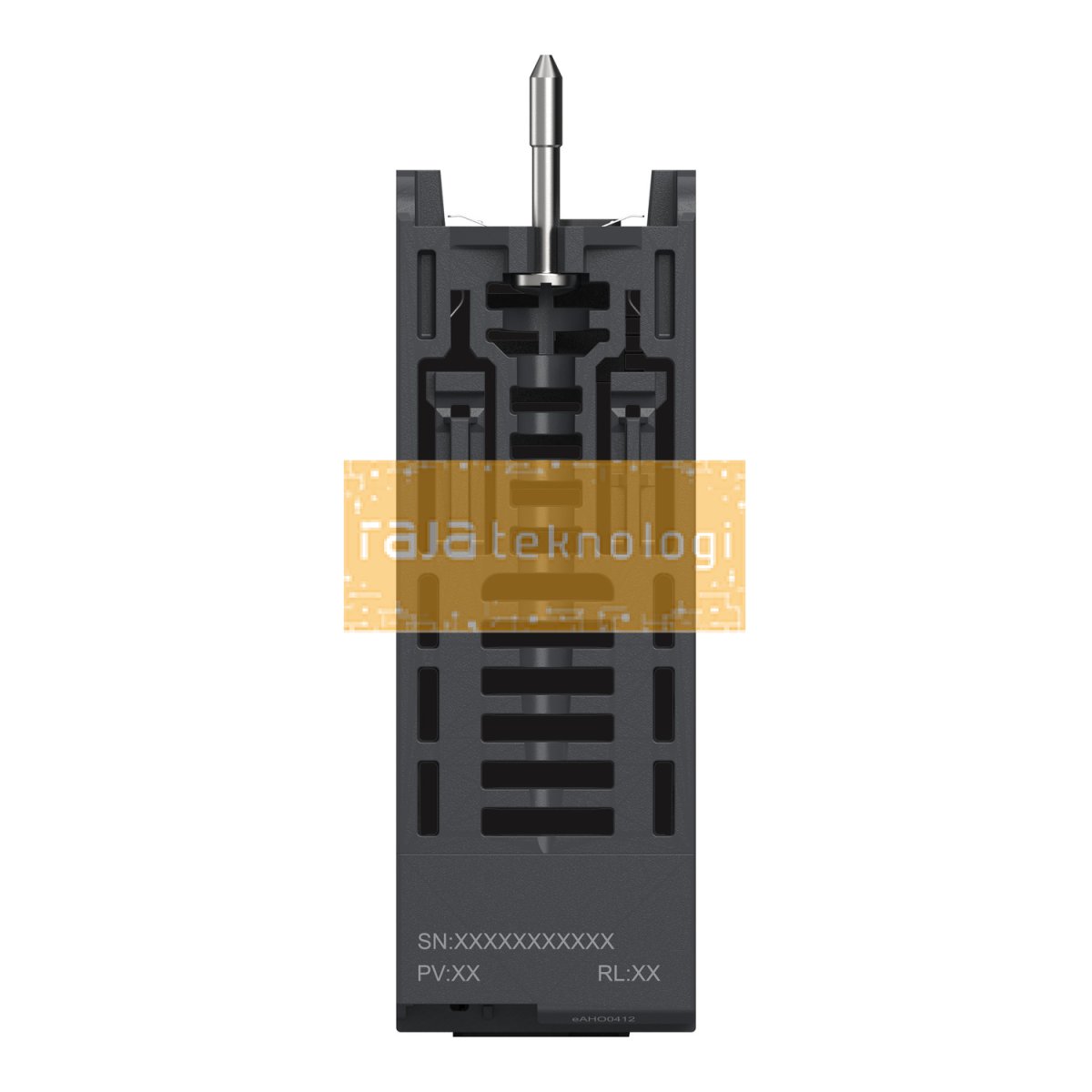

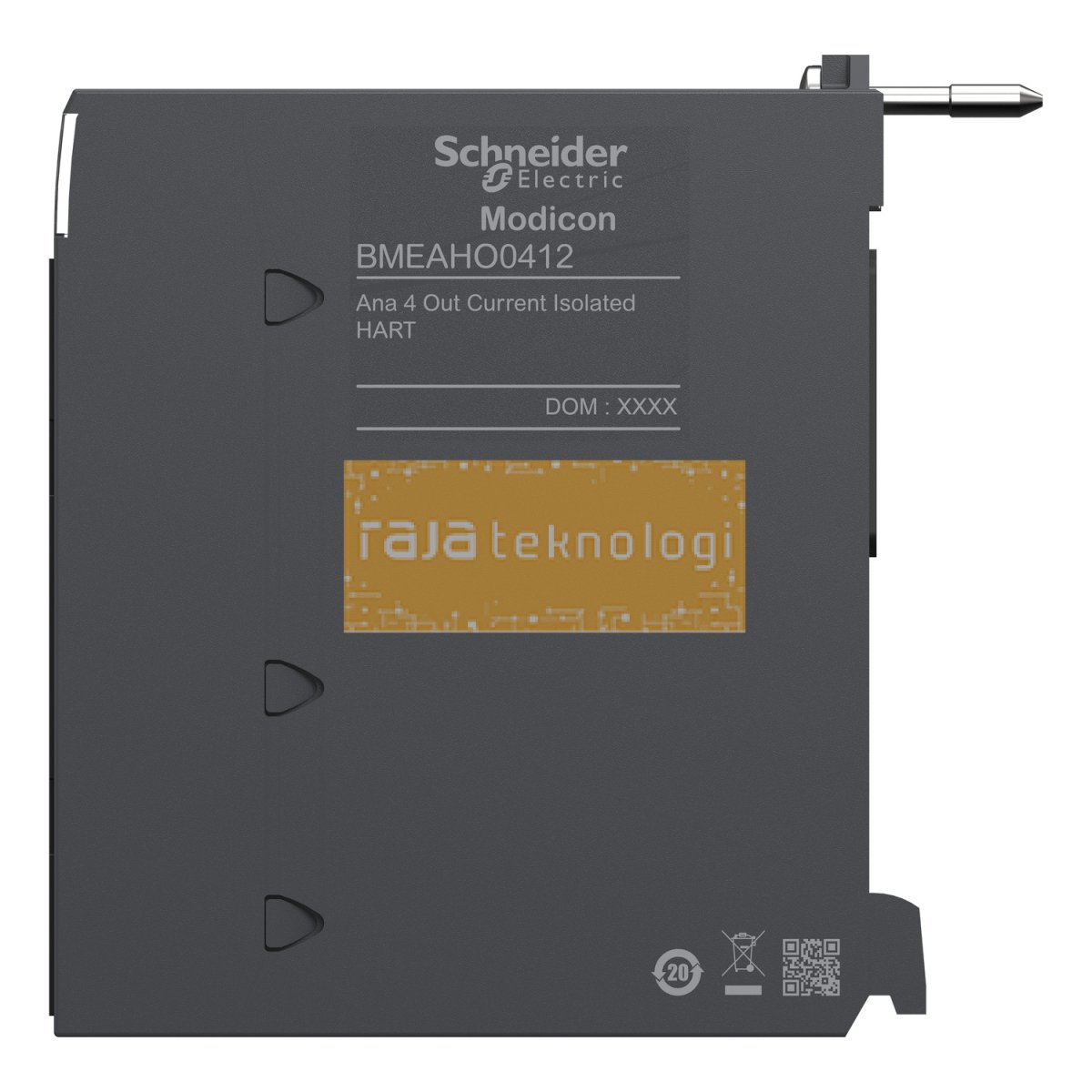

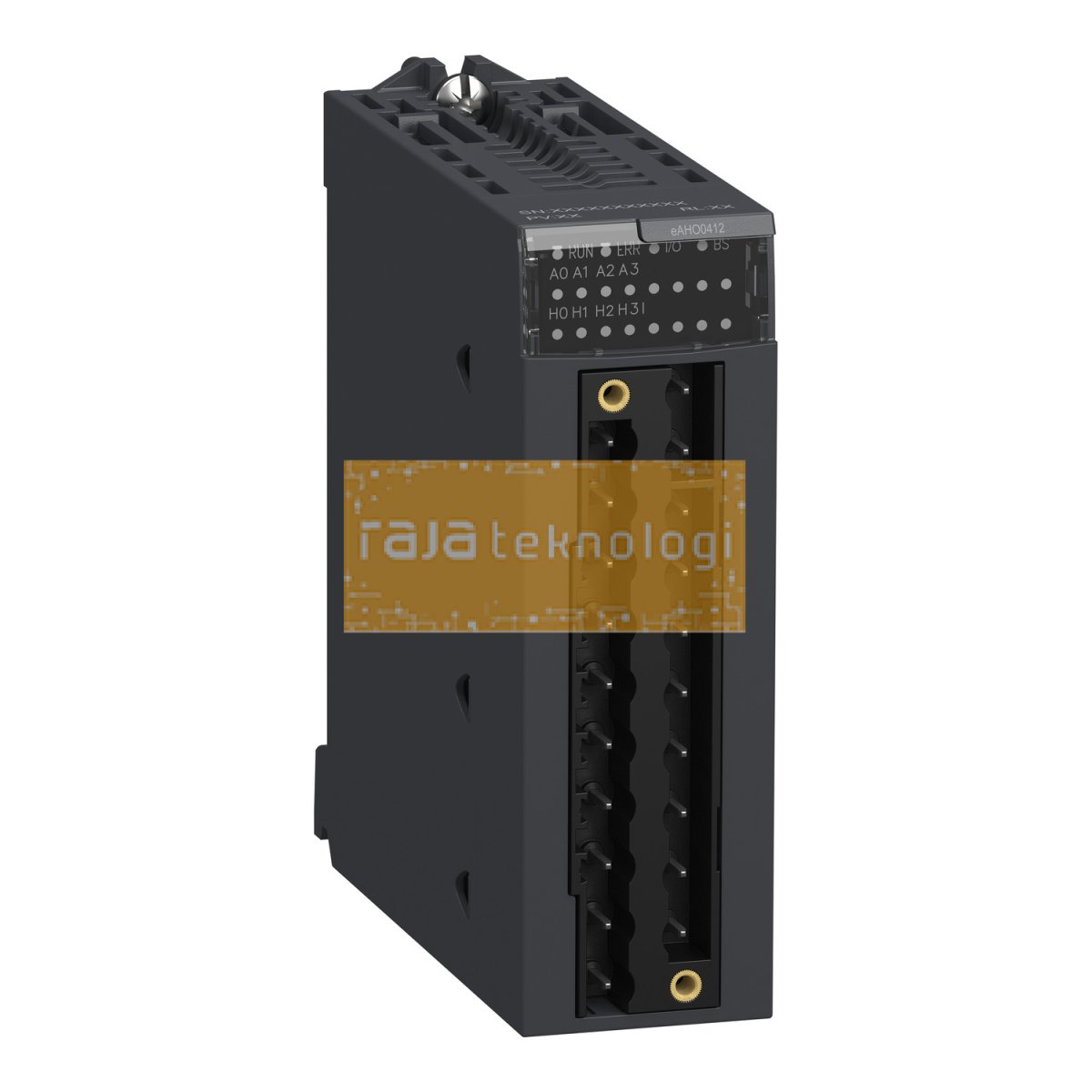

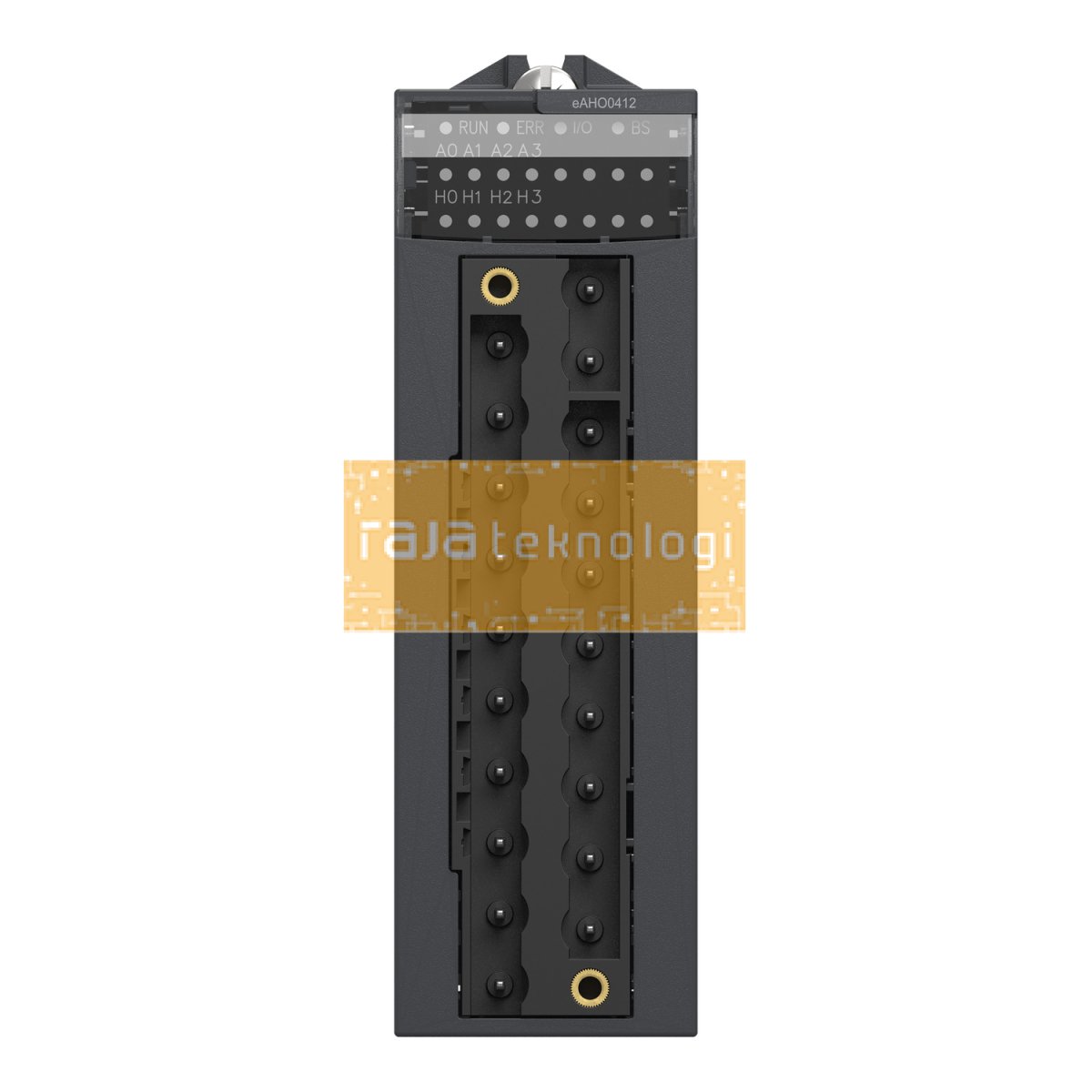

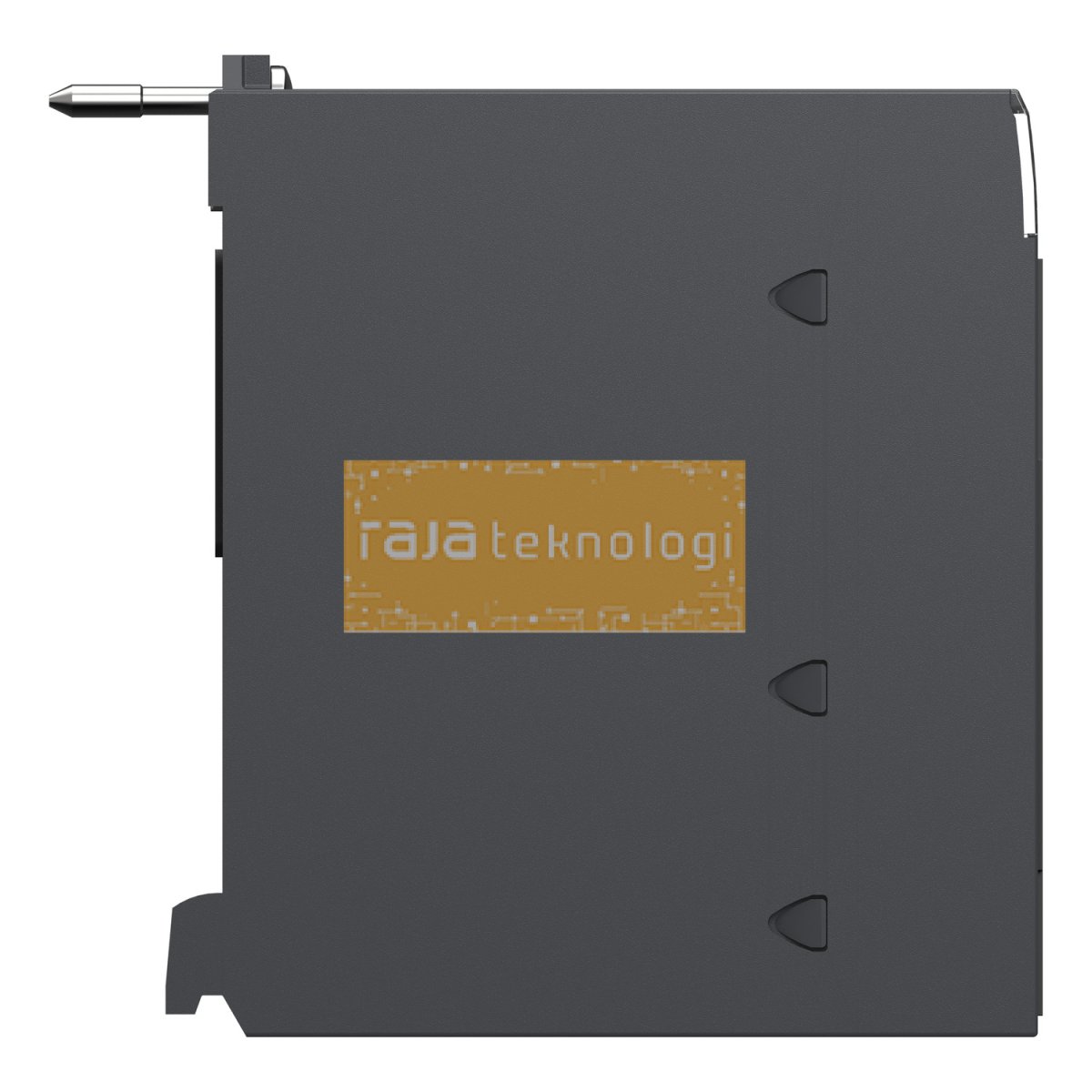

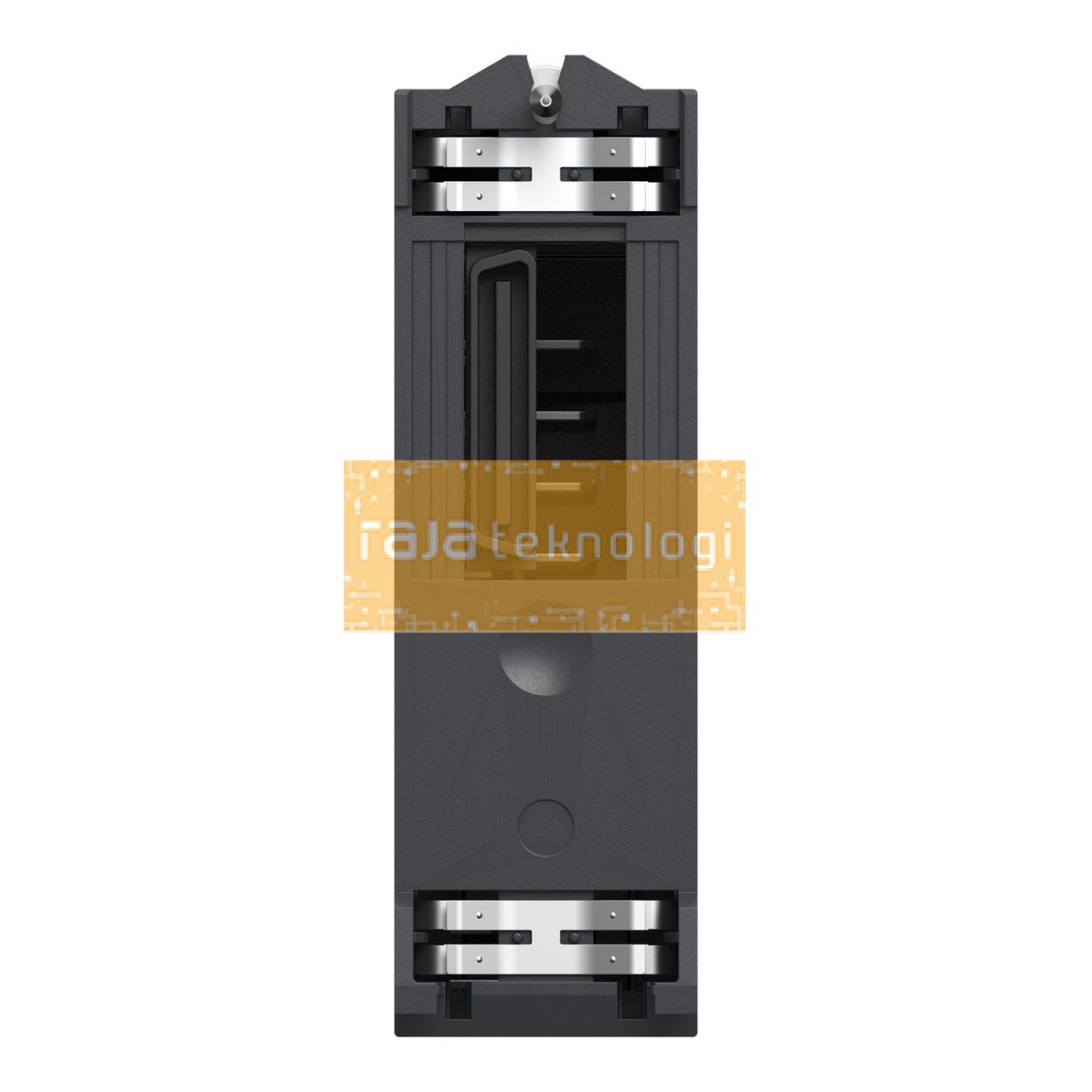

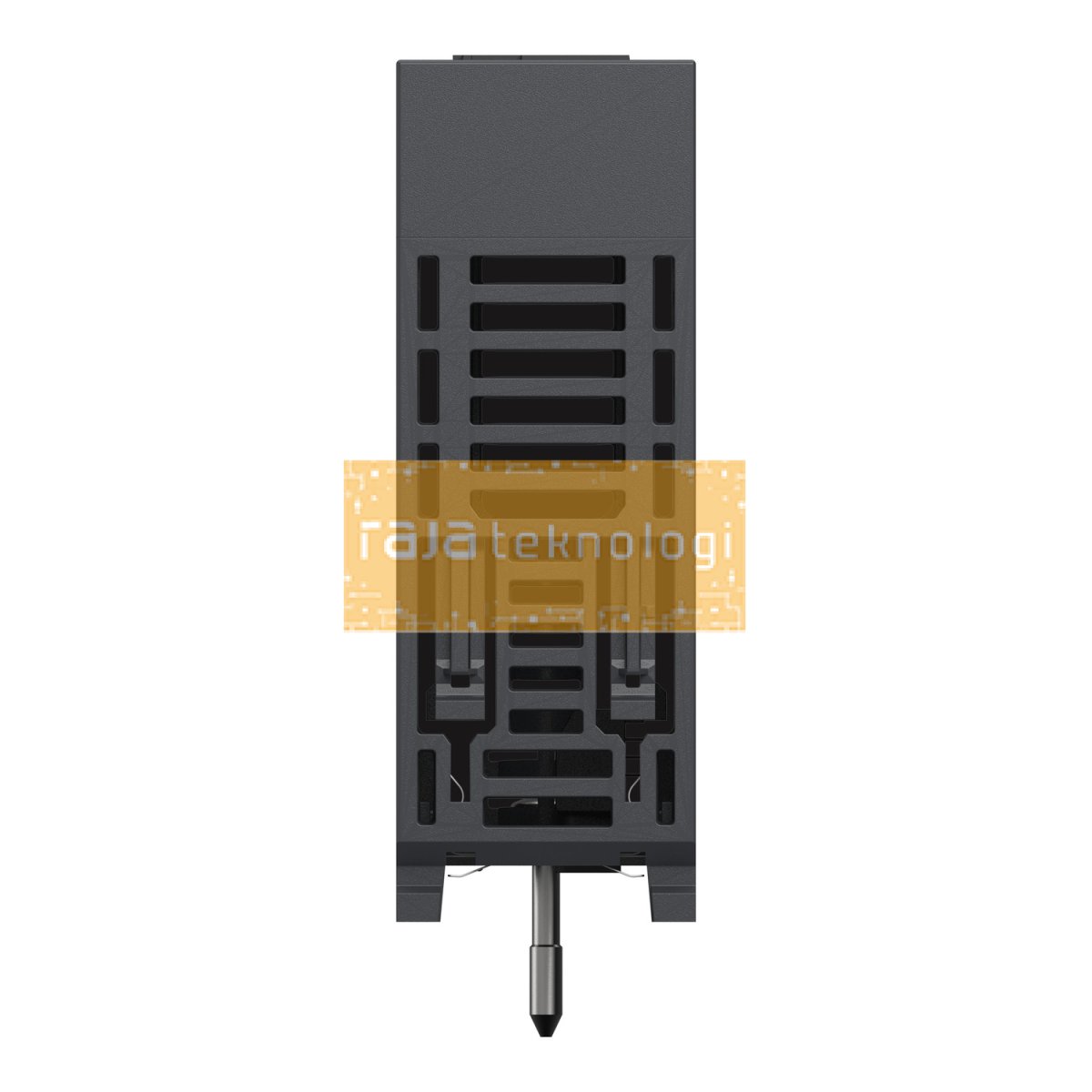

BMEAHO0412 - Analog ouput module X80 - 4 outputs HART - current Isolated
| Kode Produk | BMEAHO0412 |
| Brand | Schneider |
| Kategori | PLC & I/O Module |
Pengiriman ke seluruh Indonesia via ekspedisi terpercaya
Deskripsi
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This analogue output module has 4 outputs with 15bit + sign resolution. This product is robust, high quality and based on the latest innovative technology. It is furnished with 20-way terminal block, Telefast for electrical connection. It weighs 0.223kg. It is suitable for medium to large process applications. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This module is compatible with BMEP58xxx processor, BMEXBPxxx backplane, ABE7CPA21, head module BMECRA31210, BMXFTB20xxx terminal block. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Spesifikasi
| Range of product | Modicon X80 |
|---|---|
| Product or component type | Analog output module |
| Application specific I/O | HART |
|---|---|
| Product compatibility | BMEP58... processor BMEXBP... backplane ABE7CPA21 Head module BMECRA31210 BMXFTB20... terminal block |
| Electrical connection | 20 ways terminal block Telefast |
| Isolation between channels | Isolated |
| Measurement error | 0.1 % of full scale 25 °C 0.2 % of full scale 0...60 °C |
| Temperature drift | 45 ppm/°C |
| Isolation voltage | 1000 V DC for 60 s between channels 1400 V DC for 60 s between channels and ground 1400 V DC for 60 s between channels and bus |
| Checks | Broken wire detection |
| Load impedance ohmic | 600 Ohm 0...20 mA 570 Ohm 0...21 mA |
| Analogue output number | 4 |
| Analogue output type | Current: 4...20 mA |
| Analogue output resolution | 15 bits + sign |
| Topology | Point-to-point |
| Function available | I/O mapping |
| Net weight | 0.223 kg |
