Schneider

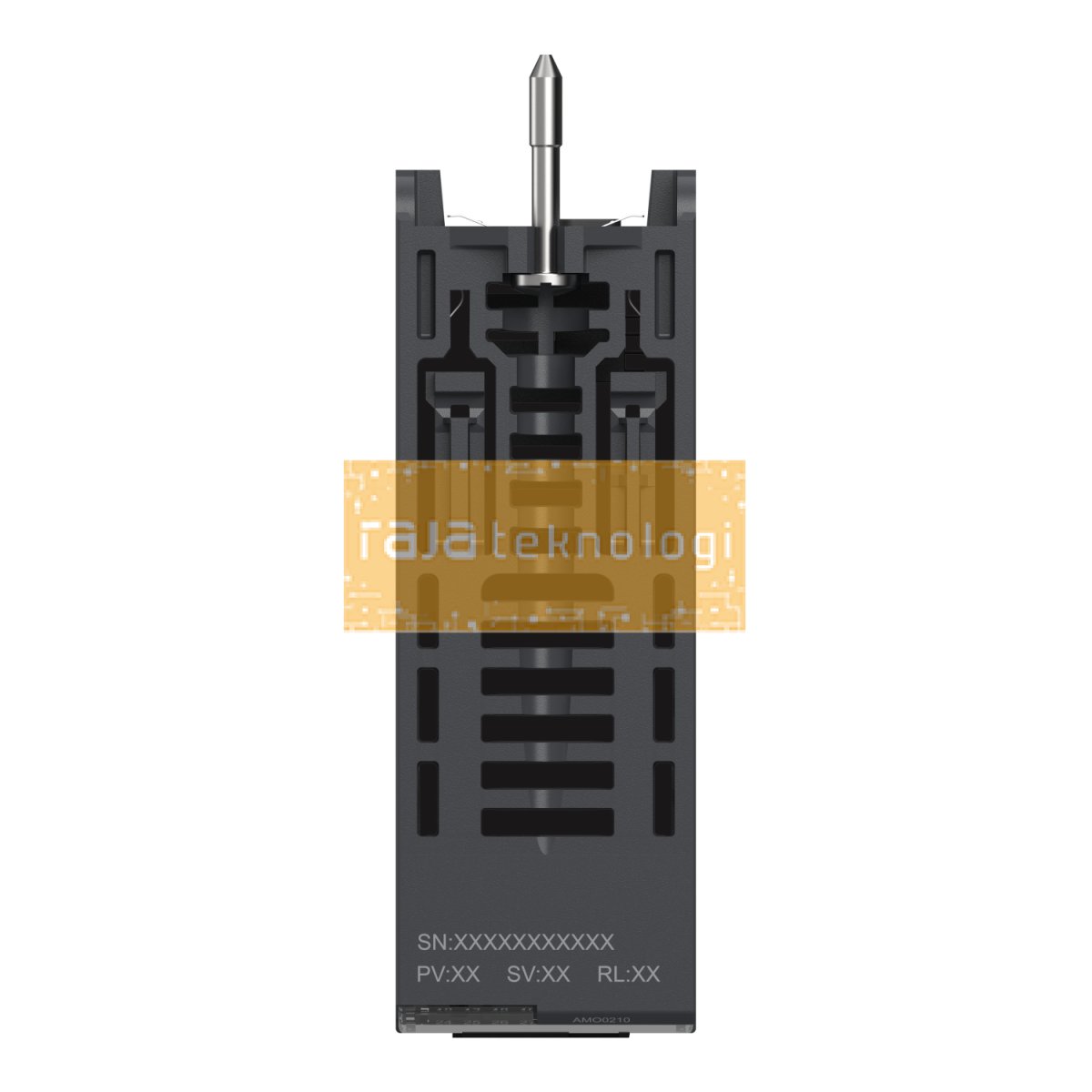

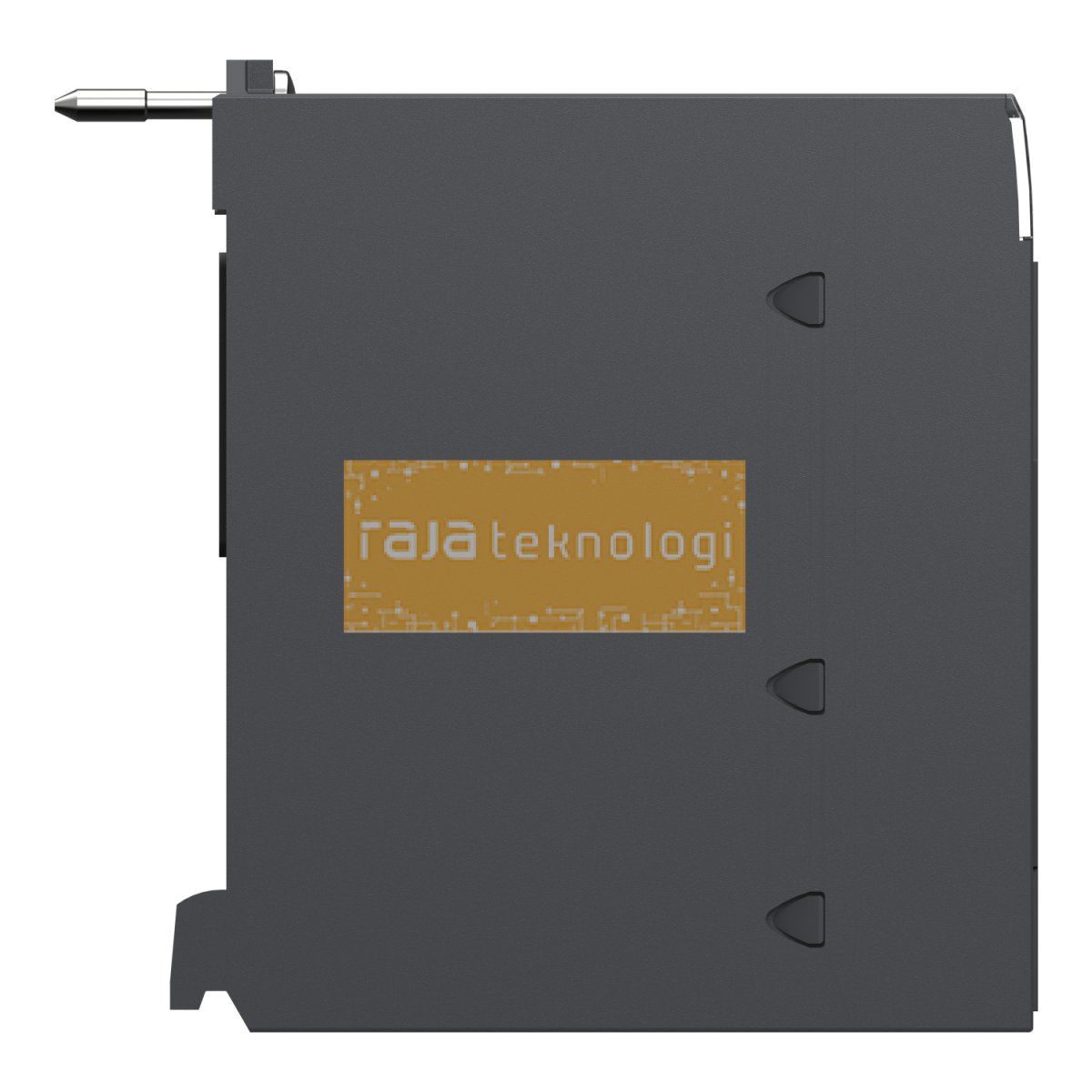

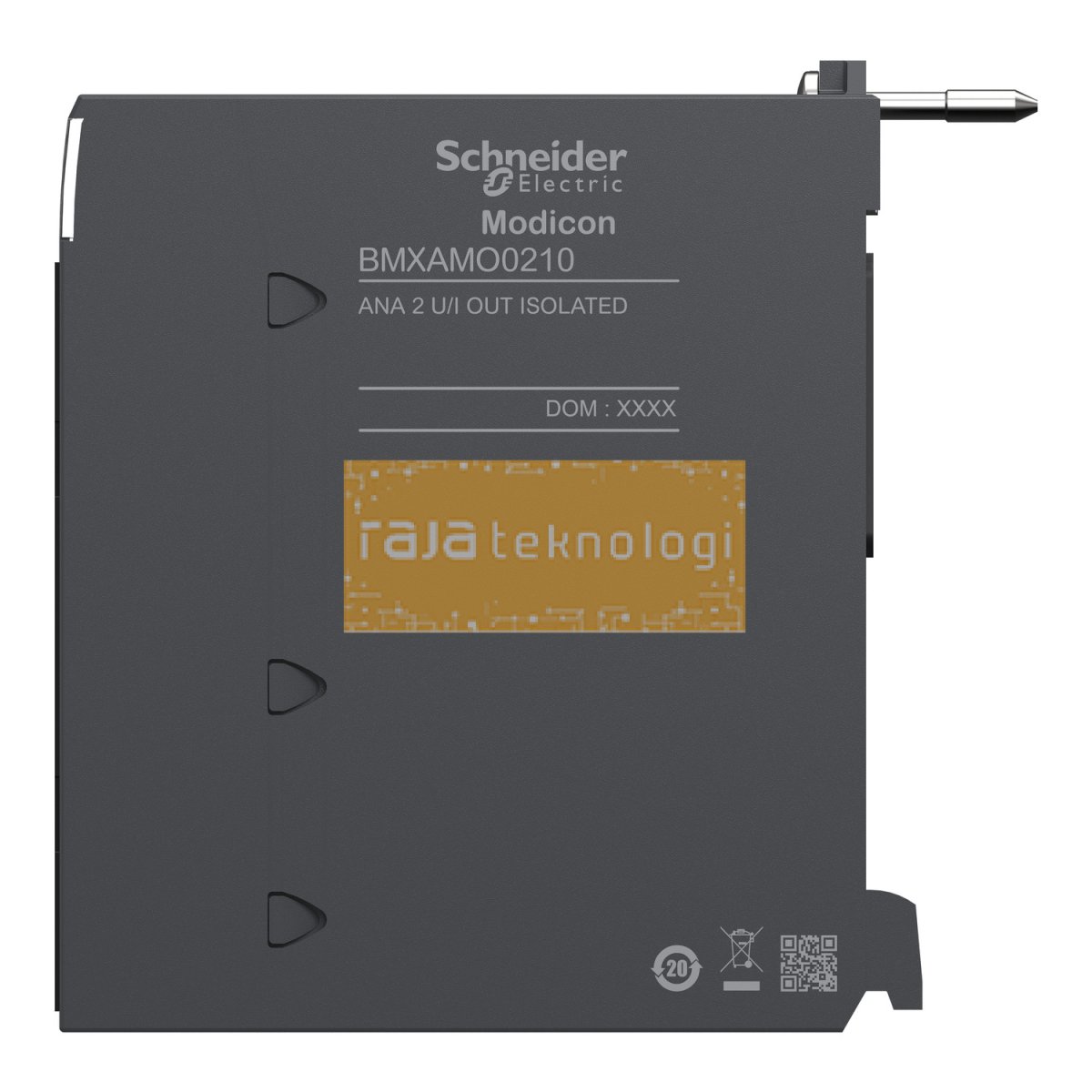

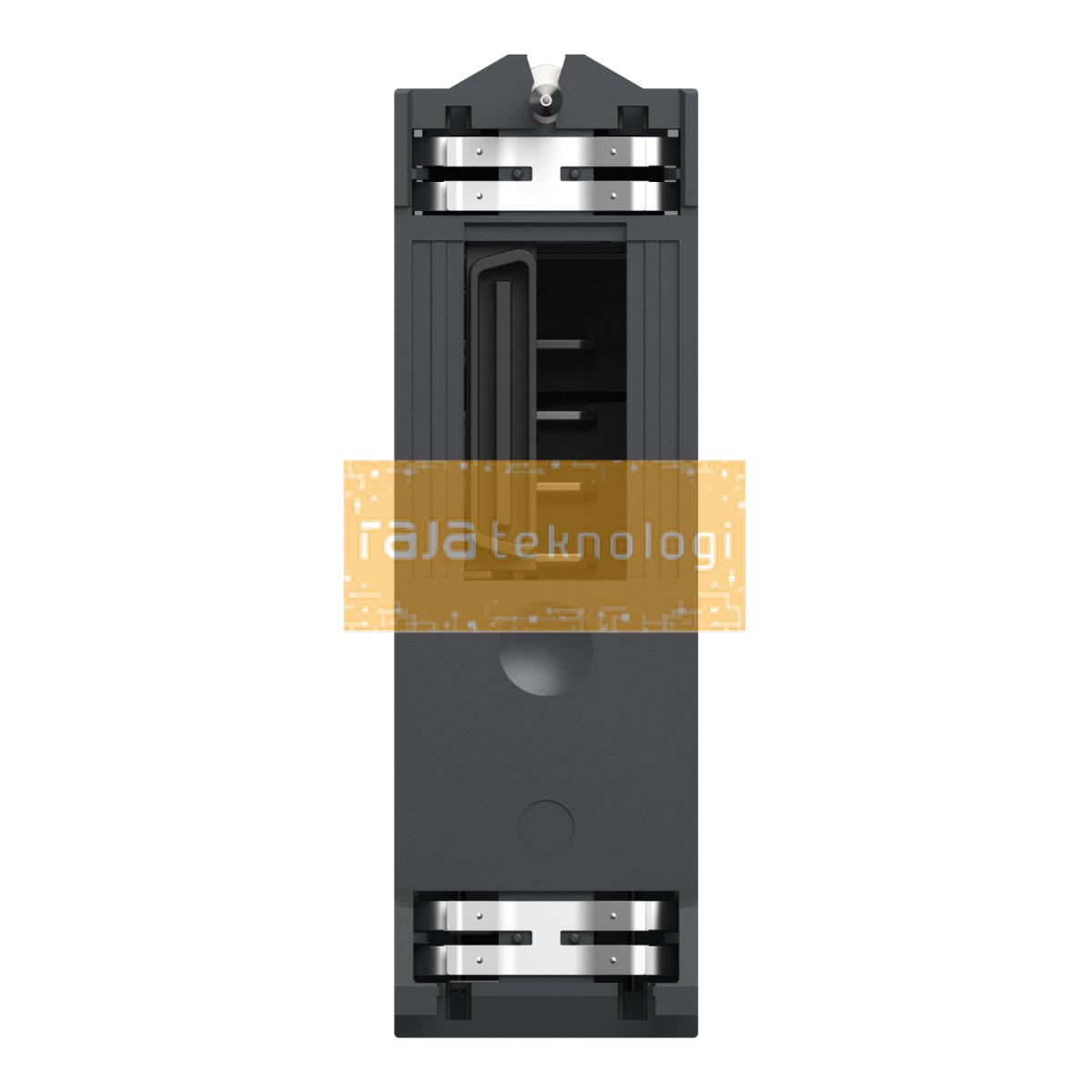

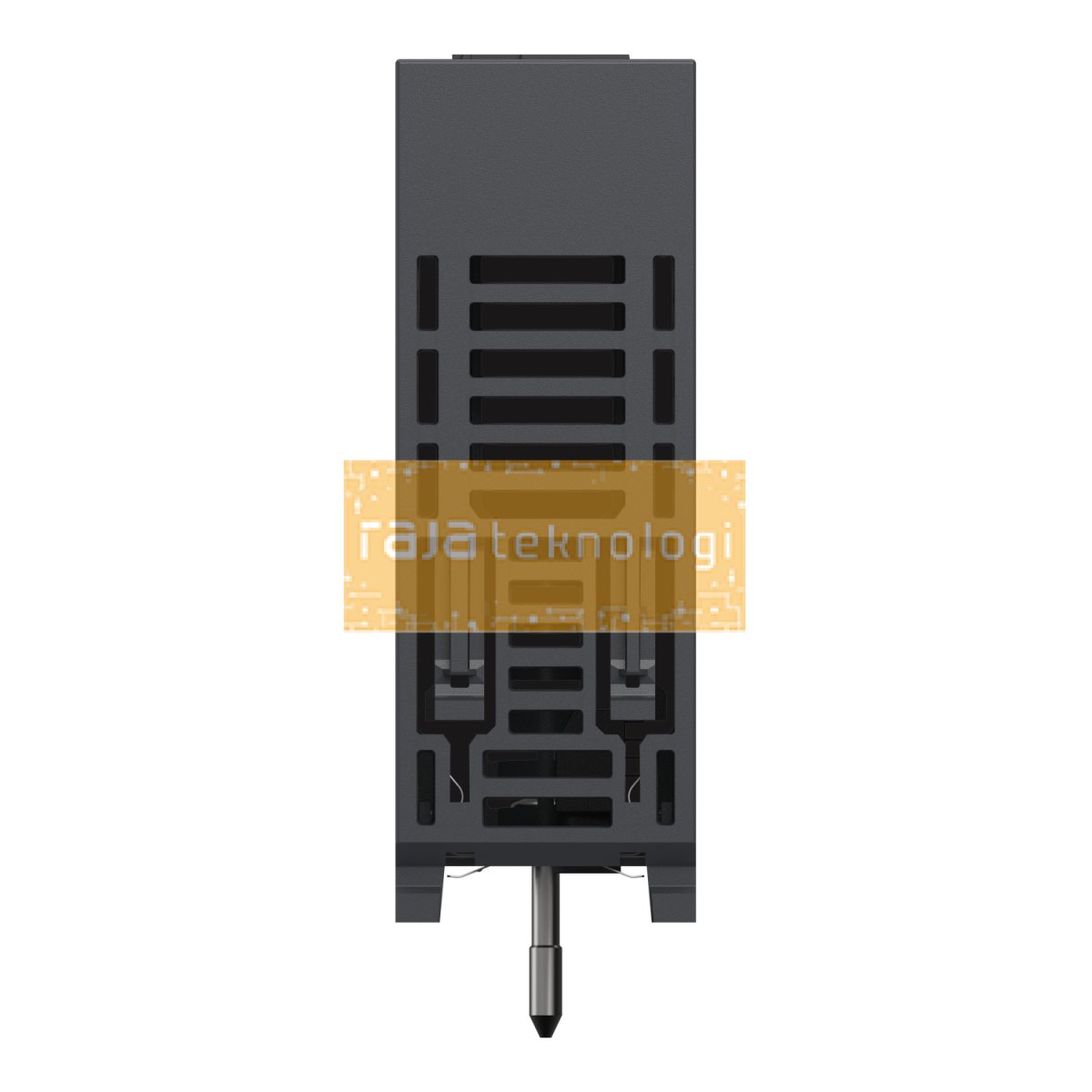

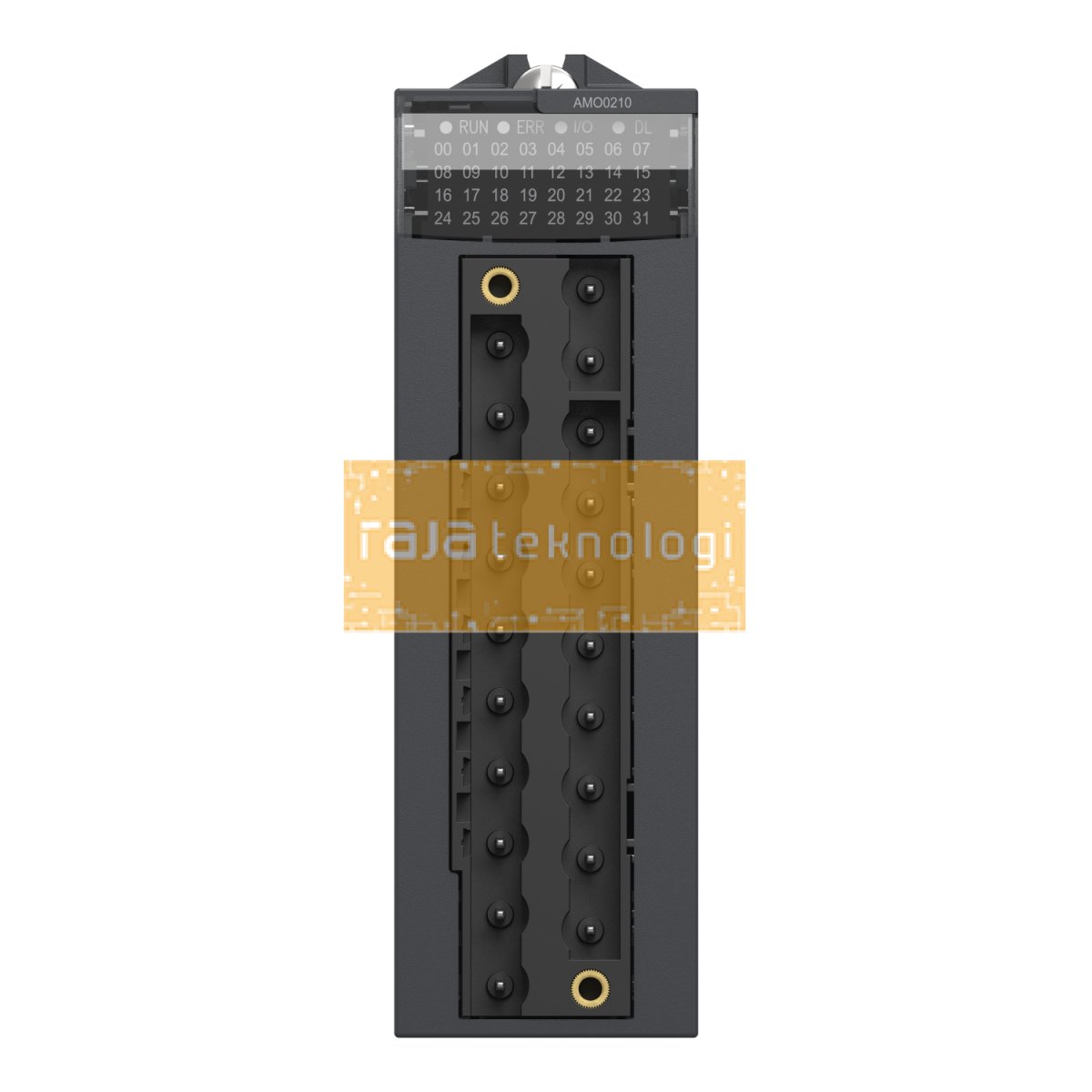

BMXAMO0210 - Analog output module M340 - 2 outputs
| Kode Produk | BMXAMO0210 |
| Brand | Schneider |
| Kategori | PLC & I/O Module |
Pengiriman ke seluruh Indonesia via ekspedisi terpercaya
Deskripsi
This analog output module is part of the Modicon X80 modules. It has 2 isolated high level outputs (15 bits + sign). It offers different ranges of voltage or current for each of the outputs depending on configuration choice. It occupies a single slot on the rack and it has a case which provides IP 20 protection of the electronics.
Spesifikasi
| Range of product | Modicon X80 |
|---|---|
| Product or component type | Analog output module |
| Electrical connection | 20 ways 1 connector |
| Isolation between channels | Isolated |
| Measurement error | <= 0.2 % of full scale 0...60 °C 0.1 % of full scale 25 °C |
|---|---|
| Temperature drift | 30 ppm/°C |
| Recalibration | Factory calibrated |
| Minimum crosstalk attenuation | 90 dB |
| Common mode rejection | 100 dB |
| Isolation voltage | 1400 V DC between channels and ground 1400 V DC between channels and bus 750 V DC between channels |
| Detection type | Open circuit 0...20 mA Open circuit 4...20 mA Short circuit +/- 10 V |
| Load impedance ohmic | <= 600 Ohm 0...20 mA <= 600 Ohm 4...20 mA >= 1000 Ohm +/- 10 V |
| Output level | High level |
| Analogue output number | 2 |
| Analogue output type | Current: 0...20 mA Current: 4...20 mA Voltage: +/- 10 V |
| Analogue output resolution | 15 bits + sign |
| Supply | Internal power supply via rack |
| Conversion time | <= 1 ms |
| Maximum conversion value | +/- 11.25 V +/- 10 V 0...24 mA 0...20 mA 0...24 mA 4...20 mA |
| Fallback mode | Predefined Configurable |
| MTBF reliability | 1300000 H |
| Operating altitude | 0...2000 m 2000...5000 m with derating factor |
| Status LED | 1 LED (green) RUN 1 LED per channel (green) channel diagnostic 1 LED (red) ERR 1 LED (red) I/O |
| Net weight | 0.144 kg |
| Power consumption in W | 2.1 W 24 V DC typical 2.8 W 24 V DC maximum 0.35 W 3.3 V DC typical 0.48 W 3.3 V DC maximum |
| Current consumption | 150 mA at 3.3 V DC 110 mA at 24 V DC |
