Schneider

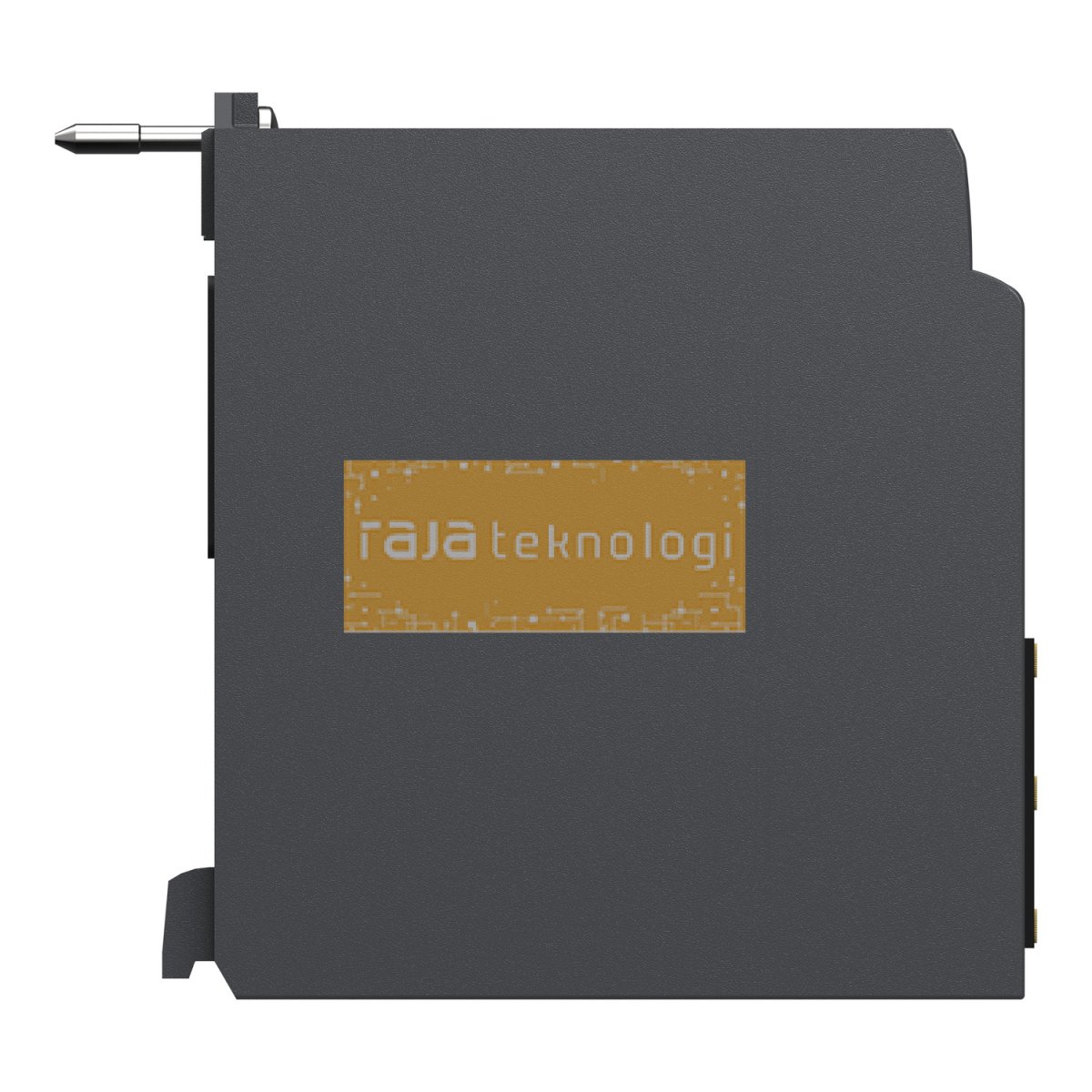

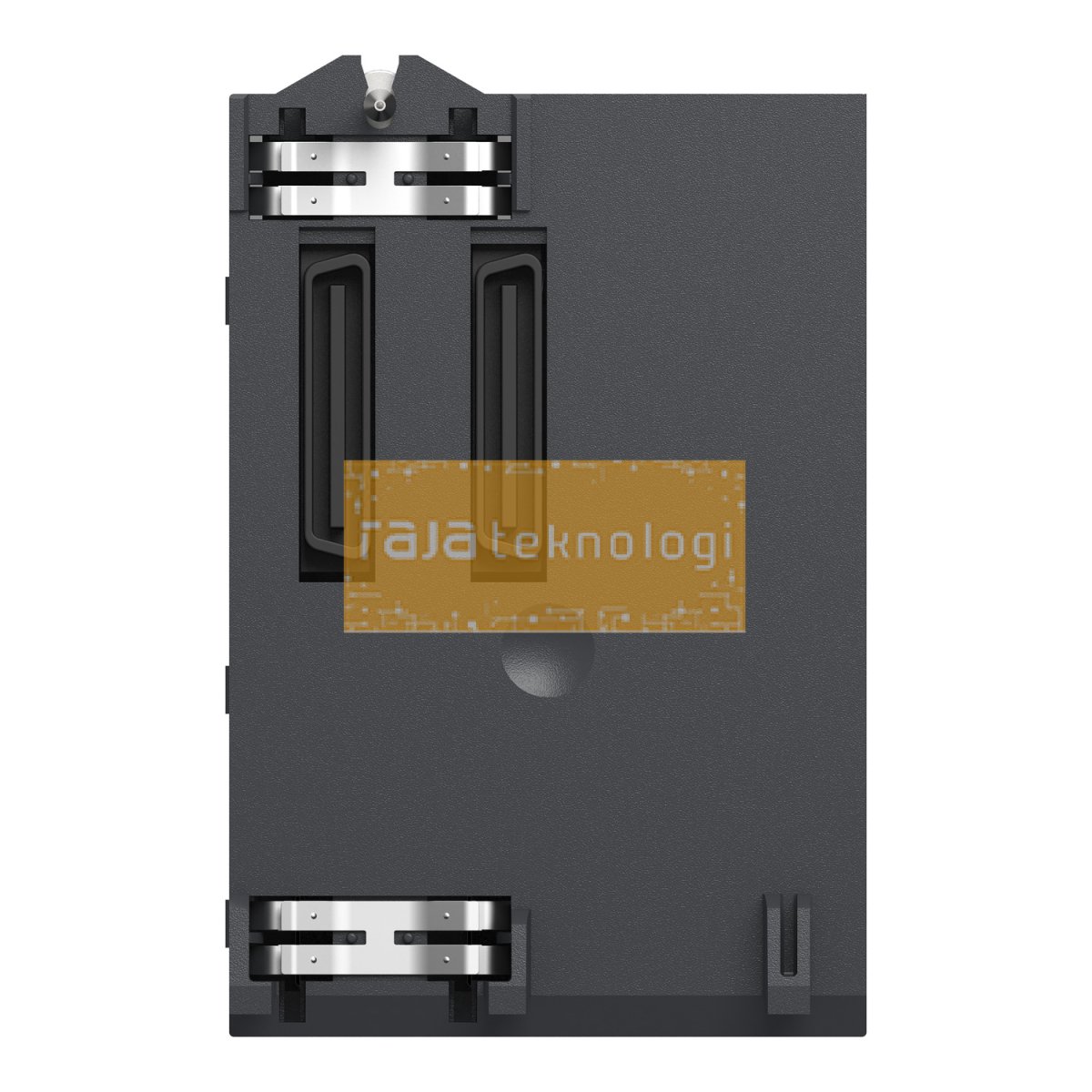

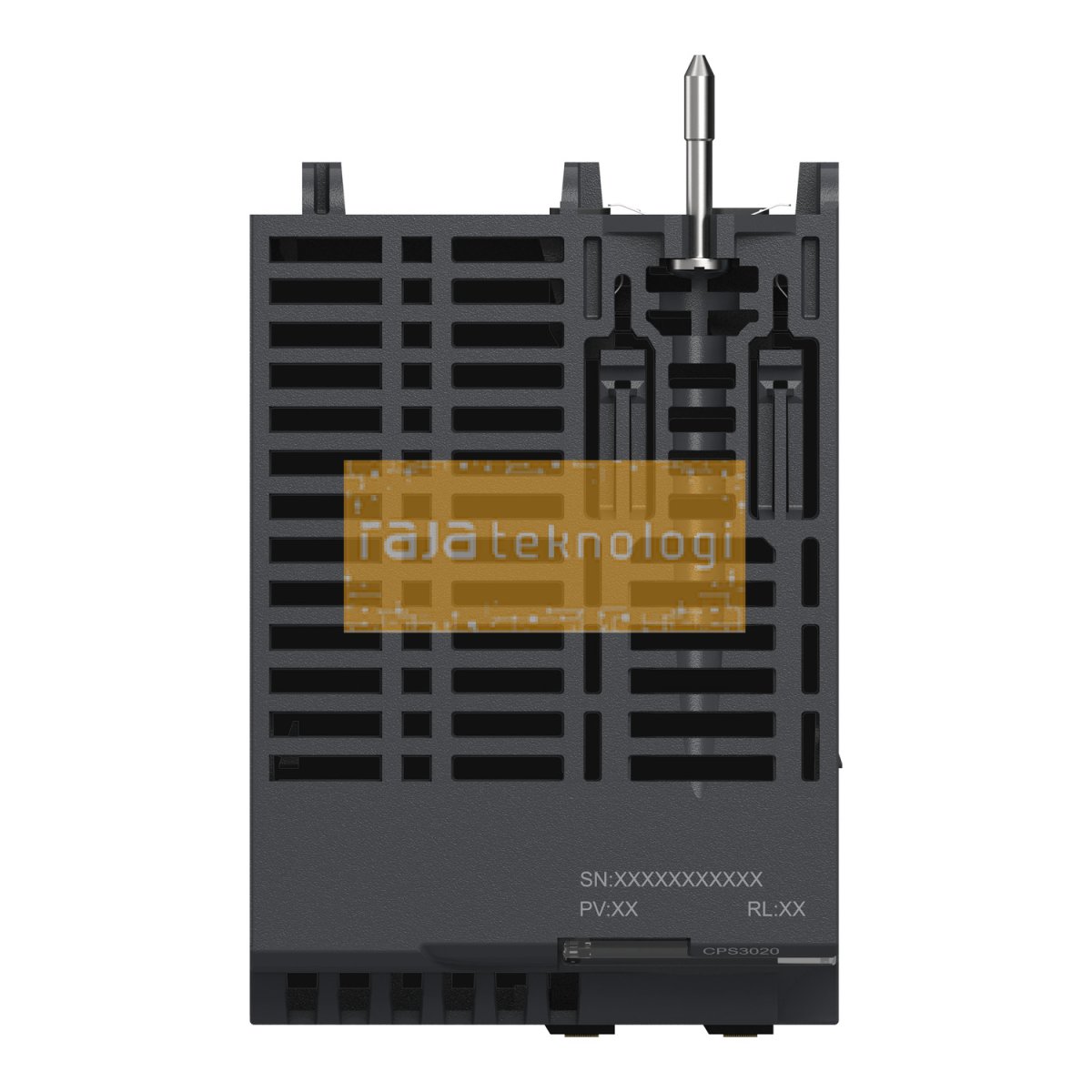

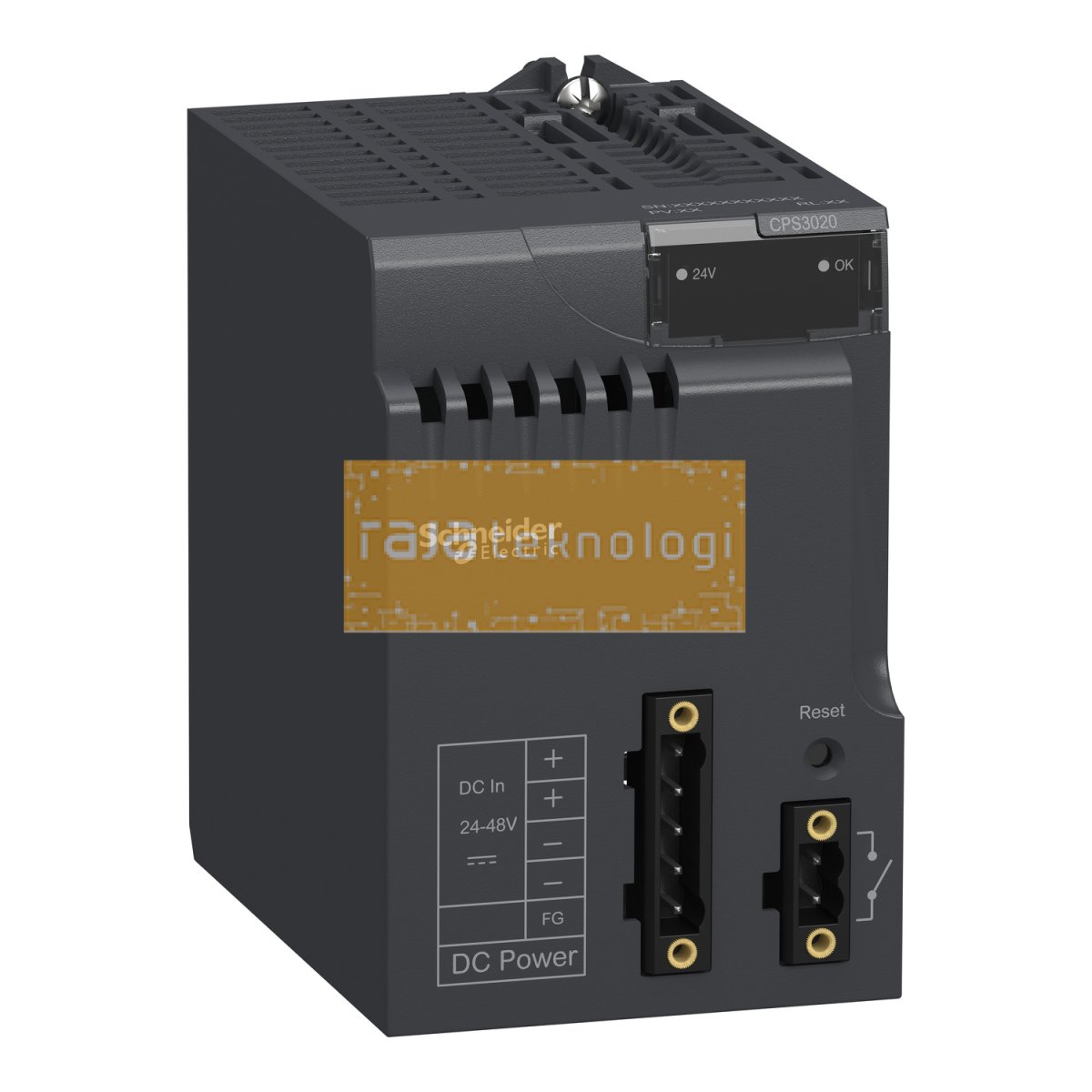

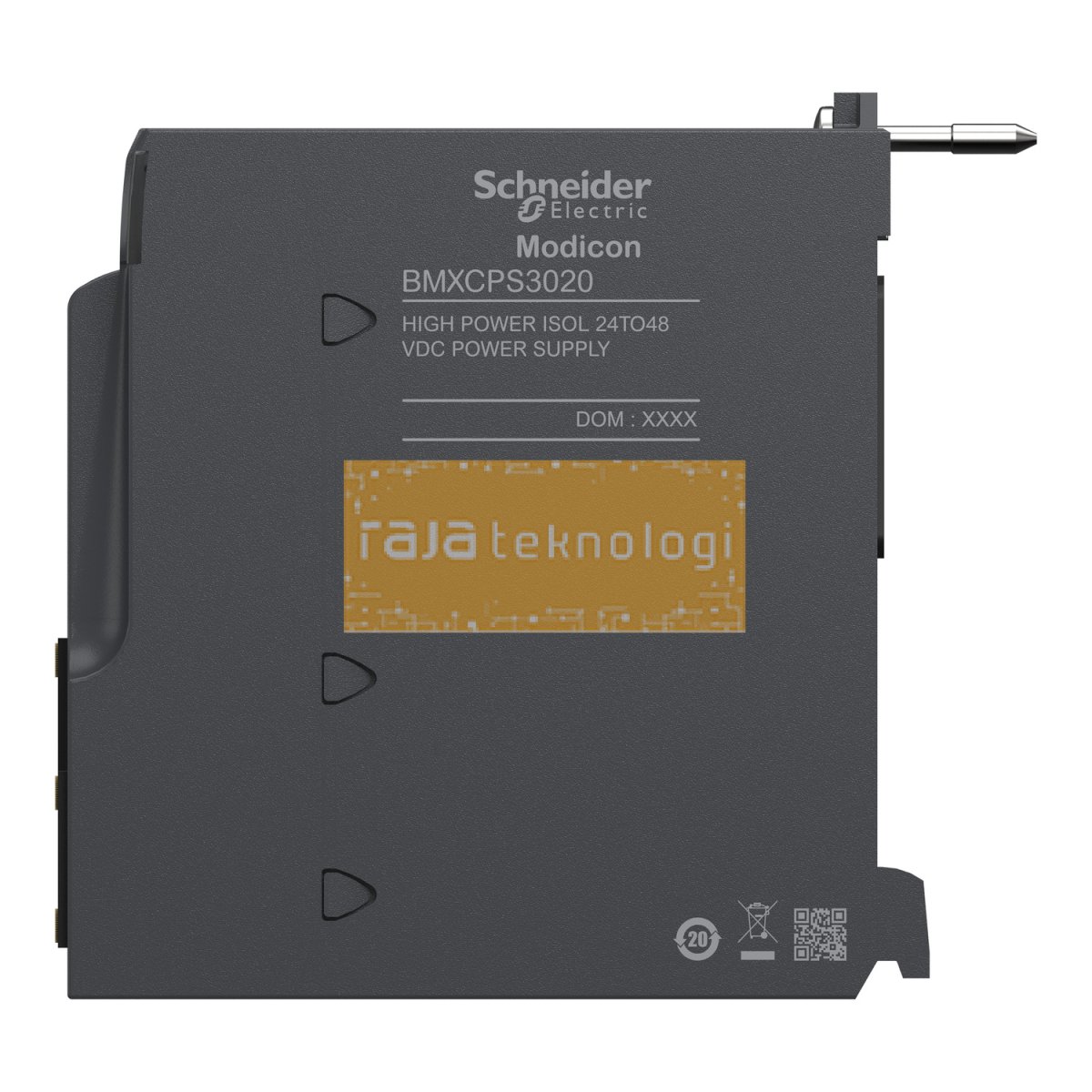

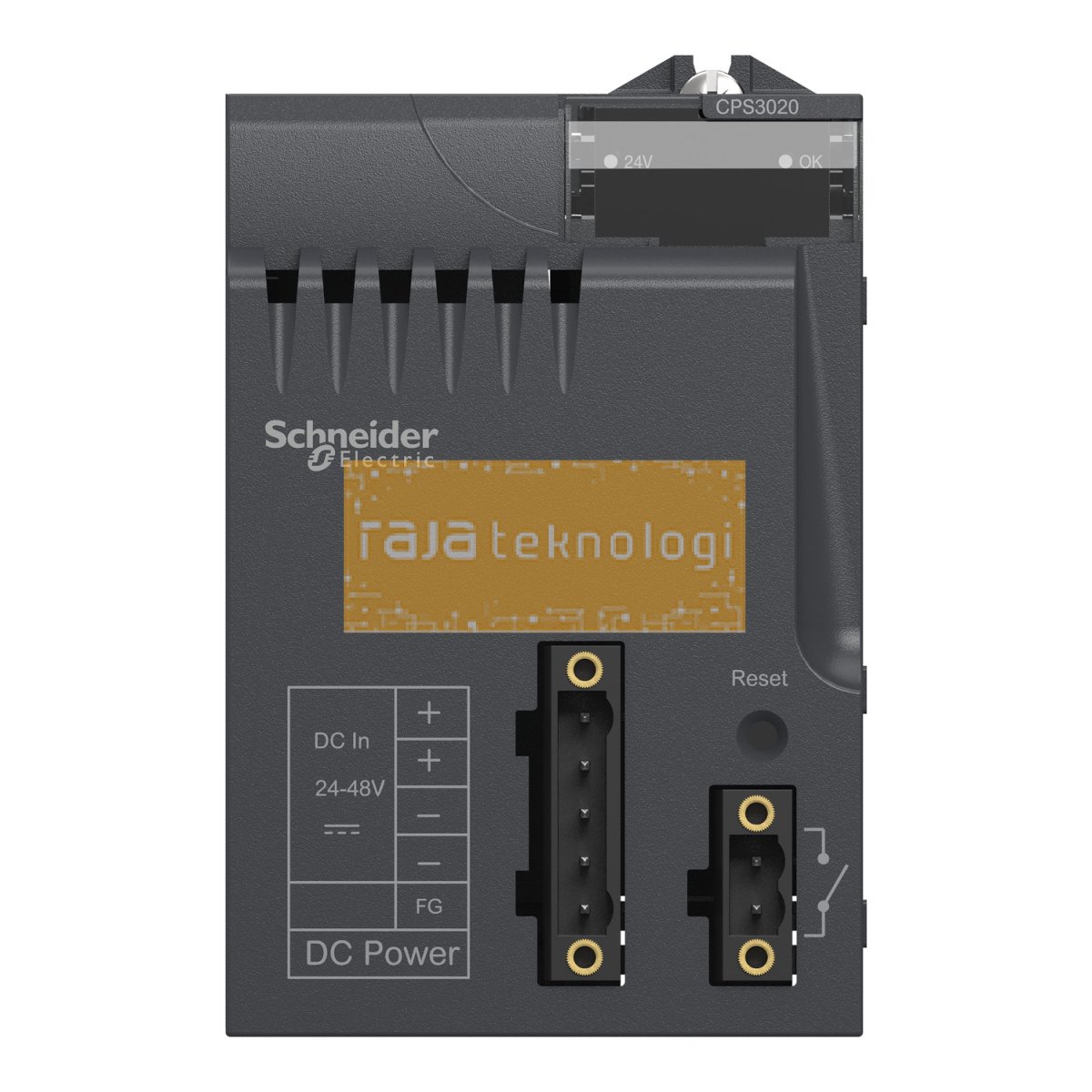

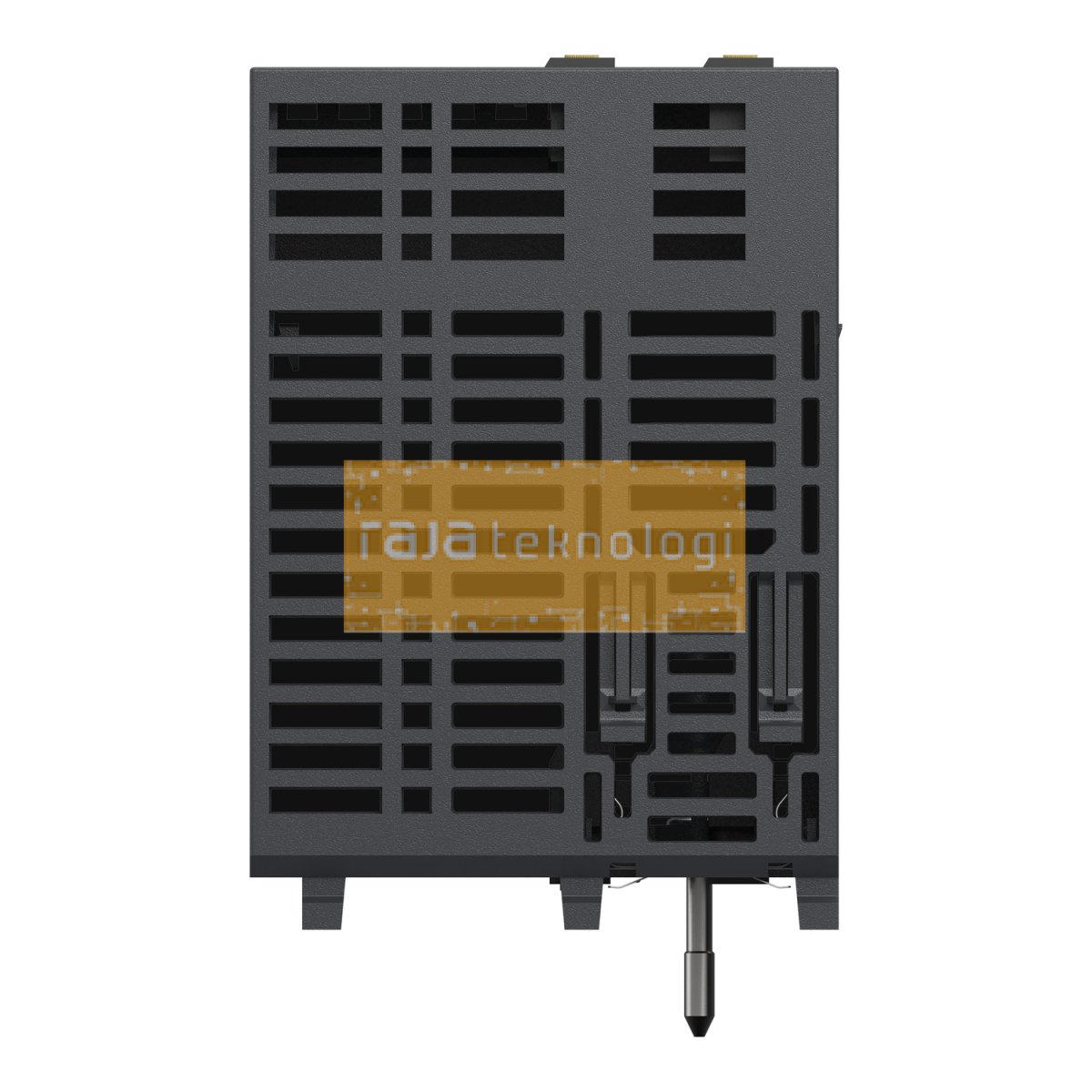

BMXCPS3020 - Power supply module X80 - 24..48 V DC - 31.2 W
| Kode Produk | BMXCPS3020 |
| Brand | Schneider |
| Kategori | PLC & I/O Module |
Pengiriman ke seluruh Indonesia via ekspedisi terpercaya
Deskripsi
This power module is part of the Modicon X80 modules. This module provides the power supply for each Modicon X80 I/O rack and the modules installed. It is supplied with 24V to 48V DC isolated. It has a case which provides IP 20 protection of the electronics.
Spesifikasi
| Range of product | Modicon X80 |
|---|---|
| Product or component type | Power supply module |
| backplane compatibility | Not compatible with BMEXBP..02 |
| Primary voltage | 24...48 V isolated |
| Supply circuit type | DC |
| Secondary power | 15 W 3.3 V DC I/O module logic power supply 31.2 W 24 V DC I/O module power supply and processor |
| Primary voltage limit | 18...62.4 V |
|---|---|
| Input current | 0.83 A 48 V 1.65 A 24 V |
| Inrush current | 30 A 24 V 60 A 48 V |
| I²t on activation | 1 A².s 24 V 3 A².s 48 V |
| It on activation | 0.2 A.s 24 V 0.3 A.s 48 V |
| MTBF reliability | 4600000 H |
| Protection type | Internal fuse not accessible for primary circuit Overload protection for secondary circuit, 24 V sensor power supply Overvoltage protection for secondary circuit, 24 V sensor power supply Short-circuit protection for secondary circuit, 24 V sensor power supply |
| Current at secondary voltage | 1.3 A 24 V DC I/O module power supply and processor 4.5 A 3.3 V DC I/O module logic power supply |
| Maximum power dissipation in W | 8.5 W |
| Status LED | 1 LED (green) rack voltage OK |
| Control type | RESET push-button cold restart |
| Electrical connection | 1 connector 2 pin(s)alarm relay 1 connector 5 pin(s)line supply, protective earth |
| Maximum cable distance between devices | 10 m power supply cable copper 1.5 mm² 15 m power supply cable copper 2.5 mm² |
| Insulation resistance | >= 10 MOhm primary/ground >= 10 MOhm primary/secondary |
| Net weight | 0.34 kg |
