Schneider

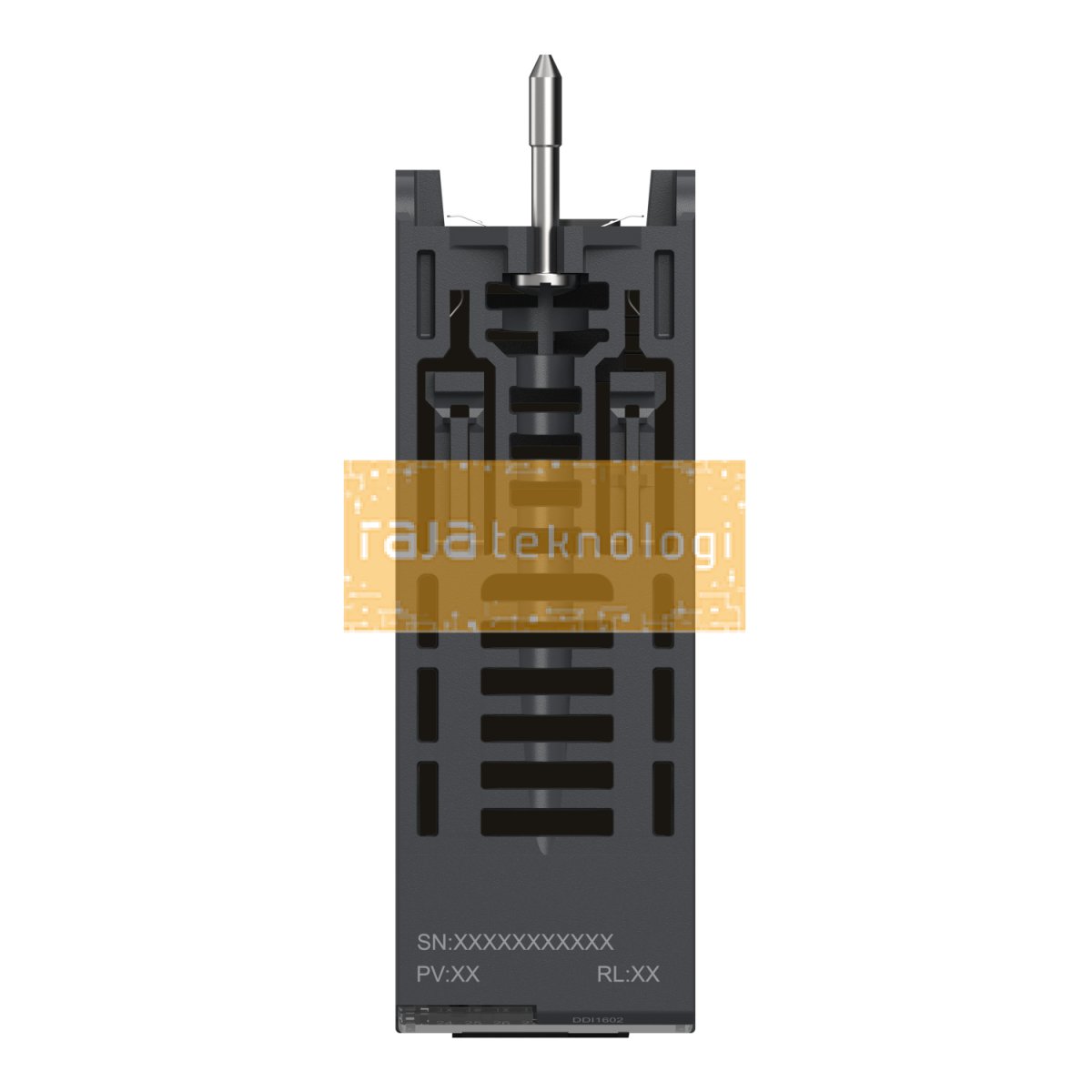

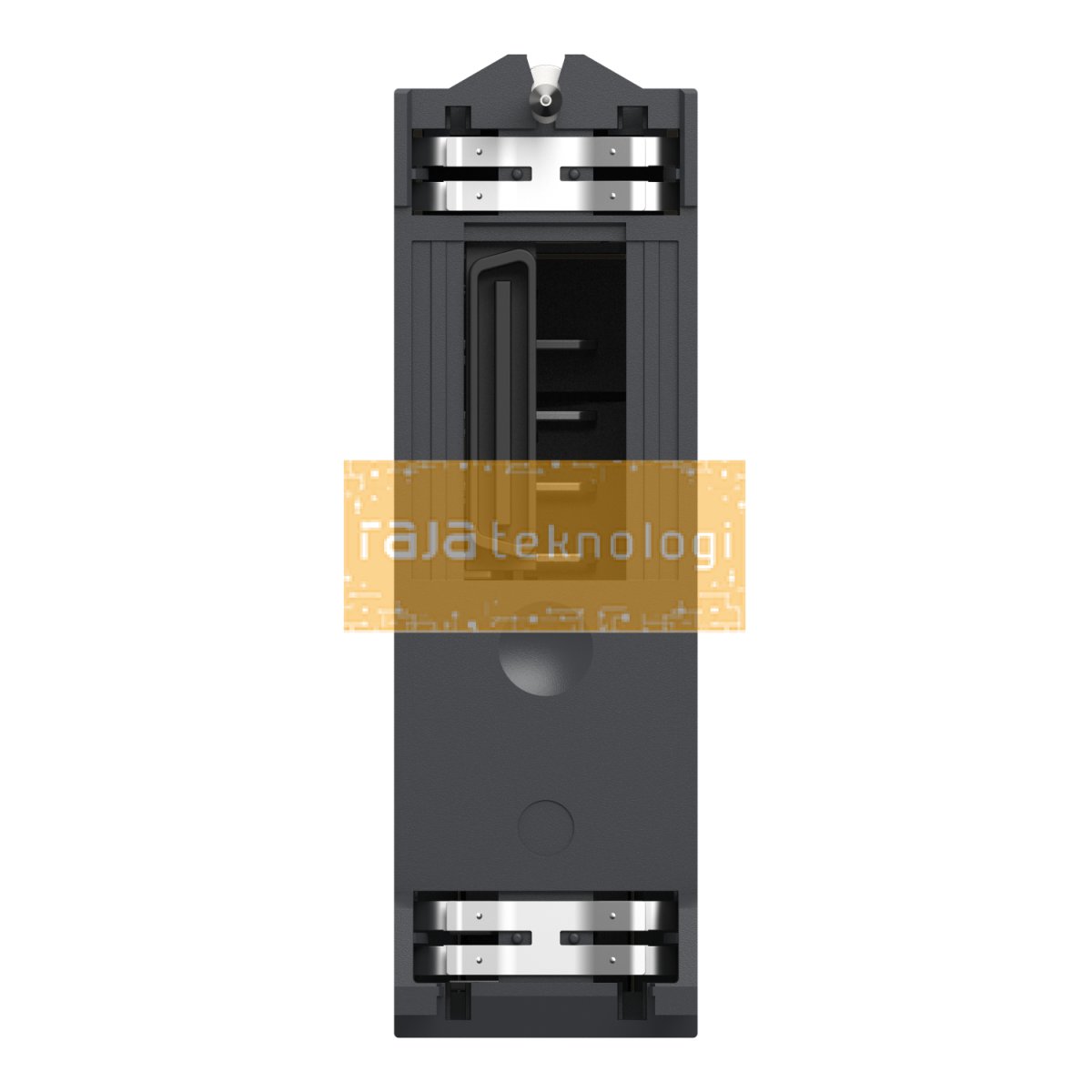

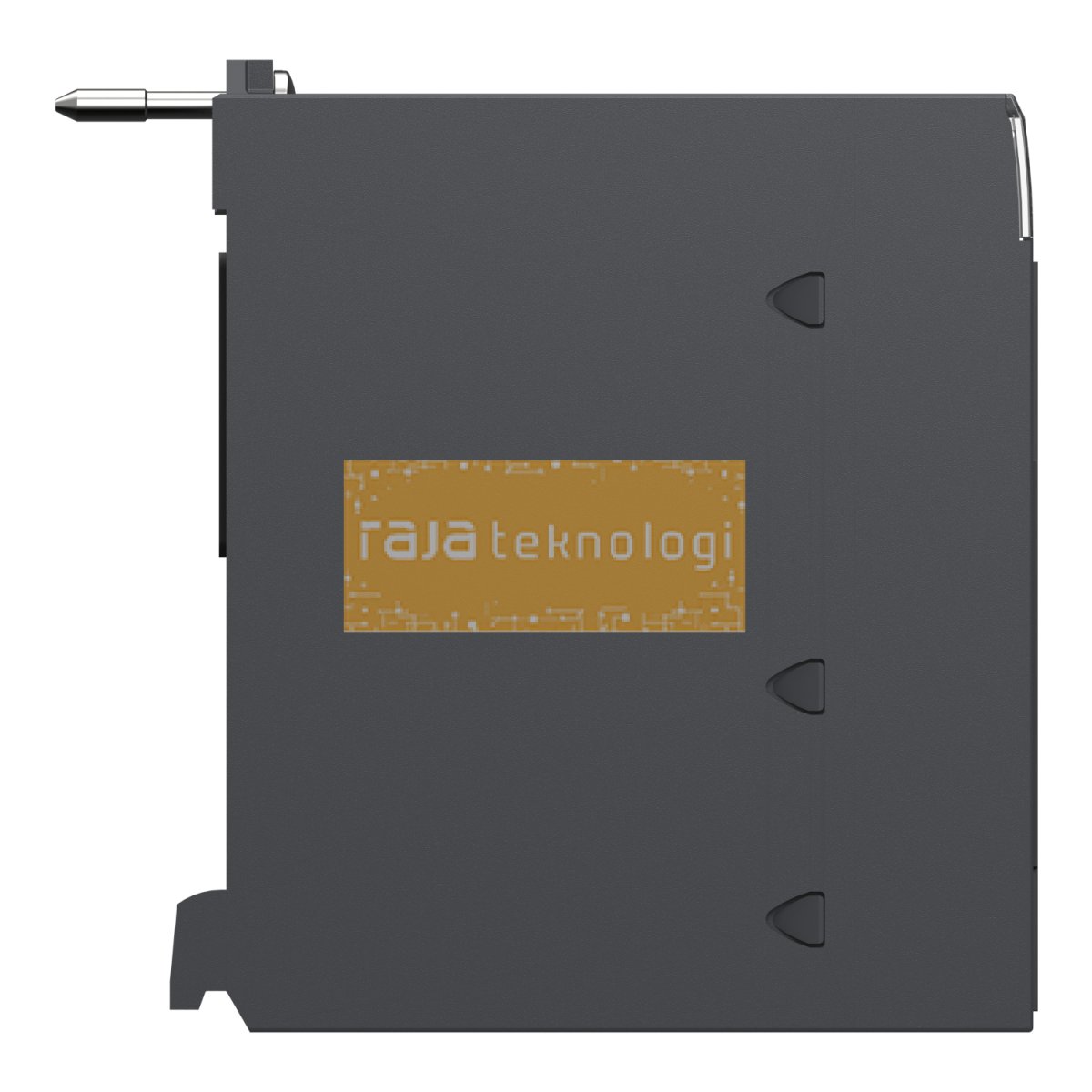

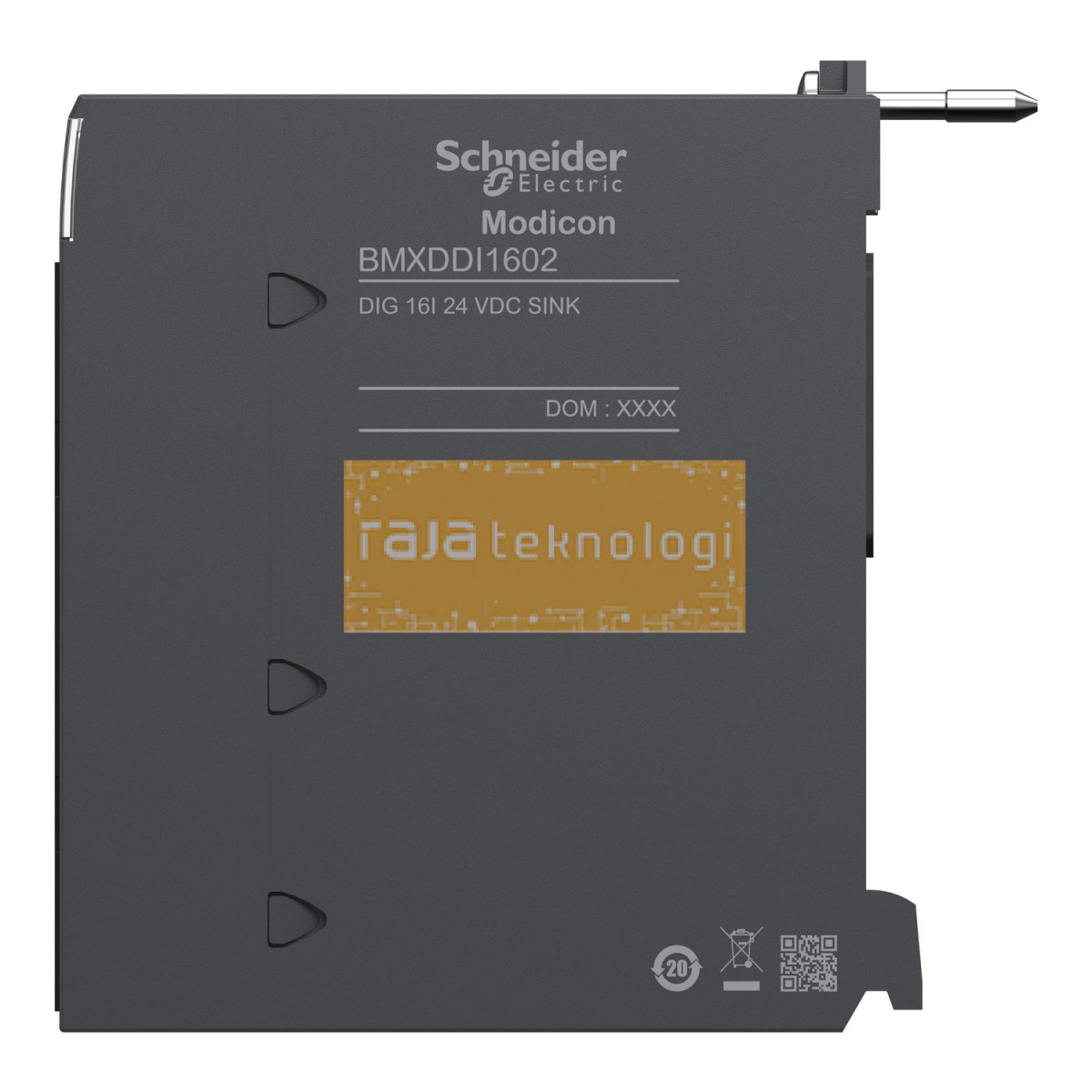

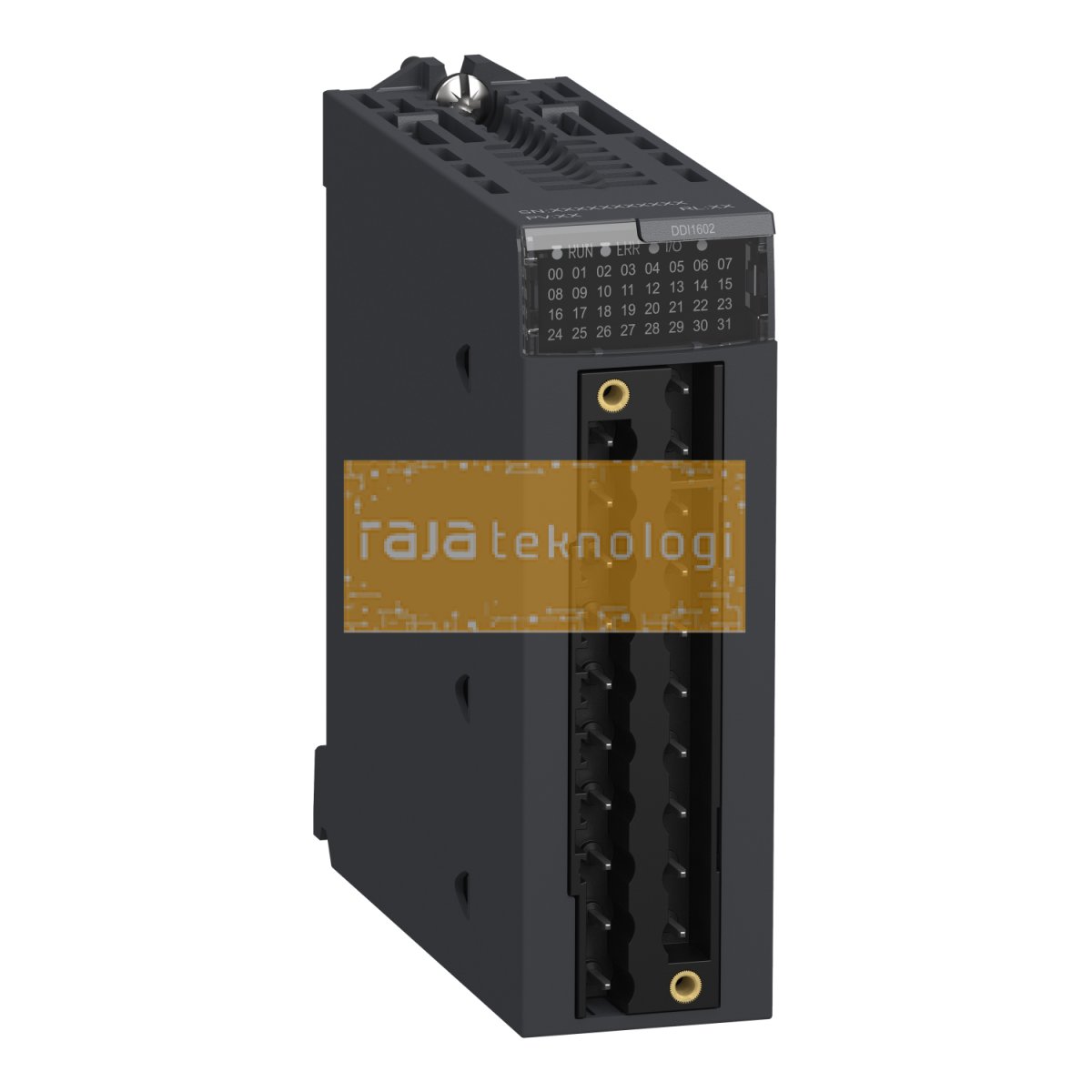

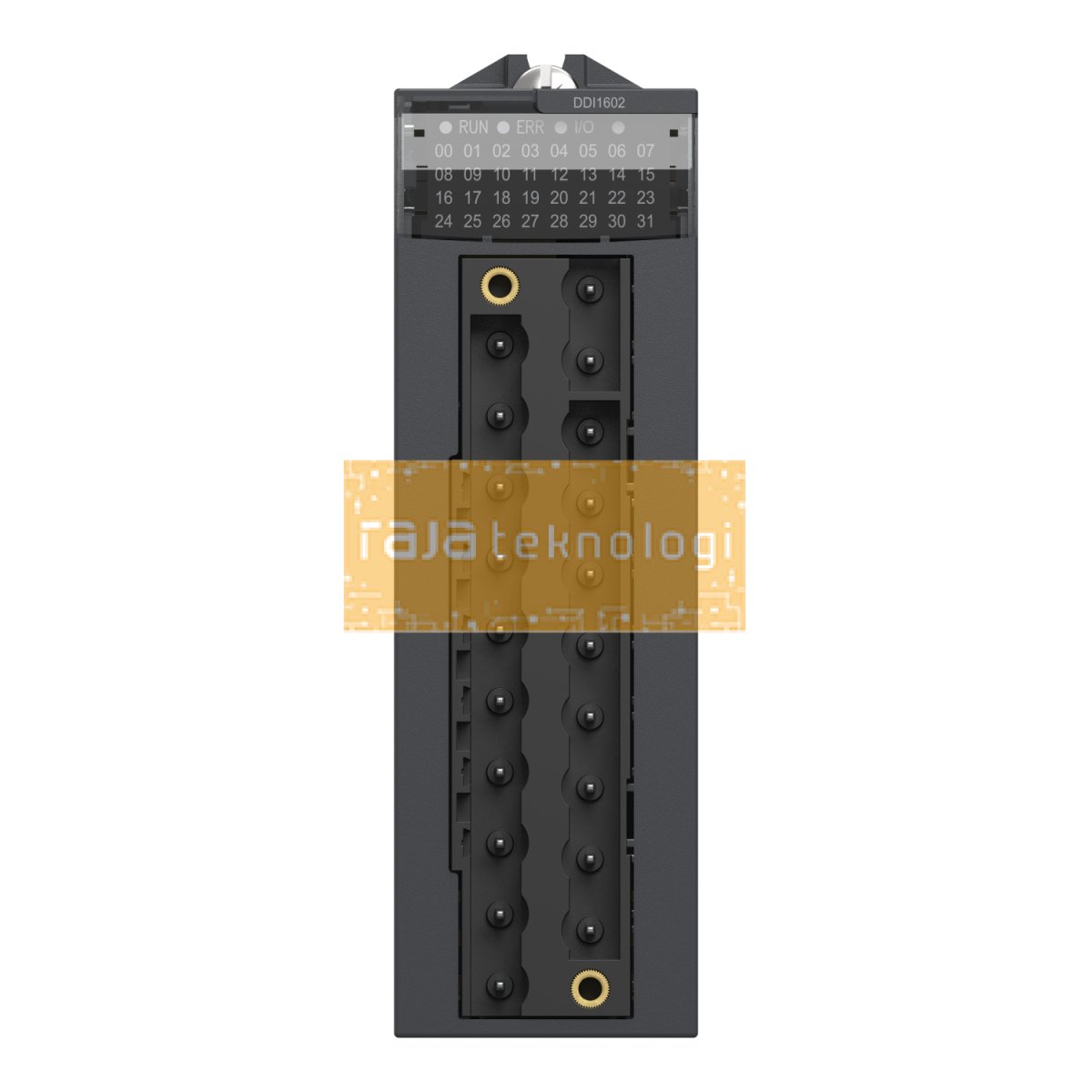

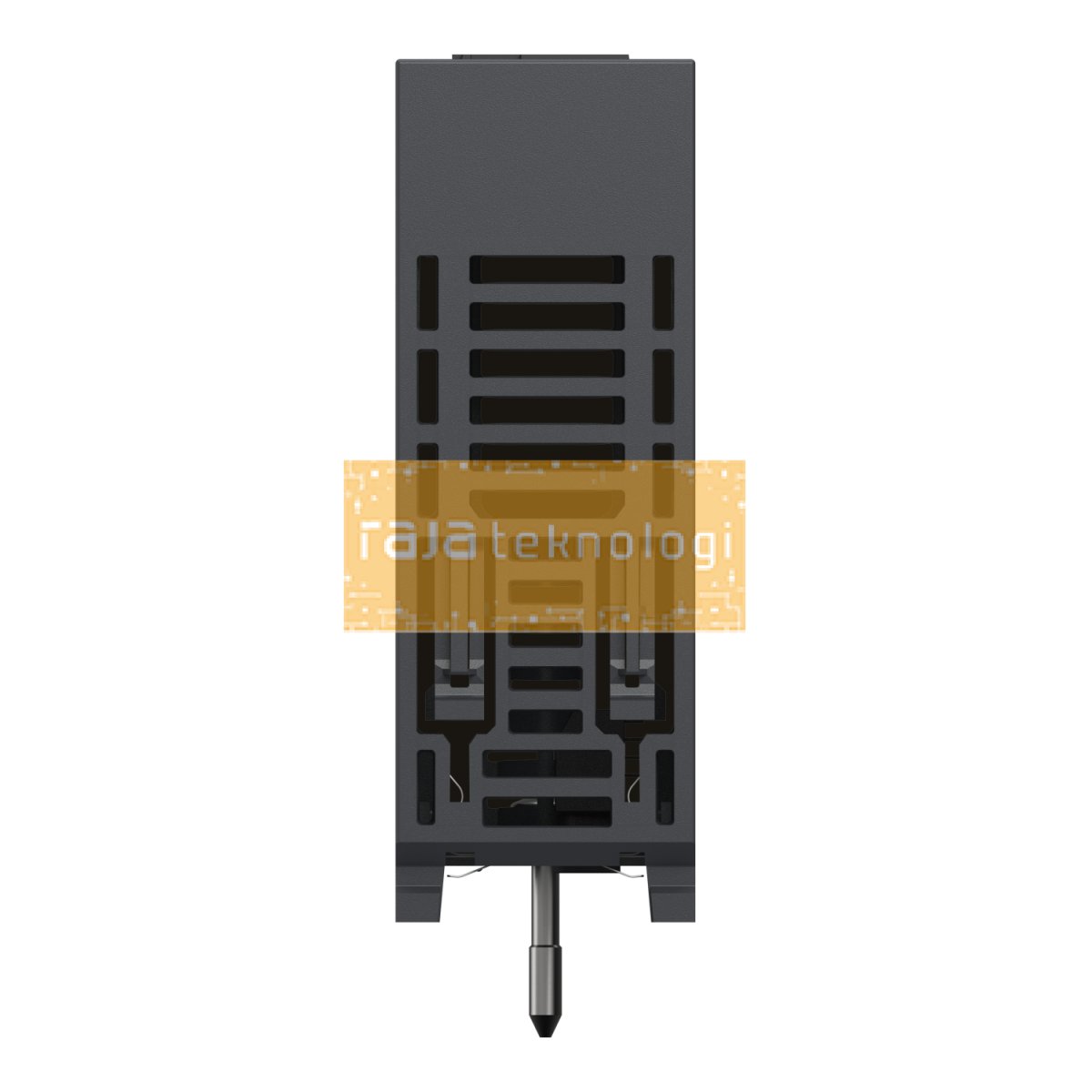

BMXDDI1602 - Discrete input module M340 - 16 inputs - 24 V DC positive
| Kode Produk | BMXDDI1602 |
| Brand | Schneider |
| Kategori | PLC & I/O Module |
Pengiriman ke seluruh Indonesia via ekspedisi terpercaya
Deskripsi
This discrete input module is part of the Modicon X80 modules. It has 16 isolated inputs and it is supplied with 24V DC. This module is connected via 20-way removable terminal block. It occupies a single slot on the rack and it has a case which provides IP 20 protection of the electronics.
Spesifikasi
| Range of product | Modicon X80 |
|---|---|
| Product or component type | Discrete input module |
| Device application | Industrial application |
| Discrete input number | 16 |
| Discrete input voltage | 24 V DC for isolated |
| Discrete input logic | Positive logic (sink) |
| Discrete input number | 16 isolated conforming to IEC 60947-5-2 at 24 V DC |
|---|---|
| Input wiring mode | 2 or 3 wires |
| Discrete input current | 3.5 mA at 24 V DC |
| Voltage state 1 guaranteed | >= 11 V |
| Voltage state 0 guaranteed | < 5 V |
| Current state 1 guaranteed | >= 2 mA |
| Current state 0 guaranteed | <= 1.5 mA |
| Input impedance | 6800 Ohm |
| Paralleling of inputs | Yes |
| Input protection type | Reverse polarity protection |
| Insulation resistance | > 10 MOhm 500 V DC |
| DC typical response time | 4 ms |
| DC maximum response time | 7 ms |
| Sensor power supply | : 19…30 V |
| Typical current consumption | 76 mA DC |
| Current consumption | <= 107 mA at 3.3 V DC |
| Power dissipation in W | 2.5 W |
| Isolation between channels and bus | 1500 V for 1 minute |
| Hot swapping fallback | Yes |
| MTBF reliability | 775000 H |
| Voltage detection threshold | < 14 V DC sensor fault > 18 V DC sensor OK |
| Local signalling | 1 LED (green) for module operating (RUN) 1 LED per channel (green) for channel diagnostic 1 LED (red) for module error (ERR) 1 LED (red) for module I/O |
| Height | 103.7 mm |
| Width | 32 mm |
| Depth | 86 mm |
| Net weight | 0.115 kg |
