Schneider

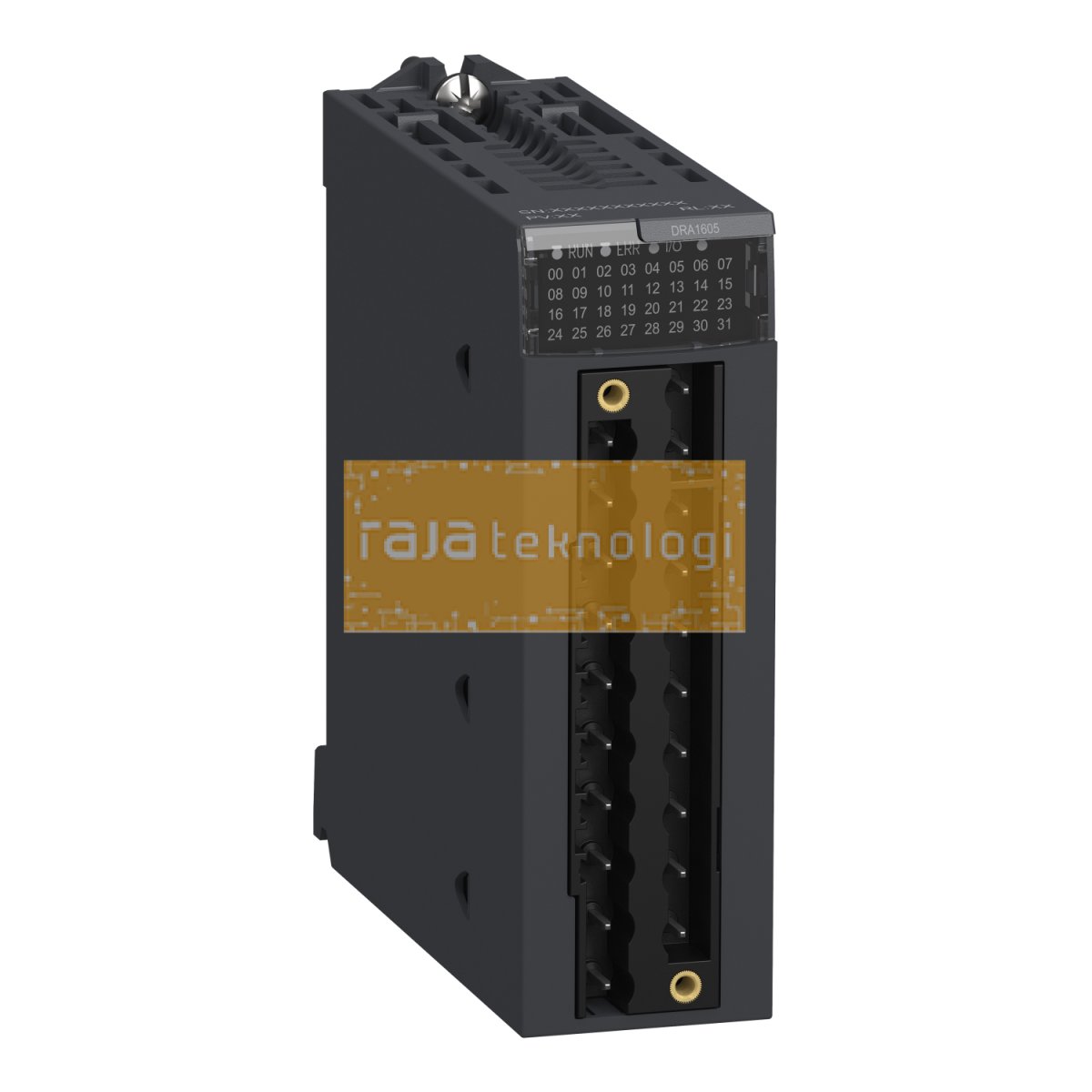

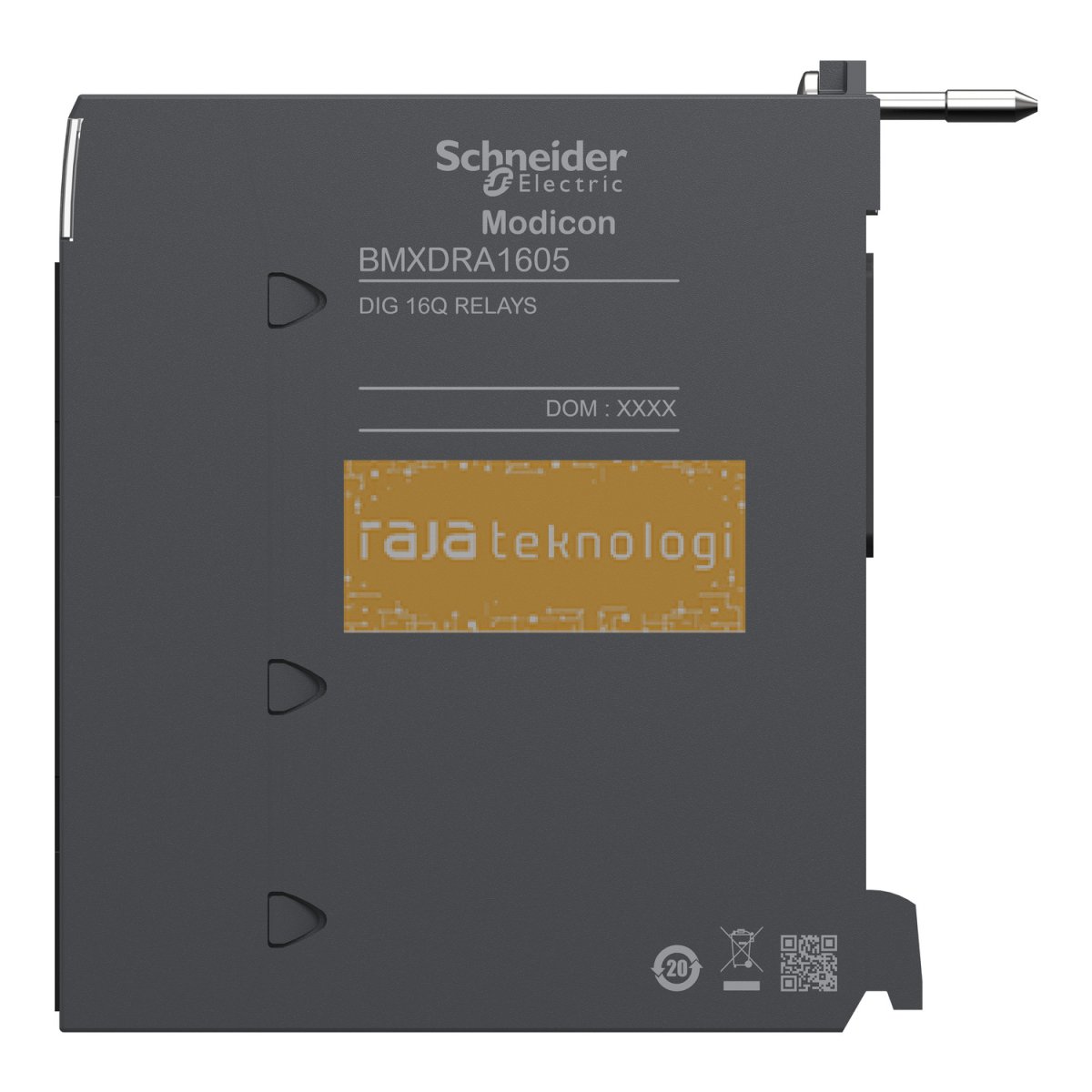

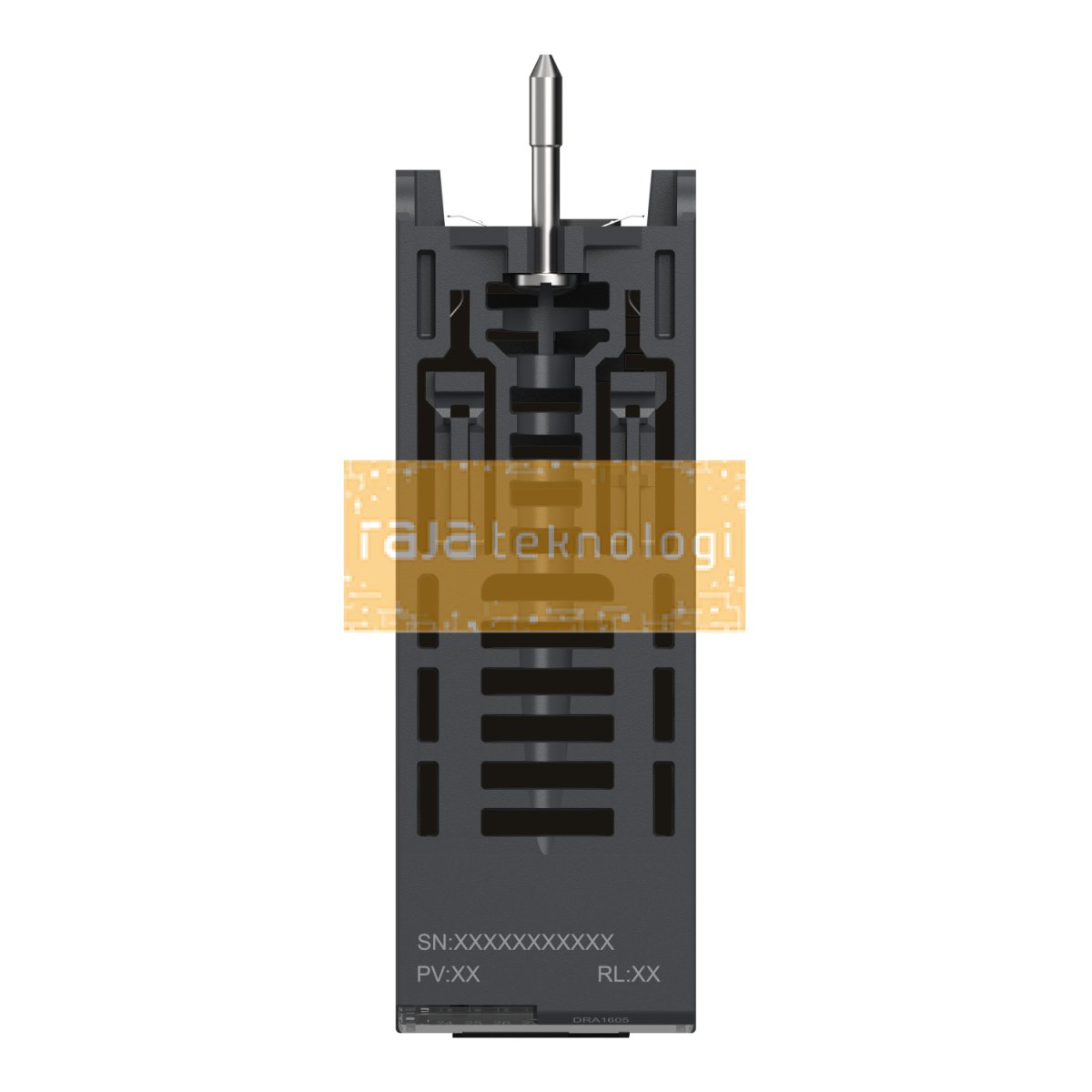

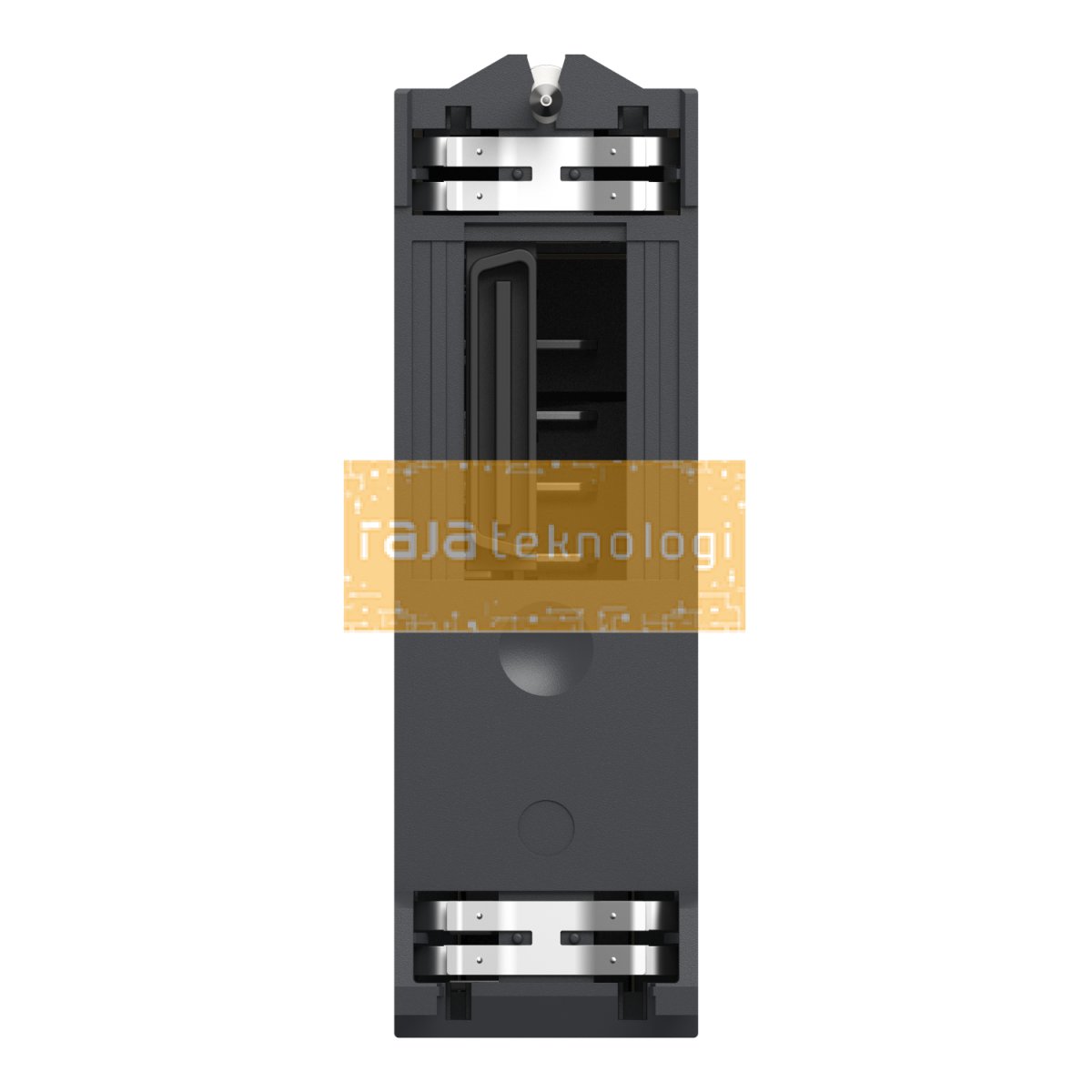

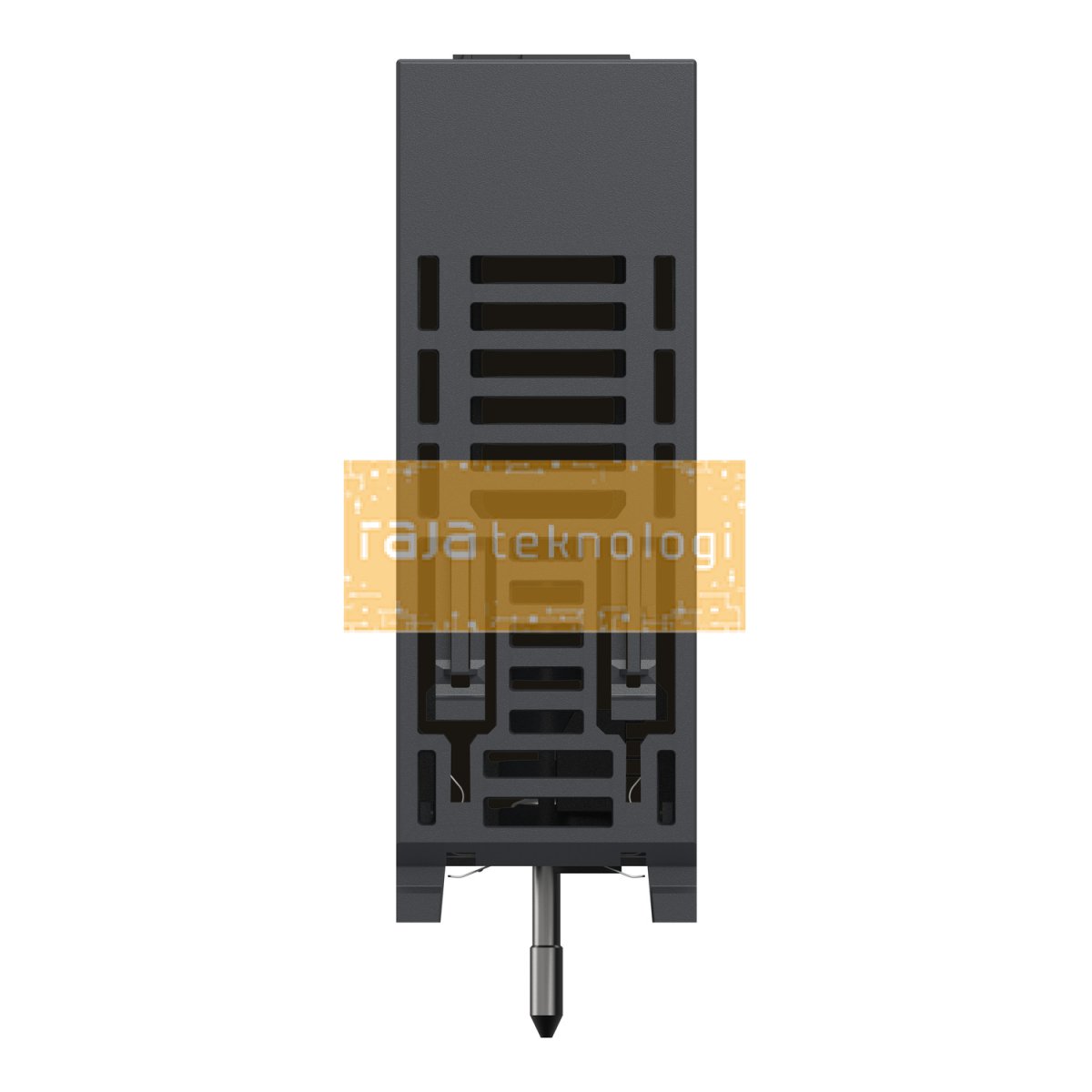

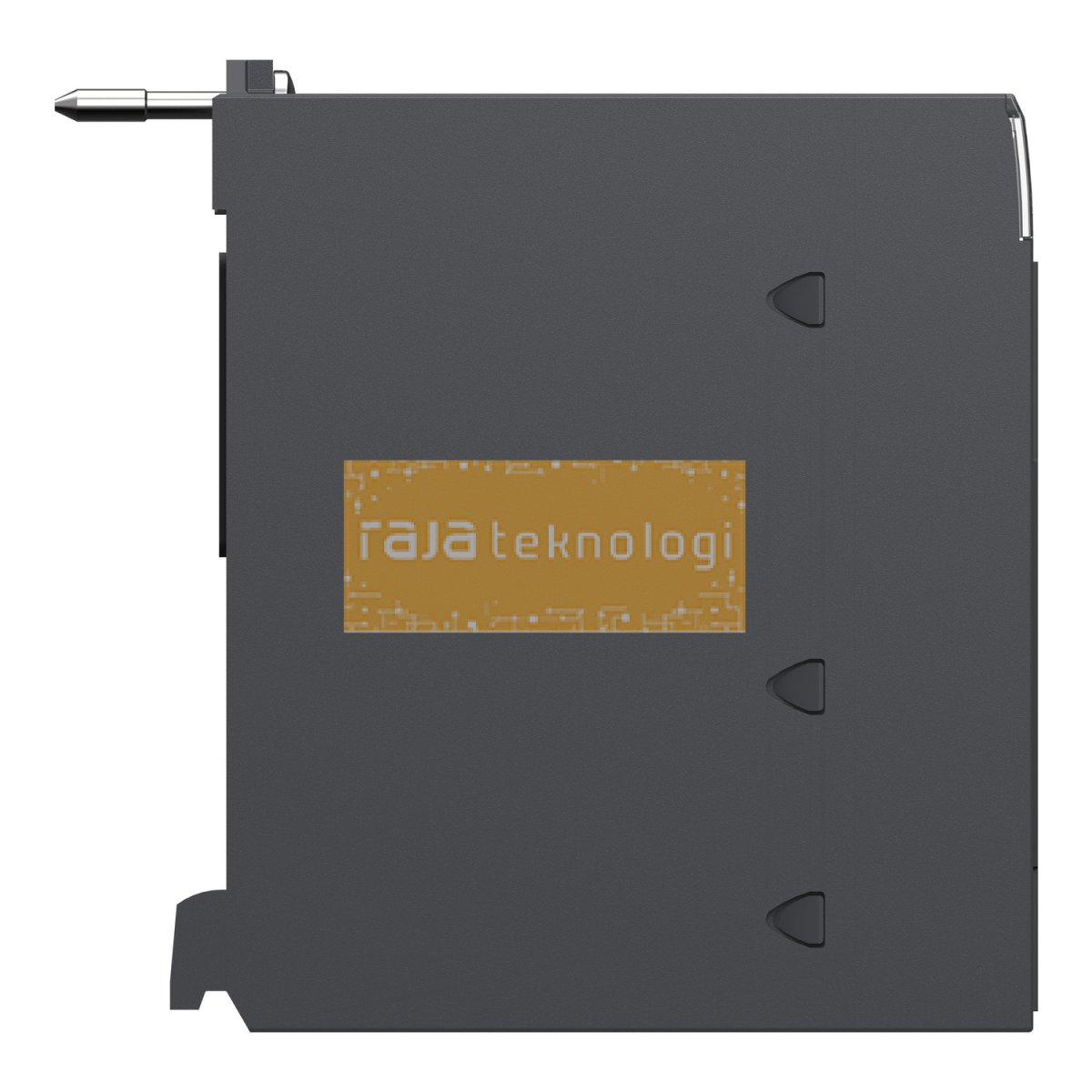

BMXDRA1605 - Discrete output module M340 - 16 outputs - relay - 24 V DC
| Kode Produk | BMXDRA1605 |
| Brand | Schneider |
| Kategori | PLC & I/O Module |
Pengiriman ke seluruh Indonesia via ekspedisi terpercaya
Deskripsi
This discrete output module is part of the Modicon X80 modules. It has 16 relay non protected outputs, 24V DC / 24V to 240V AC. This module is connected via 20-way removable terminal block. It occupies a single slot on the rack and it has a case which provides IP 20 protection of the electronics.
Spesifikasi
| Range of product | Modicon X80 |
|---|---|
| Product or component type | Discrete output module |
| Discrete output logic | Positive |
| Minimum switching current | 1 mA 5 V DC |
|---|---|
| Response time on output | < 8 ms activation < 10 ms deactivation |
| Insulation resistance | > 10 MOhm 500 V DC |
| MTBF reliability | 2100000 H |
| Net weight | 0.15 kg |
