Schneider

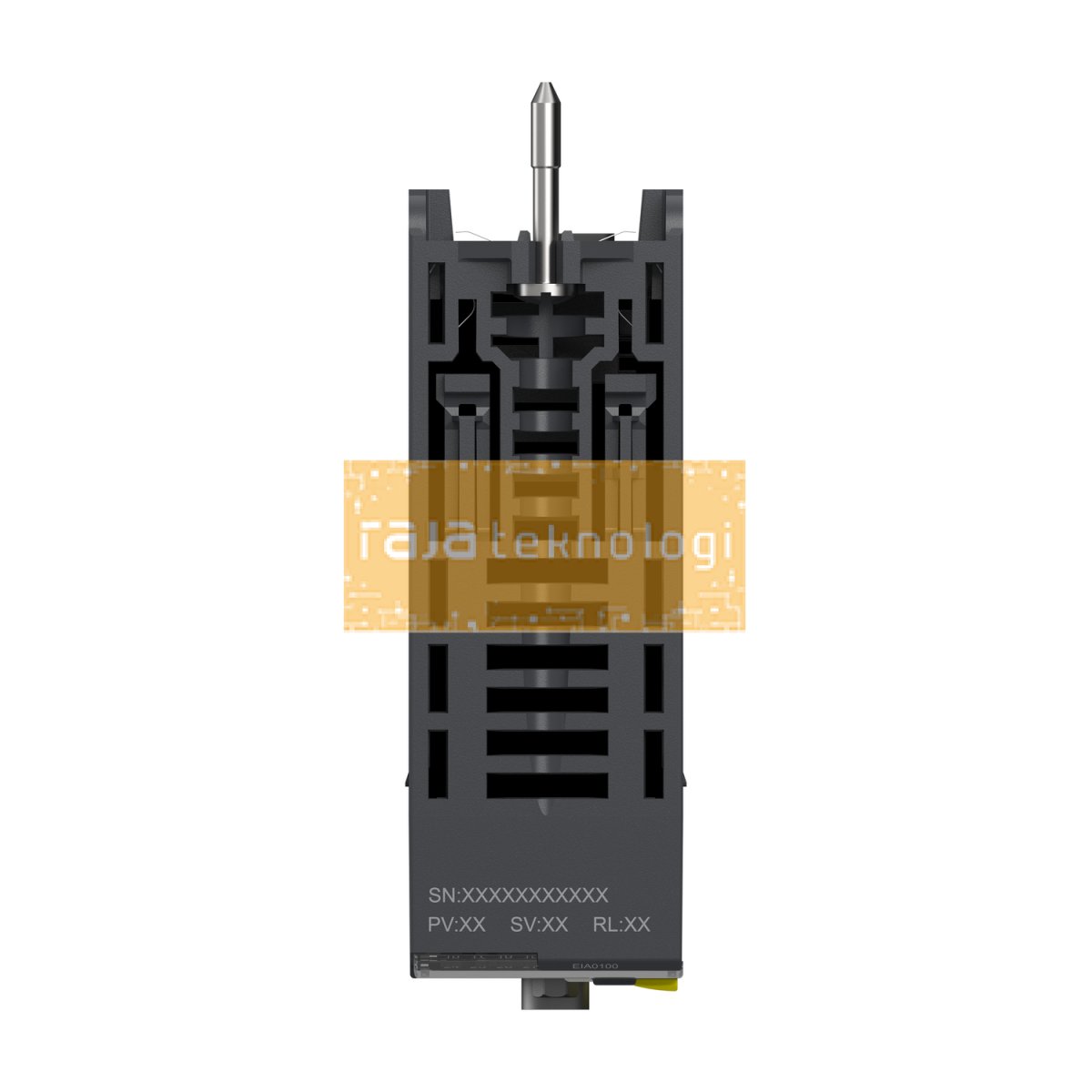

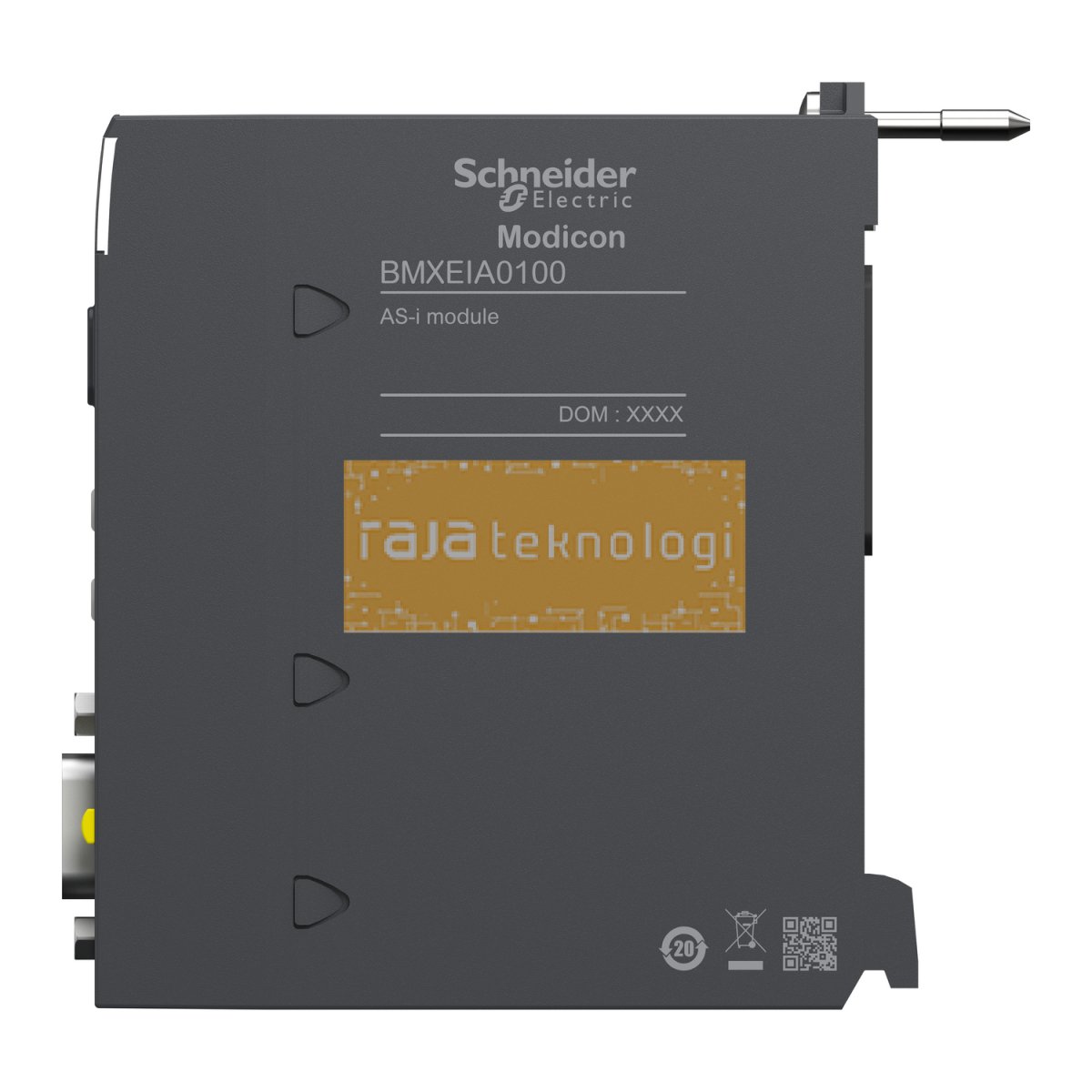

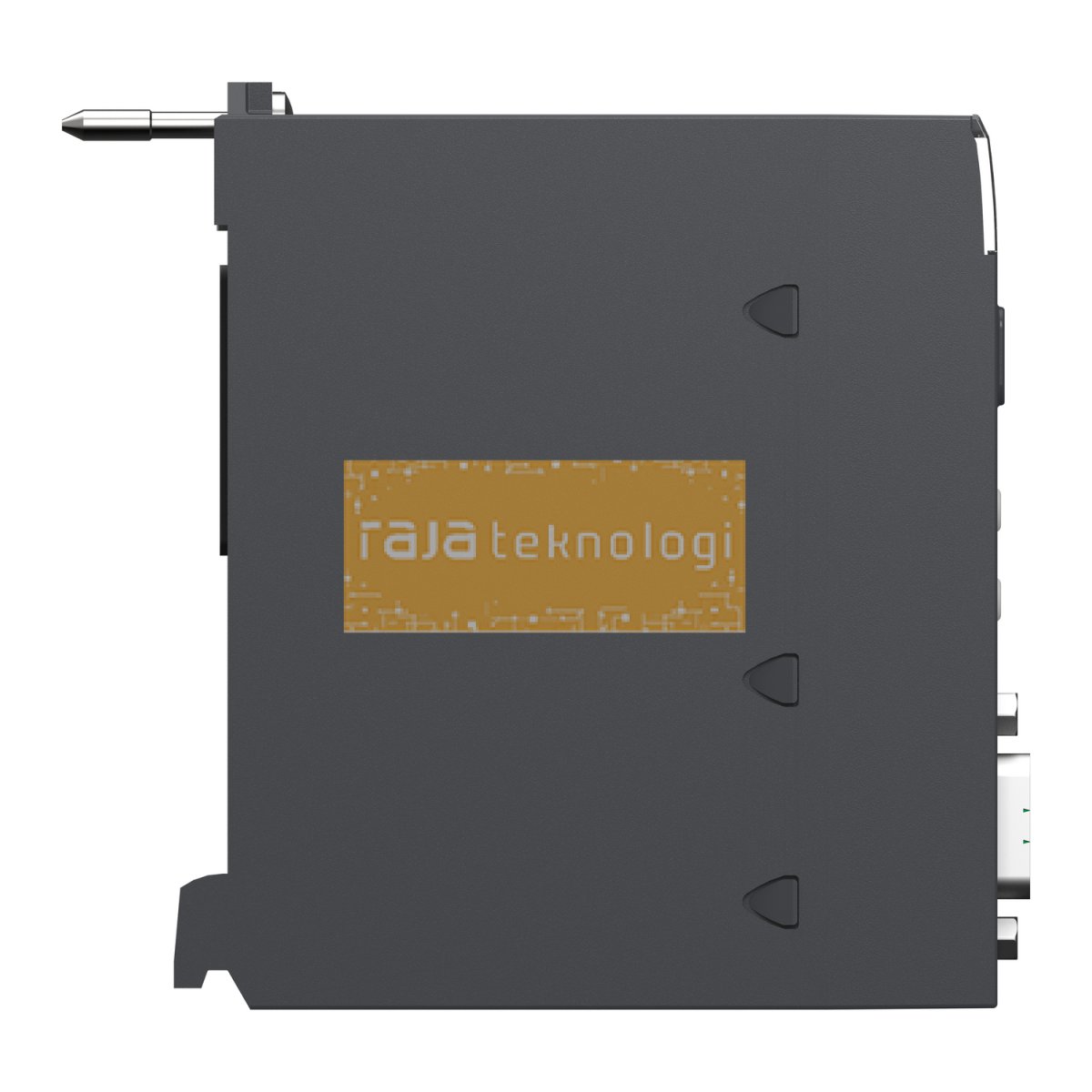

BMXEIA0100 - Master module, Modicon X80, upto 62 devices on discrete IO, upto 31 devices on analog IO
| Kode Produk | BMXEIA0100 |
| Brand | Schneider |
| Kategori | Industrial Communication |
Pengiriman ke seluruh Indonesia via ekspedisi terpercaya
Deskripsi
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This master module supports up to 62 I/O discrete devices and up to 31 I/O analogue devices. It is a master module with a current consumption of 160mA at 3.3V DC. This product is robust, high quality and based on the latest innovative technology. It is furnished with 3-way SUB-D male connector for electrical connection. It is an IP20 rated product. Maximum cable distance between devices is 100m, 200m line extension, 300m 2 repeaters, 500m 2 repeaters and the master at the middle. It weighs 0.34kg. It is suitable for medium to large process applications. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Spesifikasi
| Range of product | Modicon X80 |
|---|---|
| Product or component type | Master module |
| Actuator sensor interface profile [AS-i] | M4 master profile S7.3 slave profile S7.A.7 slave profile S7.A.A slave profile S7.A.8 slave profile S7.A.9 slave profile S6.0.X slave profile |
| Addressing | Standard and extended |
| Cycle time | 5 ms for 31 10 ms for 62 |
|---|---|
| Electrical connection | 1 male connector SUB-D, 3 pins |
| Number of server device(s) | 124 server device(s) for discrete inputs and outputs - standard 124 server device(s) for analog inputs and outputs - standard 496 server device(s) for discrete inputs and outputs - extended 124 server device(s) for analog inputs and outputs - extended |
| Maximum cable distance between devices | 100 m 200 m line extension 300 m 2 repeaters 500 m 2 repeaters and the master at the middle |

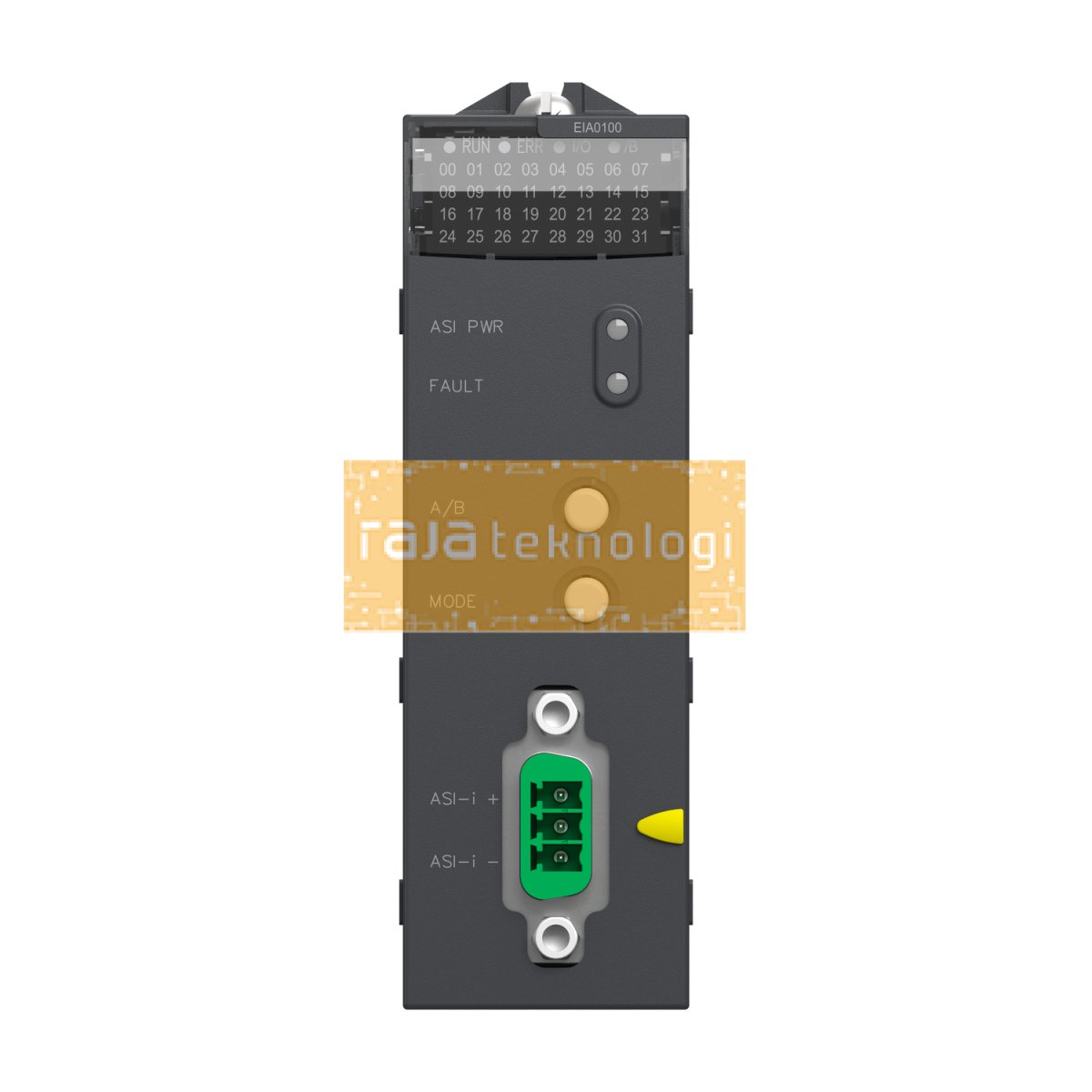

| Local signalling | 1 LED (green) for module active (RUN) 1 LED (red) for module error (ERR) 1 LED (green) for displays the group of 31 slaves (A/B) 1 LED (red) for I/O module fault (I/O) 32 LEDs for diagnostics of the AS-Interface and each slave 1 LED (green) for ASI power 1 LED (red) for fault |
| Current consumption | 160 mA at 3.3 V DC |
| Module format | Standard |
| Net weight | 0.34 kg |
