Schneider

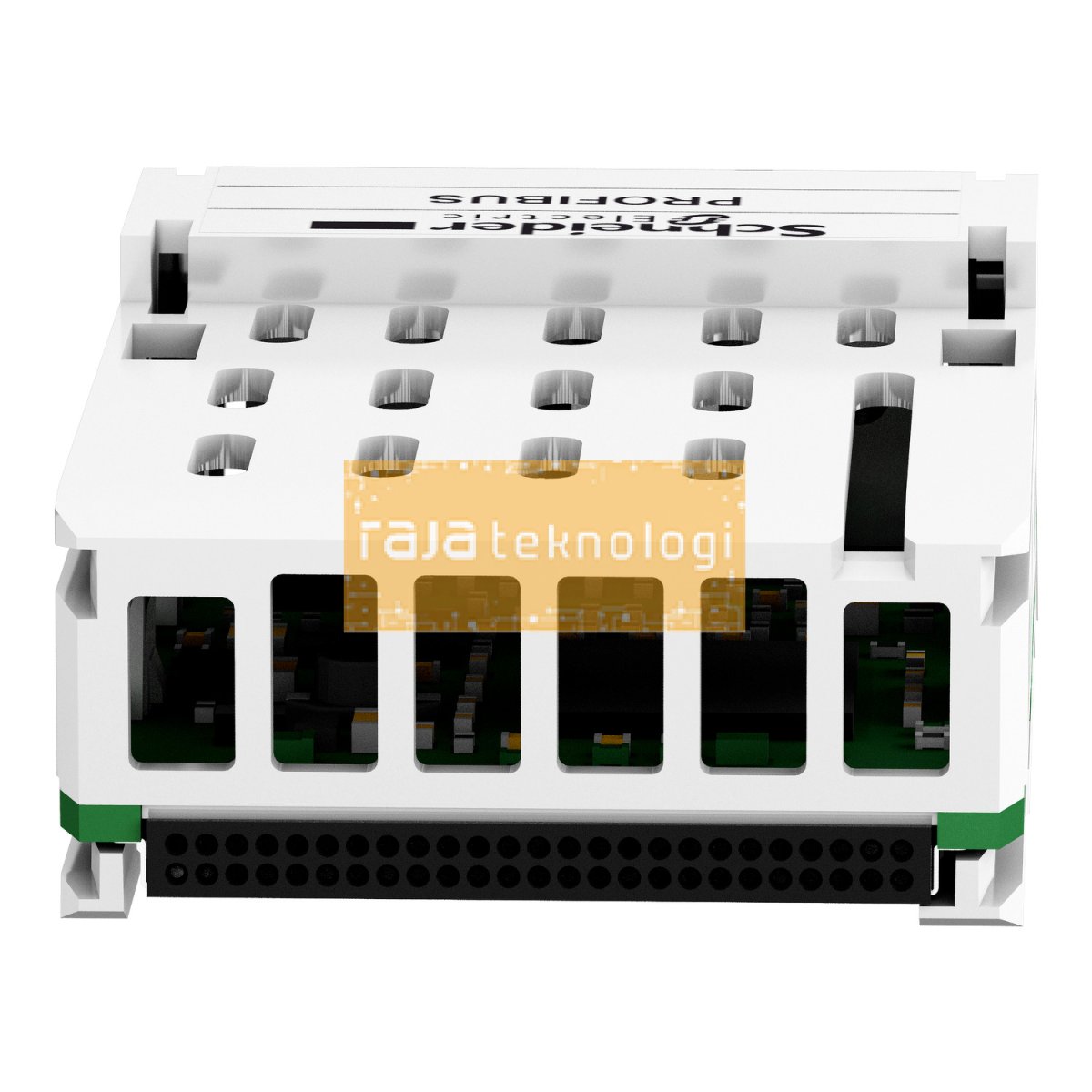

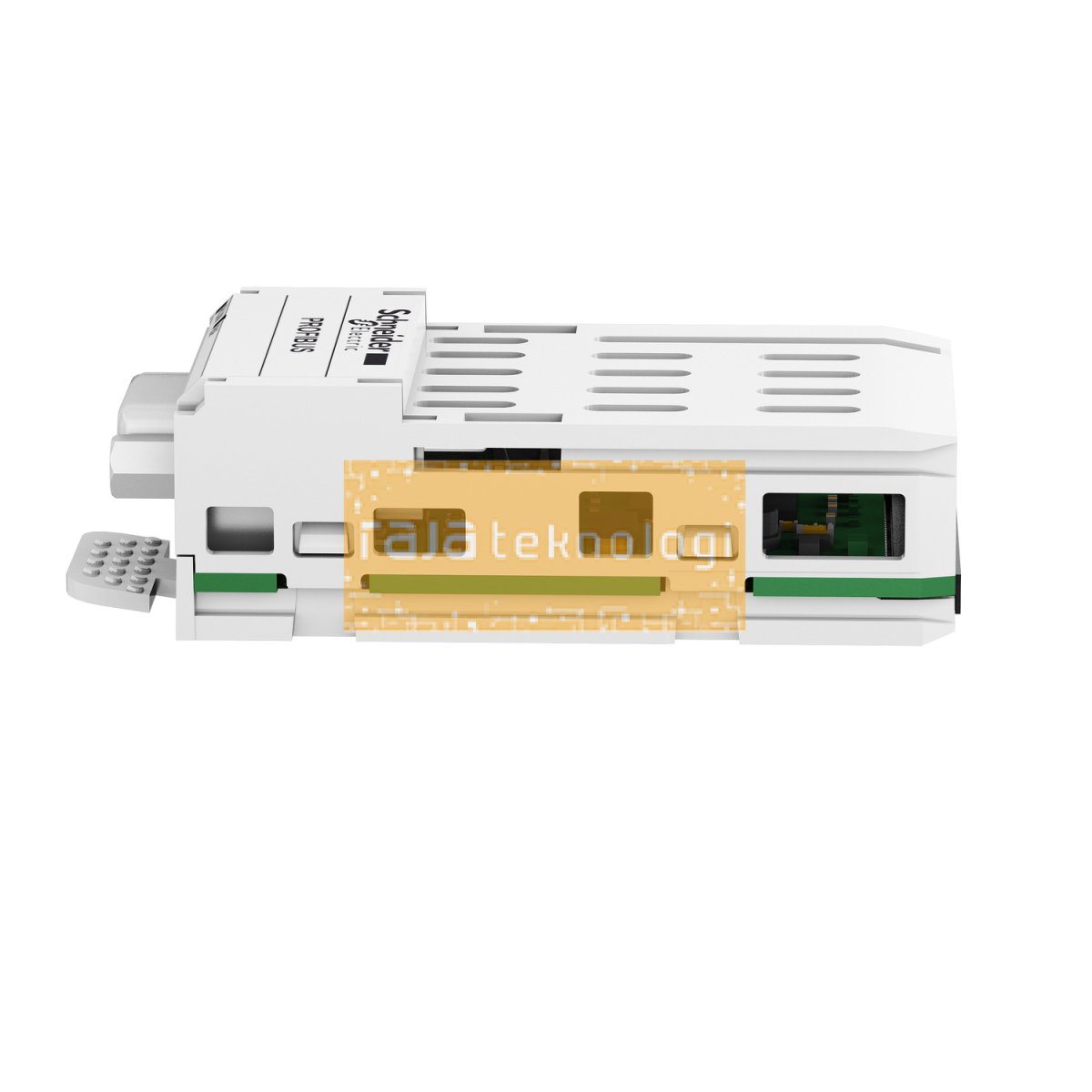

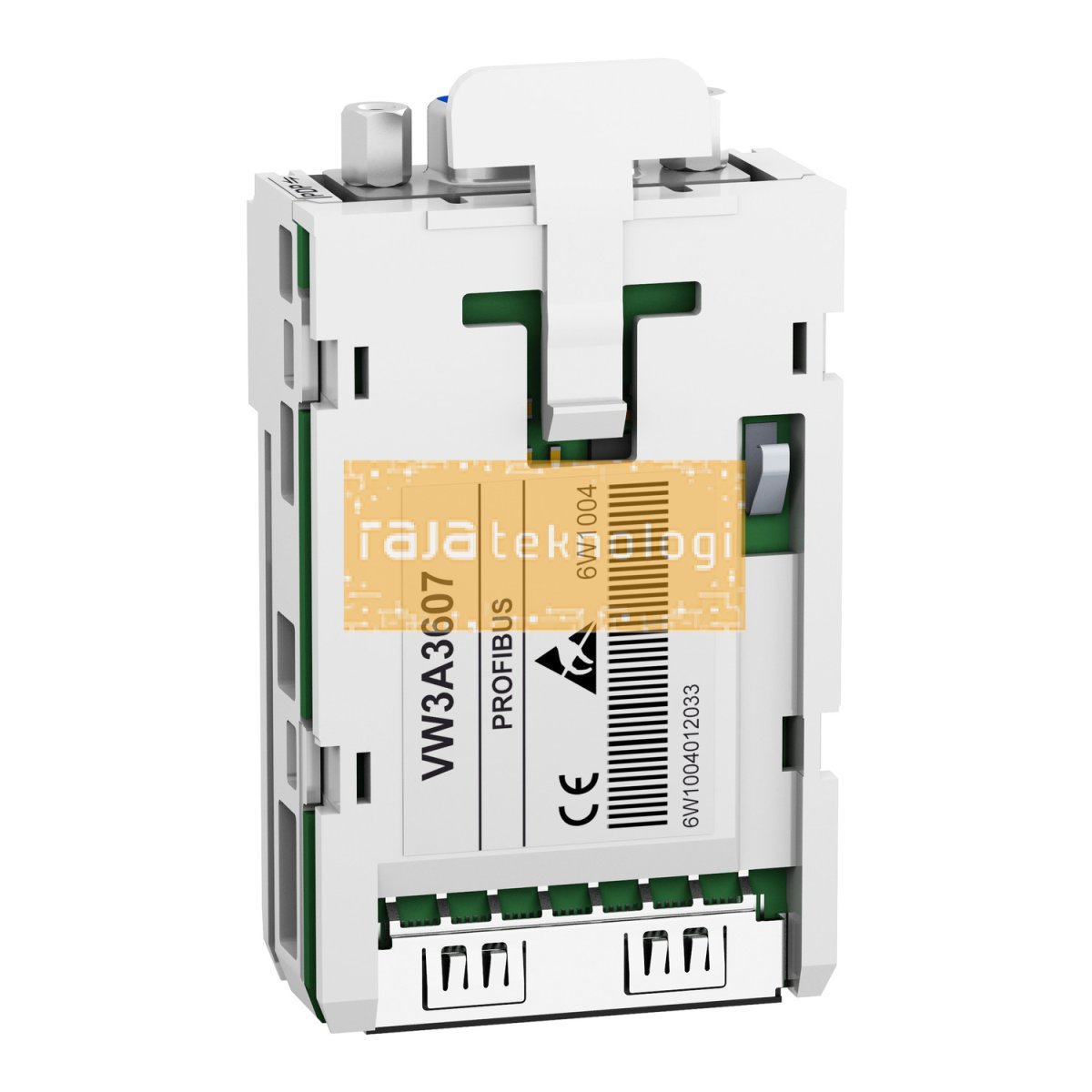

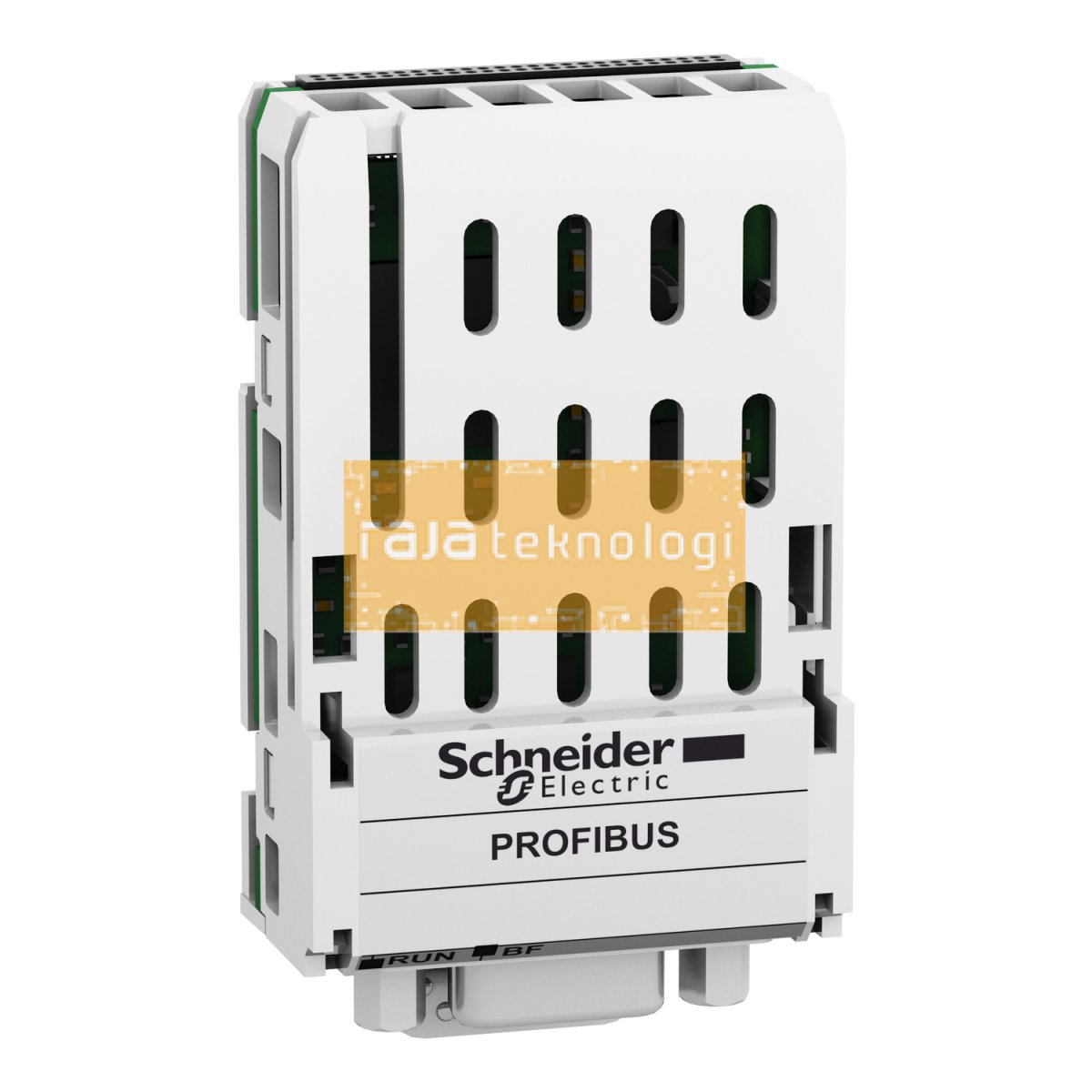

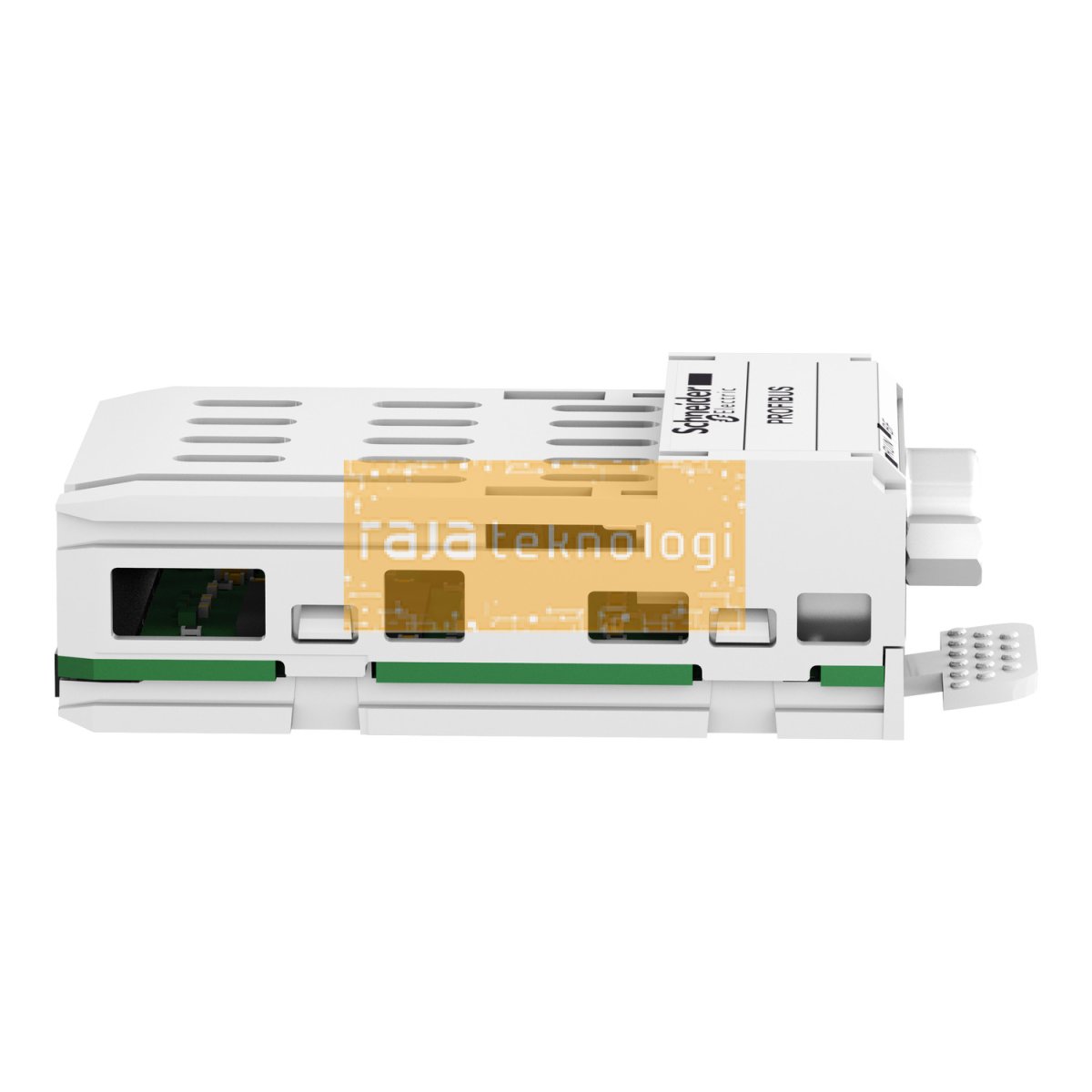

VW3A3607 - Profibus DP communication module
| Kode Produk | VW3A3607 |
| Brand | Schneider |
| Kategori | Industrial Communication |
Pengiriman ke seluruh Indonesia via ekspedisi terpercaya
Deskripsi
This PROFIBUS DP V1 communication module is an option for variable speed drives of Altivar range. It is equipped with 1 x 9-way female SUB-D connector. It is compatible with Altivar Machine and Altivar Process drives. It enables integration of your variable speed drive in your process control network. It weighs 140g.
Spesifikasi
| Range of product | Altivar |
|---|---|
| Product or component type | Communication module |
| Accessory / separate part category | Communication accessories |
| Product compatibility | Lexium 32M |
|---|---|
| Range compatibility | Altivar 32 Altivar Machine ATV340 except Sercos drives Altivar Easy 610 Lexium 32 Altivar Process ATV900 Altivar Process ATV600 Altivar Machine ATV320 Altivar Process Modular |
| Communication port protocol | Profibus DP V1 |

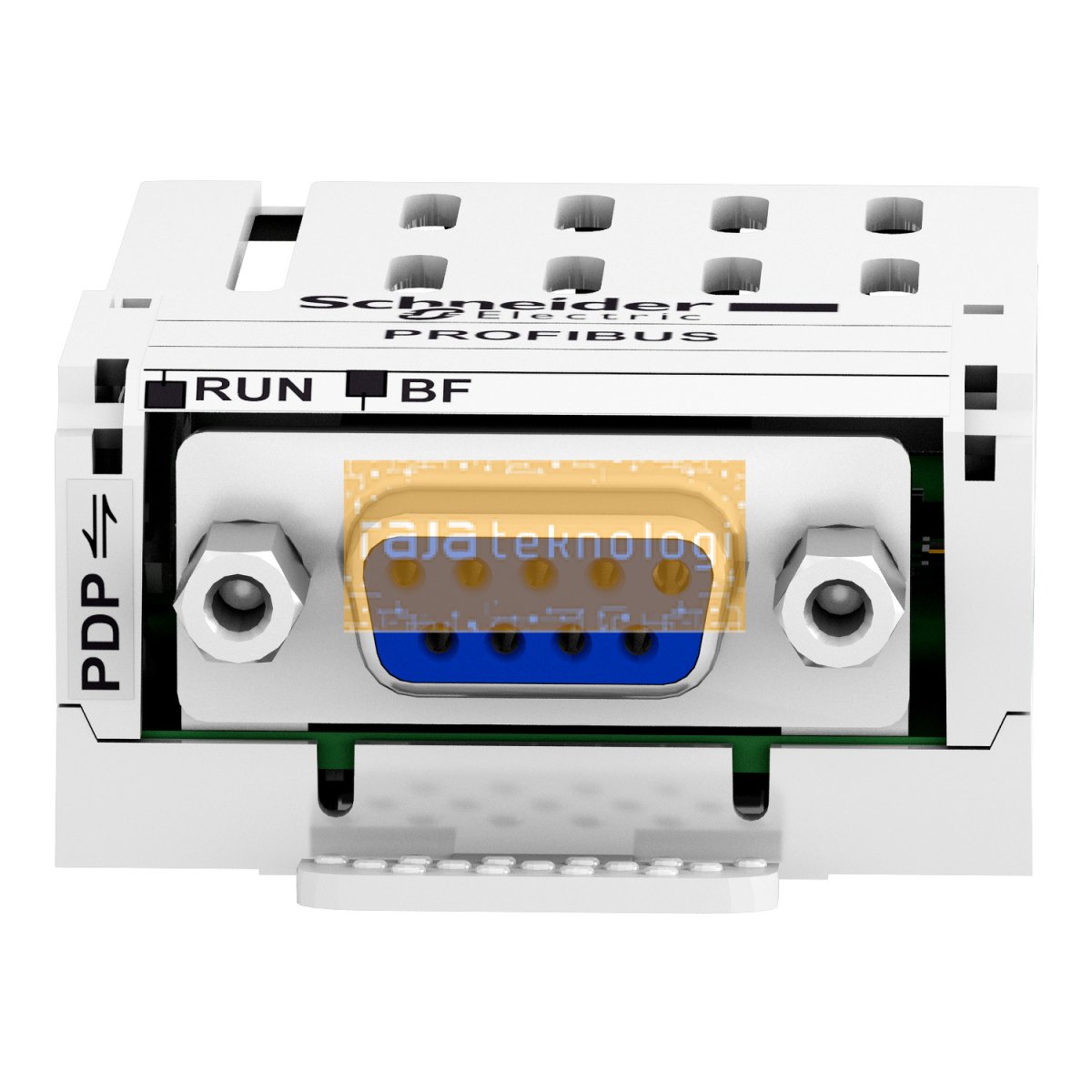

| Electrical connection | 1 female connector SUB-D 9 |
| Transmission rate | 9.6 kbps...12 Mbps |
| Addressing | 1...126 configurable by graphic terminal/SoMove software Configuration settings |
| Communication service | 4 configurable telegrams Mapping of the process data from the master Parameters management compliant with PROFIdrive V4.1 Several DP V1 messaging modes Drive profile native ATV32 conforming to IEC 61800-7-201 (CiA 402) |
| Display type | 1 LED for RUN 1 LED for bus fault (BF) |
| diagnostic function | Diagnostic data with VSD status Host drive handled from two masters (MS0 and MS1) Standard identification and maintenance requests |
| Bus profile | PROFIdrive CiA 402 |
