Schneider

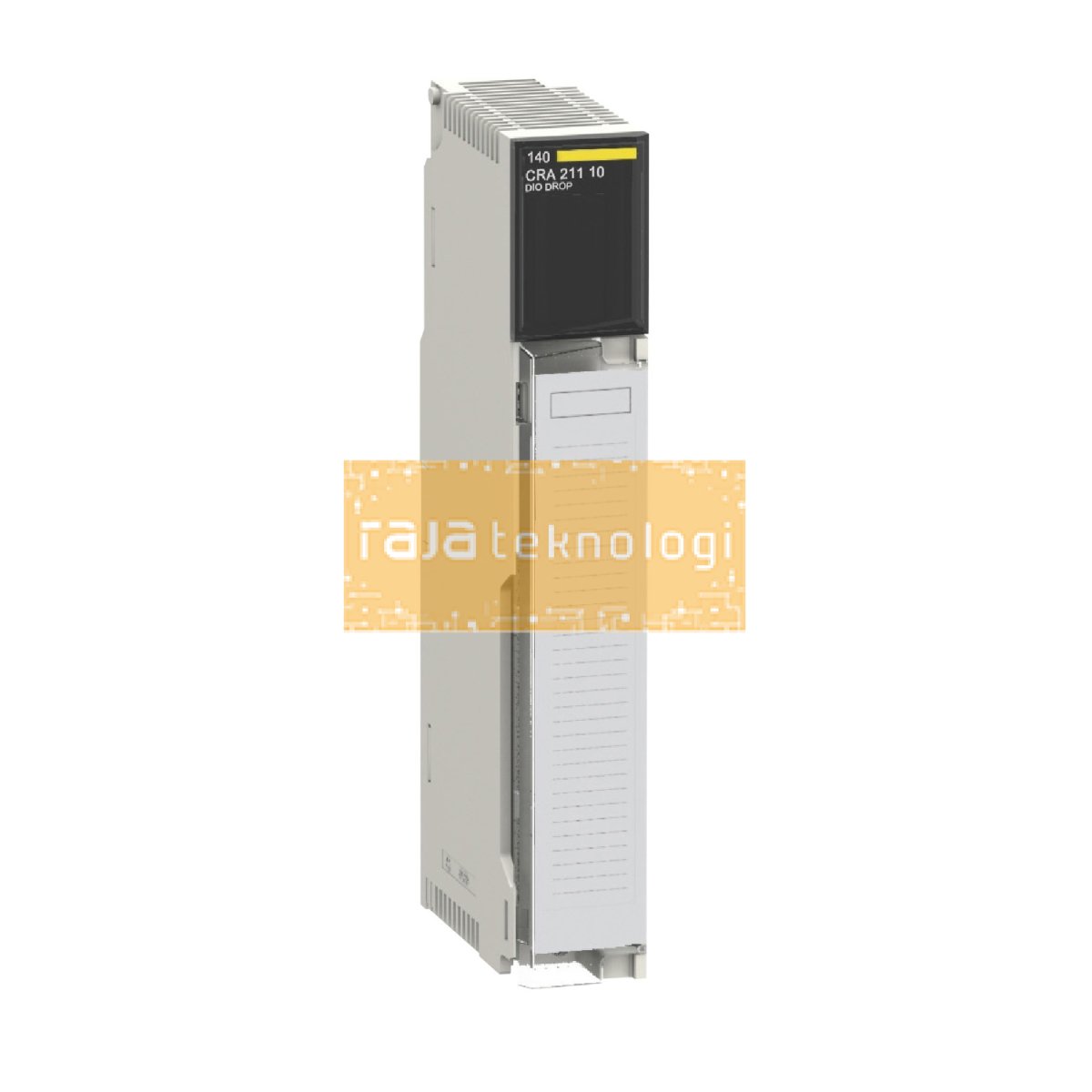

140CRA21110 - DIO drop interface Modicon Quantum - 115/230 V AC - 1 single port
| Kode Produk | 140CRA21110 |
| Brand | Schneider |
| Kategori | PLC & I/O Module |
Pengiriman ke seluruh Indonesia via ekspedisi terpercaya
Deskripsi
DIO drop interface Modicon Quantum - 115/230 V AC - 1 single port
Spesifikasi
| Range of product | Modicon Quantum automation platform |
|---|---|
| Product or component type | DIO drop interface |
| Number of port | 1 single |
|---|---|
| [Us] rated supply voltage | 115/230 V AC |
| Supply voltage limits | 85…276 V |
| Supply frequency | 47...63 Hz |
| Maximum supply current | 0.2 A 115 V 0.4 A 230 V |
| Inrush current | 10 A 115 V 20 A 230 V |
| rated power in VA | 50 VA |
| Associated fuse rating | 1.5 A |
| Output voltage | 5.1 V |
| nominal output current | 3 A |
| Minimum load current | 0 A |
| Short-circuit protection | With |
| Output overvoltage protection | With |
| I/O words | 30 I/32 O |
| Typical backplanes | 3 positions 2 positions 6 positions 16 positions 10 positions 4 positions |
| Diagnostics startup | RAM address RAM Checksum |
| Diagnostics run time | RAM address RAM Checksum |
| Power dissipation in W | 11 W |
| Connections - terminals | Terminal block, 7 poles |
| Module format | Standard |
