Schneider

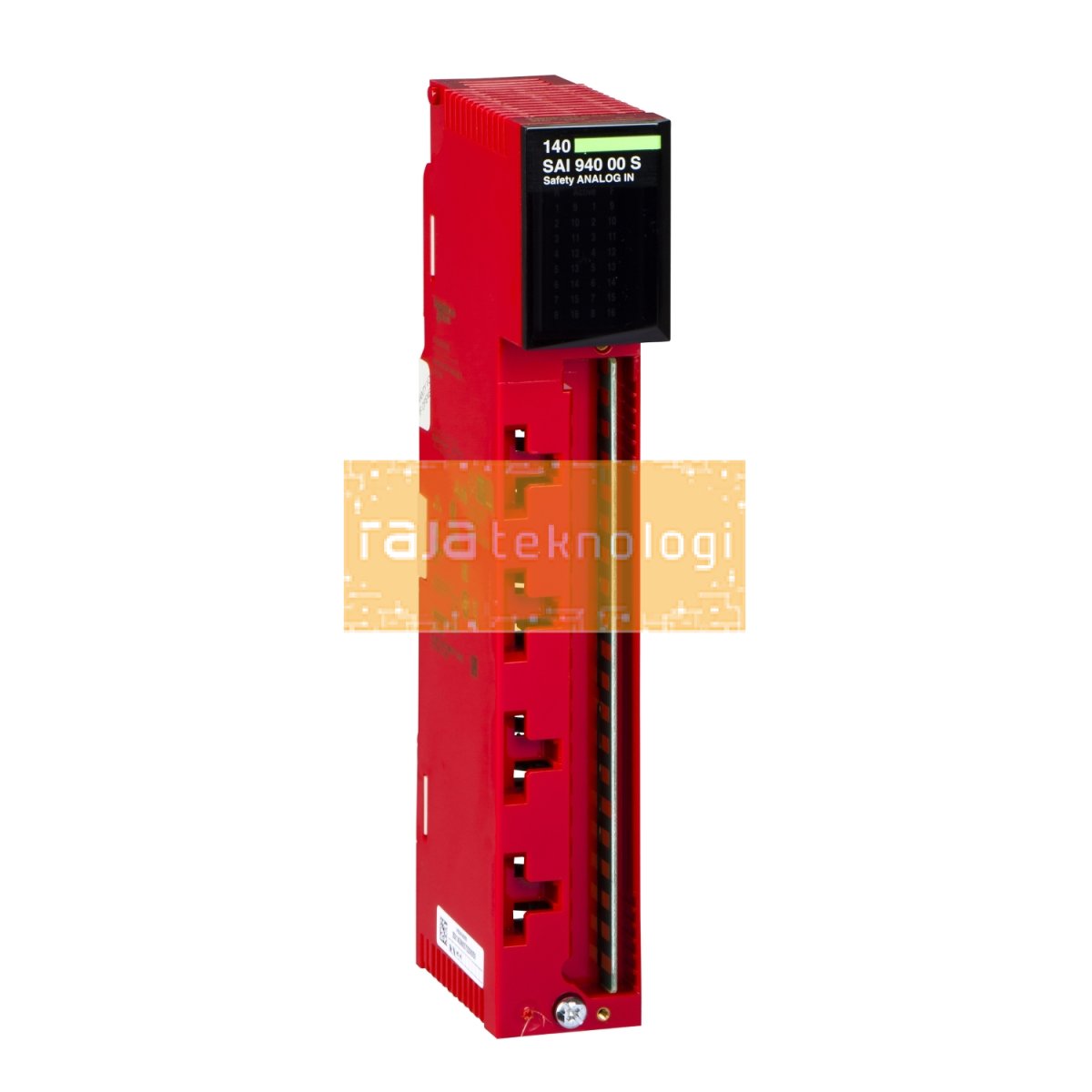

140SAI94000S - Analog safety input module, Modicon Quantum, 8 input words, 16 bits resolution, 60Hz
| Kode Produk | 140SAI94000S |
| Brand | Schneider |
| Kategori | PLC & I/O Module |
Pengiriman ke seluruh Indonesia via ekspedisi terpercaya
Deskripsi
Analog safety input module, Modicon Quantum, 8 input words, 16 bits resolution, 60Hz
Spesifikasi
| Range of product | Modicon Quantum automation platform |
|---|---|
| Product or component type | Analogue safety input module |
| Type of filter | Single pole low pass - 3 dB at 15 Hz |
| Analogue input number | 8 |
|---|---|
| Addressing requirement | 13 input words |
| Analogue input resolution | 16 bits |
| Linear measuring range | 0...25 mA |
| Absolute maximum input | 35 mA |
| Input impedance | 287 Ohm |
| Absolute accuracy error | +/- 0.3 % +/- 0.35 % of full scale maximum |
| Linearity error | +/- 2 µA max at 0…60 °C |
| Common mode rejection | - 65 dB 60 Hz - 70 dB 50 Hz |
| Isolation between channels and bus | 1500 V AC for 60 s |
| Isolation between channels | 500 V AC for 60 s |
| Update time | 15 ms |
| Fault type | Overtacking scale |
| Marking | CE |
| Local signalling | 1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault detected (F) 8 LEDs (green) for input status 8 LEDs (red) for system failure, diagnostic of internal channel fault |
| Bus current requirement | 400 mA |
| Power dissipation in W | 3.5 W |
