Schneider
ABL8REM24030 - Regulated SMPS - 1 or 2-phase - 100..240 V AC - 24 V - 3 A
| Kode Produk | ABL8REM24030 |
| Brand | Schneider |
| Kategori | Power Supply |
Pengiriman ke seluruh Indonesia via ekspedisi terpercaya
Deskripsi
This ABL8 regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 240V AC, a rated output current of 3A at 24V DC and a rated power output of 72W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. It installs on DIN rail and is 27mm-wide. It also has an adjustable voltage as well as 2 LEDs for input and output statuses. Automatic reset allows short-term faults to be cleared and systems to restart without the need to disturb on-duty maintenance engineers. It weighs 0.520kg. It is a power supply for industrial use, rail mounting. It conforms to UL 508, CSA C22.2 No 60950-1 standards. The GB2CB07, GB2CD07, GB2DB07, GB2CS07, GB2CB06, GB2CD06, GB2DB06 and GB2CS06 thermal-magnetic circuit breakers are recommanded for its protection. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. The ABL8MEM/ABL7RM (modular) range meets all the needs of simple automation systems with power ratings from 7 to 60 W and an output voltage of 5 V DC, 12 V DC, or 24V DC.
Spesifikasi
| Range of product | Modicon Power Supply |
|---|---|
| Product or component type | Power supply |
| Power supply type | Regulated switch mode |
| Nominal input voltage | 100...240 V AC phase to phase, terminal(s): L1-L2 100...240 V AC single phase, terminal(s): N-L1 110...220 V DC |
| Rated power in W | 72 W |
| Output voltage | 24 V DC |
| Power supply output current | 3 A |
| Input voltage limits | 85...264 V AC 100...250 V AC |
|---|---|
| Input protection type | Integrated fuse (not interchangeable) |
| Inrush current | 30 A |
| Power factor | 0.65 at 24 V DC |
| Efficiency | 85 % |
| Output voltage adjustment | 100...120 % adjustable |
| Power dissipation in W | 12.7 W |
| Current consumption | 0.83 A 240 V AC 1.46 A 100 V AC |
| Output protection type | Against overload, protection technology: 1.1 x In Against overvoltage, protection technology: tripping if U > 1.5 x Un Against short-circuits, protection technology: automatic reset Against undervoltage, protection technology: tripping if U < 0.8 x Un |
| Connections - terminals | Screw type terminals: 2 x 0.14...2 x 2.5 mm², (26 AWG...14 AWG) for input connection Screw type terminals: 1 x 0.14...1 x 2.5 mm², (26 AWG...14 AWG) for input ground connection Screw type terminals: 2 x 0.14...2 x 2.5 mm², (26 AWG...14 AWG) for output connection Screw type terminals: 1 x 0.14...1 x 2.5 mm², (26 AWG...14 AWG) for output ground connection |
| Status LED | 1 LED (green) output voltage 1 LED (orange) input voltage |

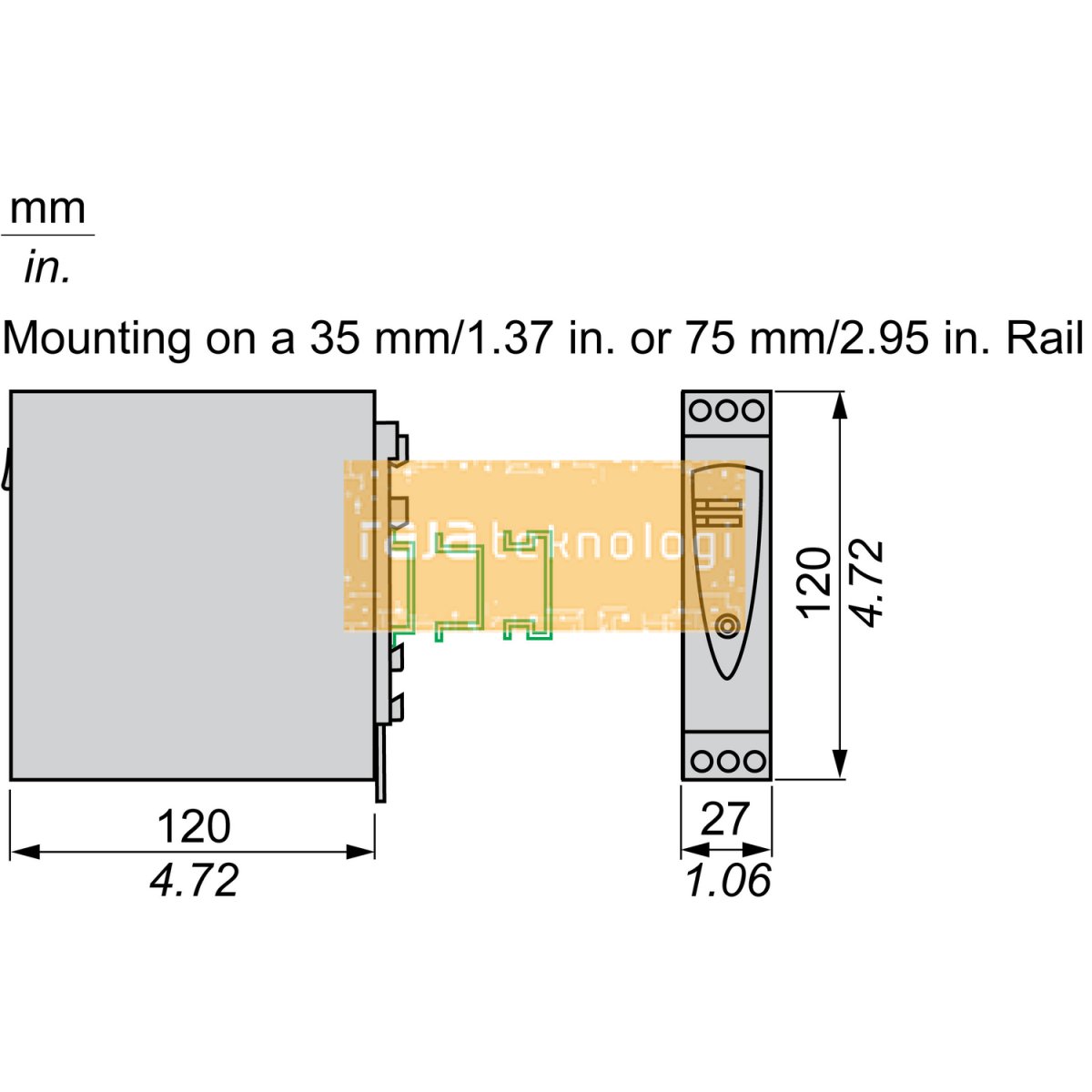

| Depth | 120 mm |
| Height | 120 mm |
| Width | 27 mm |
| Net weight | 0.52 kg |

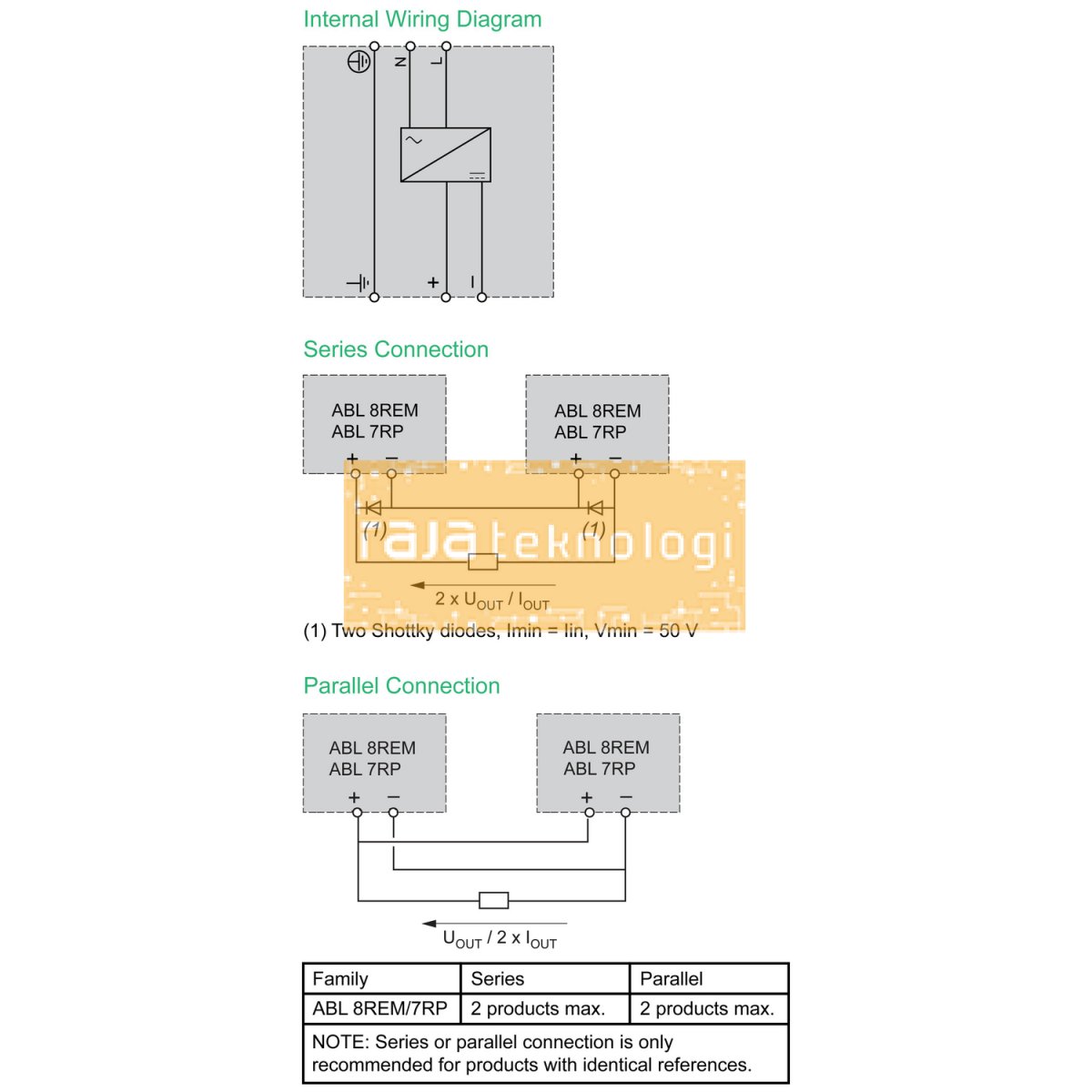

| Output coupling | Parallel Series |
| Marking | CE |
| Mounting support | 35 x 15 mm symmetrical DIN rail 35 x 7.5 mm symmetrical DIN rail 75 x 7.5 mm symmetrical DIN rail |
| Operating position | Vertical |
| Supply | SELV conforming to IEC 60950-1 SELV conforming to IEC 60204-1 SELV conforming to IEC 60364-4-41 |
| Dielectric strength | 3000 V with between input and ground 3000 V with between input and output 500 V with between output and ground 500 V with between outputs |
