Schneider

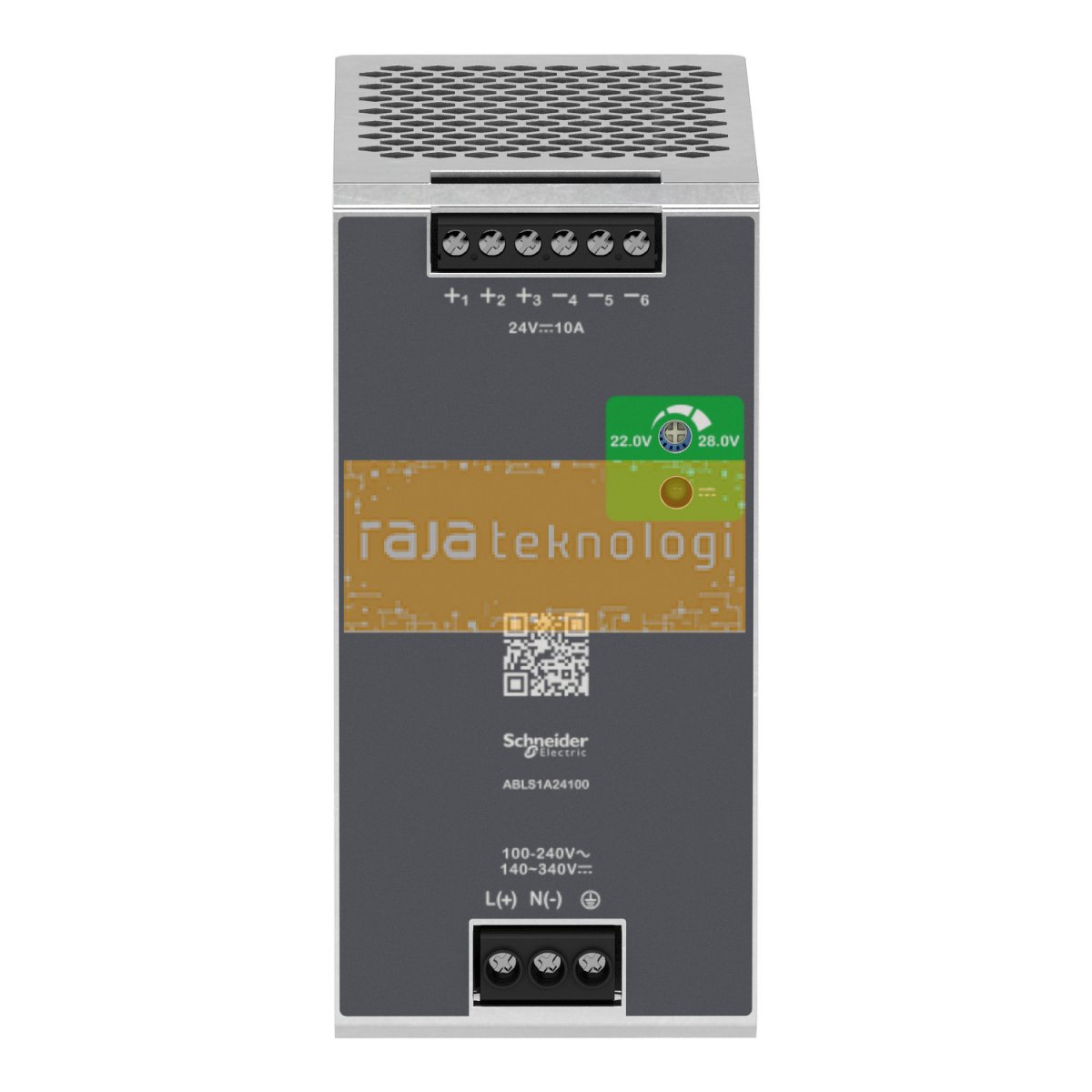

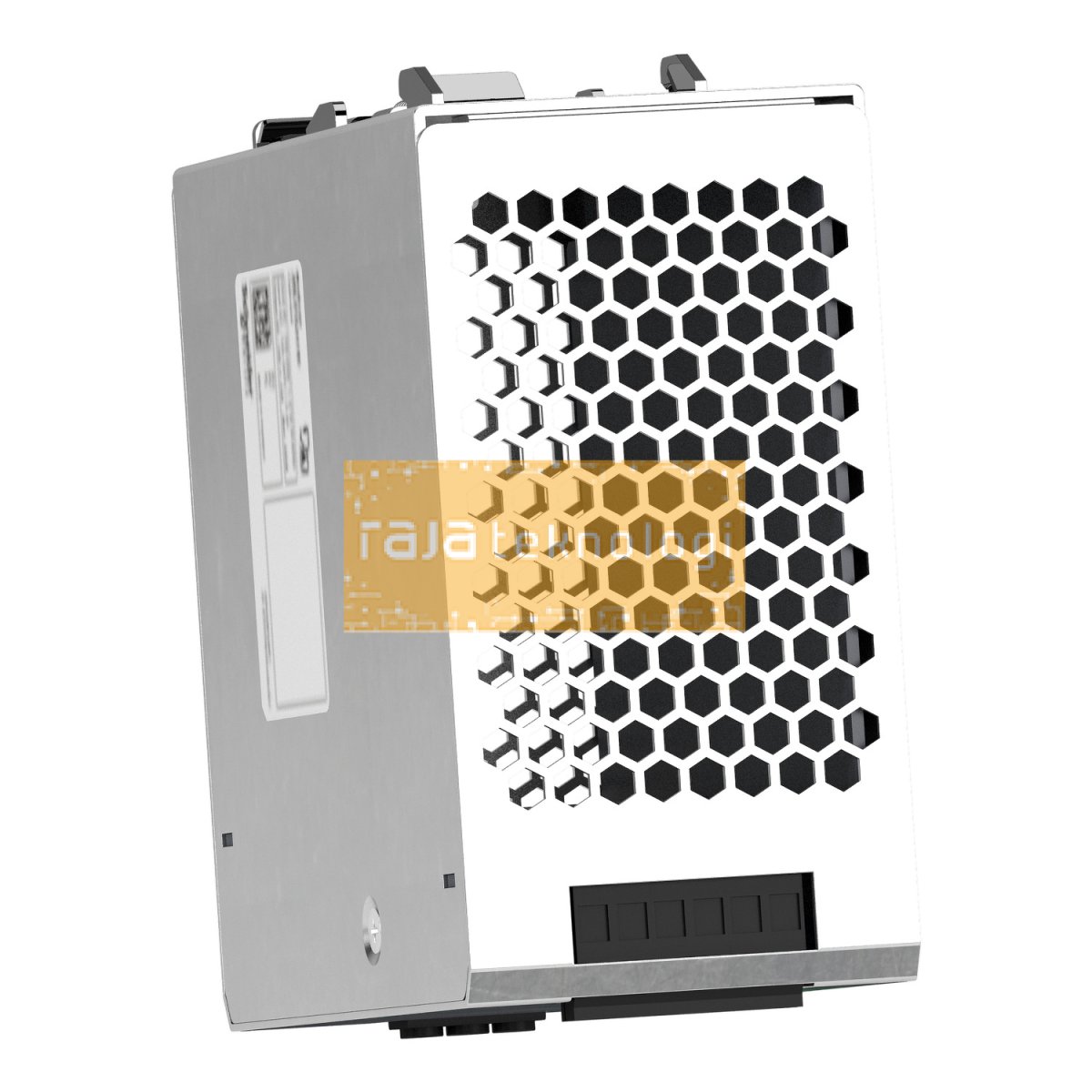

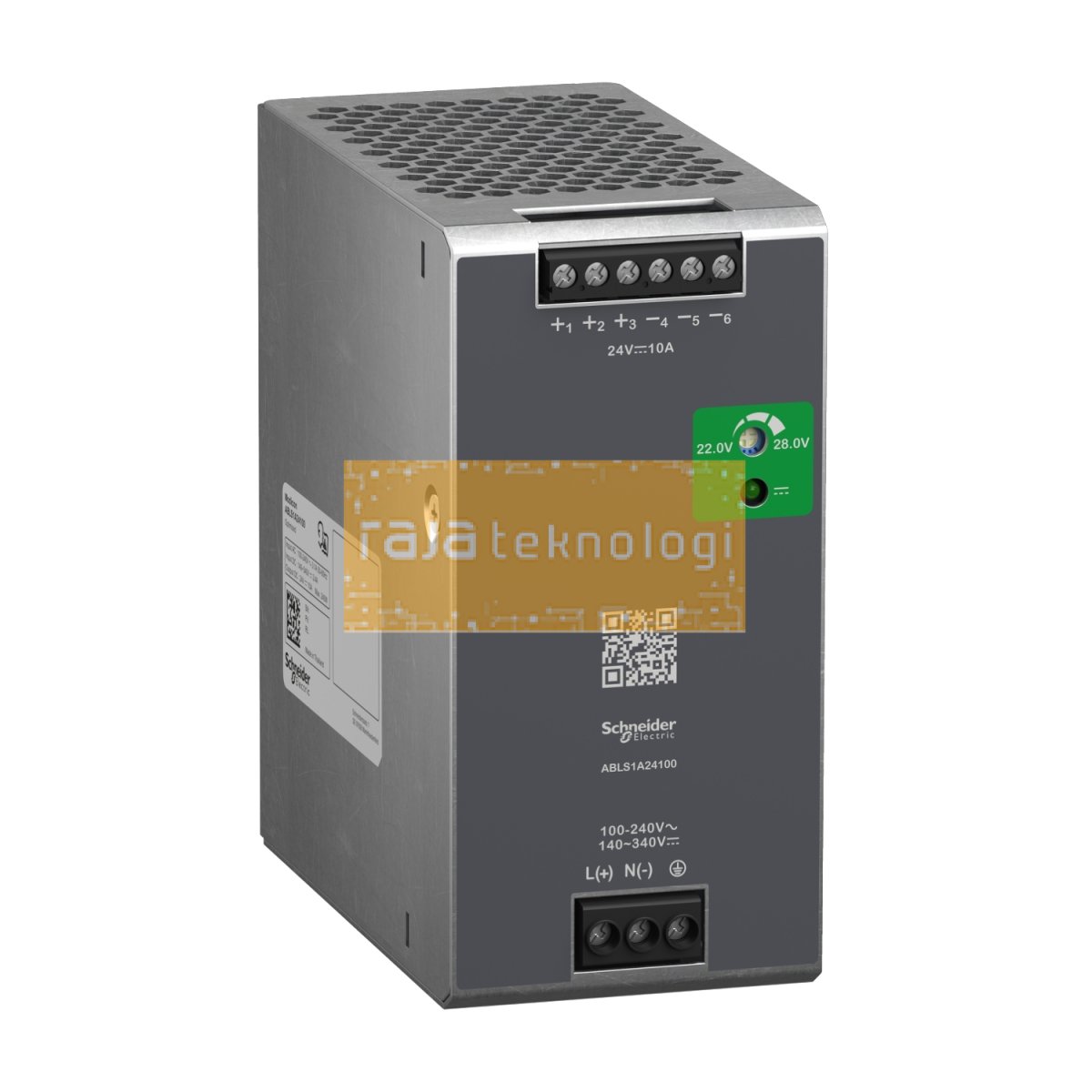

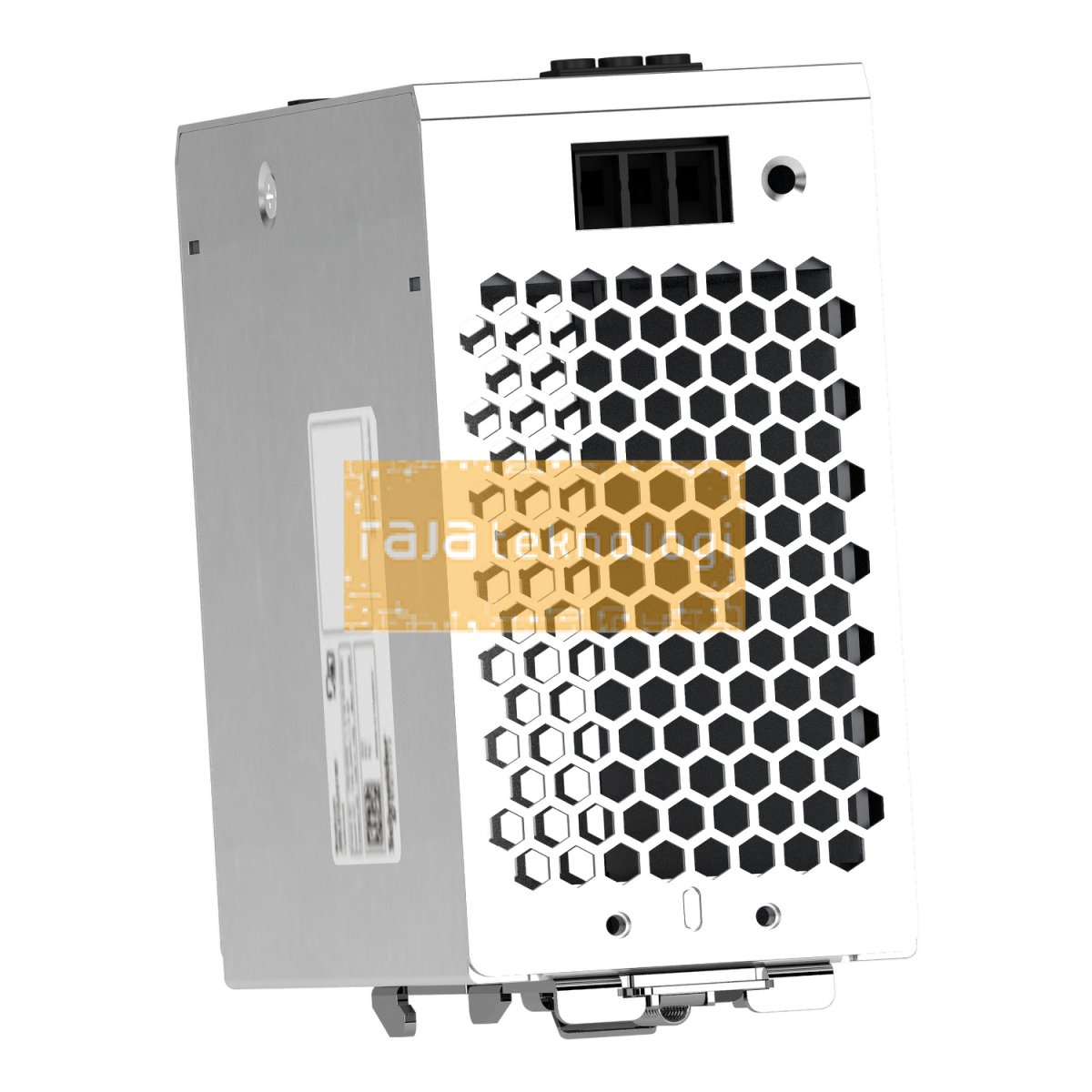

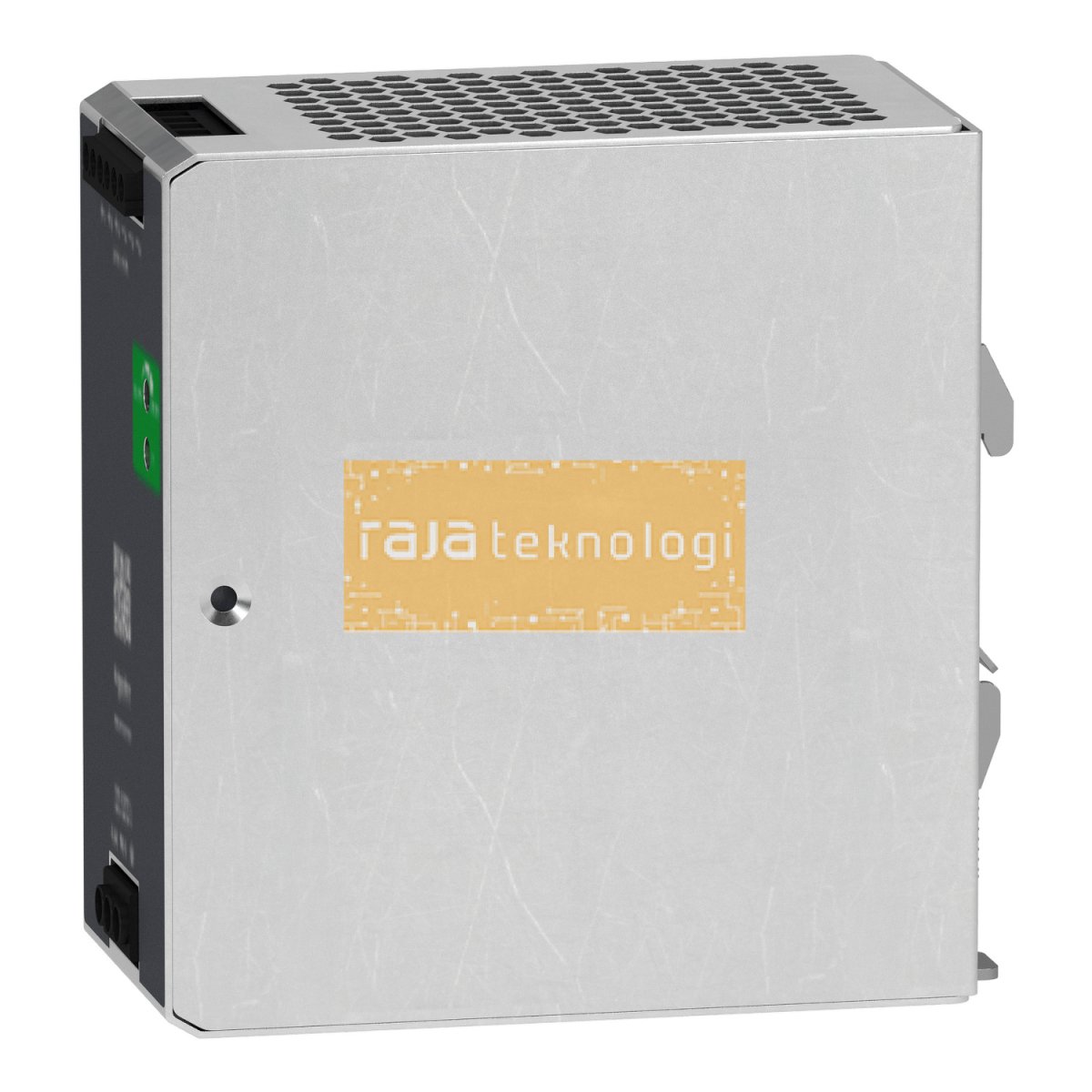

ABLS1A24100 - Regulated Power Supply, 100-240V AC, 24V 10 A, single phase, Optimized
| Kode Produk | ABLS1A24100 |
| Brand | Schneider |
| Kategori | Power Supply |
Pengiriman ke seluruh Indonesia via ekspedisi terpercaya
Deskripsi
This ABLS regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 240V AC and 140 V to 340 V DC, a rated output current of 10A at 24V DC and a rated power output of 240W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. It installs on omega rail or fixing by screw. Its width is 60mm, its height is 123,6mm, its depth is 117,6mm. It ensures a protection against overloads and short-circuits with automatic restart after the source of overload/short-circuit has been corrected. It weighs 0.800kg. It is a power supply for industrial use, rail mounting. It conforms to EN62368-1, ENIEC61010-1/2-201, ENIEC61204-3, EN61000-6-1/2/3/4, EN61000-3-2-3, UL62368-1, UL61010-2-201/-1-201, CSAC22.2No62368-1/No61010-2-201/No61010-1 standards, and certified by CE, CUL listed/recognized, RCM, CBscheme. The Acti9 iC60 range of Miniature Circuit Breakers is recommanded for its protection. The type of protection is 6A, B or C curve. It has in the front face a LED indicating presence of DC output voltage, and a QR code for access to the latest technical documentation. Thanks to its book housing, it can be installed either in enclosures or industrial panels by clipping on omega (DIN) rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.
Spesifikasi
| Range of product | Modicon Power Supply |
|---|---|
| Product or component type | Power supply |
| Power supply type | Regulated switch mode |
| Variant option | Optimized |
| Enclosure material | Aluminium |
| Nominal input voltage | 100...240 V AC single phase 100...240 V AC phase to phase 140...340 V DC |
| Rated power in W | 240 W |
| Output voltage | 24 V DC |
| Power supply output current | 10 A |
| Input voltage limits | 85...264 V AC without temperature derating 120...375 V DC without temperature derating |
|---|---|
| Nominal network frequency | 50…60 Hz |
| Network system compatibility | TN TT IT |
| Maximum leakage current | 1 mA 240 V AC |
| Input protection type | Integrated fuse (not interchangeable) 6.3 A External protection (recommended) 20 A Curve B External protection (recommended) 20 A Curve C External protection (recommended) 6 A Curve B External protection (recommended) 6 A Curve C |
| Inrush current | 30.0 A at 115 V 60.0 A at 230 V |
| Power factor | 0.95 at 115 V AC 0.95 at 230 V AC |
| Efficiency | 85 % at 115 V AC 88 % at 230 V AC |
| Output voltage adjustment | 22...28 V |
| Power dissipation in W | 36 W |
| Current consumption | < 2.8 A 115 V AC < 1.4 A 230 V AC < 2.4 A 140 V DC |
| Turn-on time | < 1 s |
| Holding time | > 20 ms 115 V AC > 20 ms 230 V AC |
| Startup with capacitive loads | 8000 µF |
| Residual ripple | < 120 mV |
| Meantime between failure [MTBF] | 700000 h at 25 °C, full load conforming to SR 332 |
| Output protection type | Against overload and short-circuits, protection technology: automatic reset Against over temperature, protection technology: manual reset Against overvoltage, protection technology: manual reset |
| Connections - terminals | Screw connection: 0.5...4 mm², (20 AWG...12 AWG) without wire end ferrule for output Screw connection: 0.5...2.5 mm², (20 AWG...14 AWG) with wire end ferrule for output Screw connection: 0.75...4 mm², (18 AWG...12 AWG) without wire end ferrule for input Screw connection: 0.75...4 mm², (18 AWG...12 AWG) with wire end ferrule for input |
| Line and load regulation | < 0.5 % at 0 to 100 % load at 25 °C < 1 % at full voltage range in line at 25 °C |
| Status LED | 1 LED (green) output voltage |

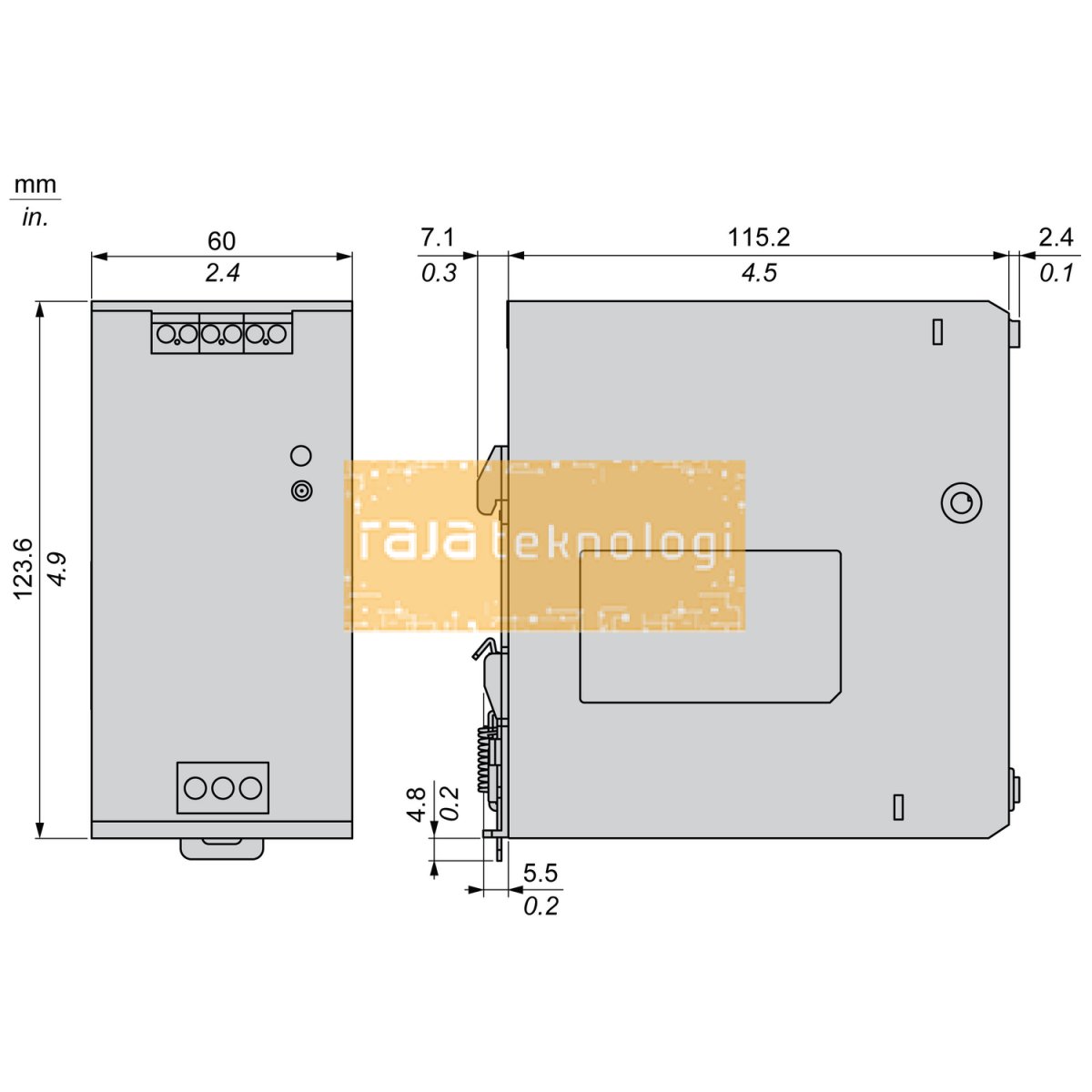

| Depth | 117.6 mm |
| Height | 123.6 mm |
| Width | 60 mm |
| Net weight | 0.8 kg |

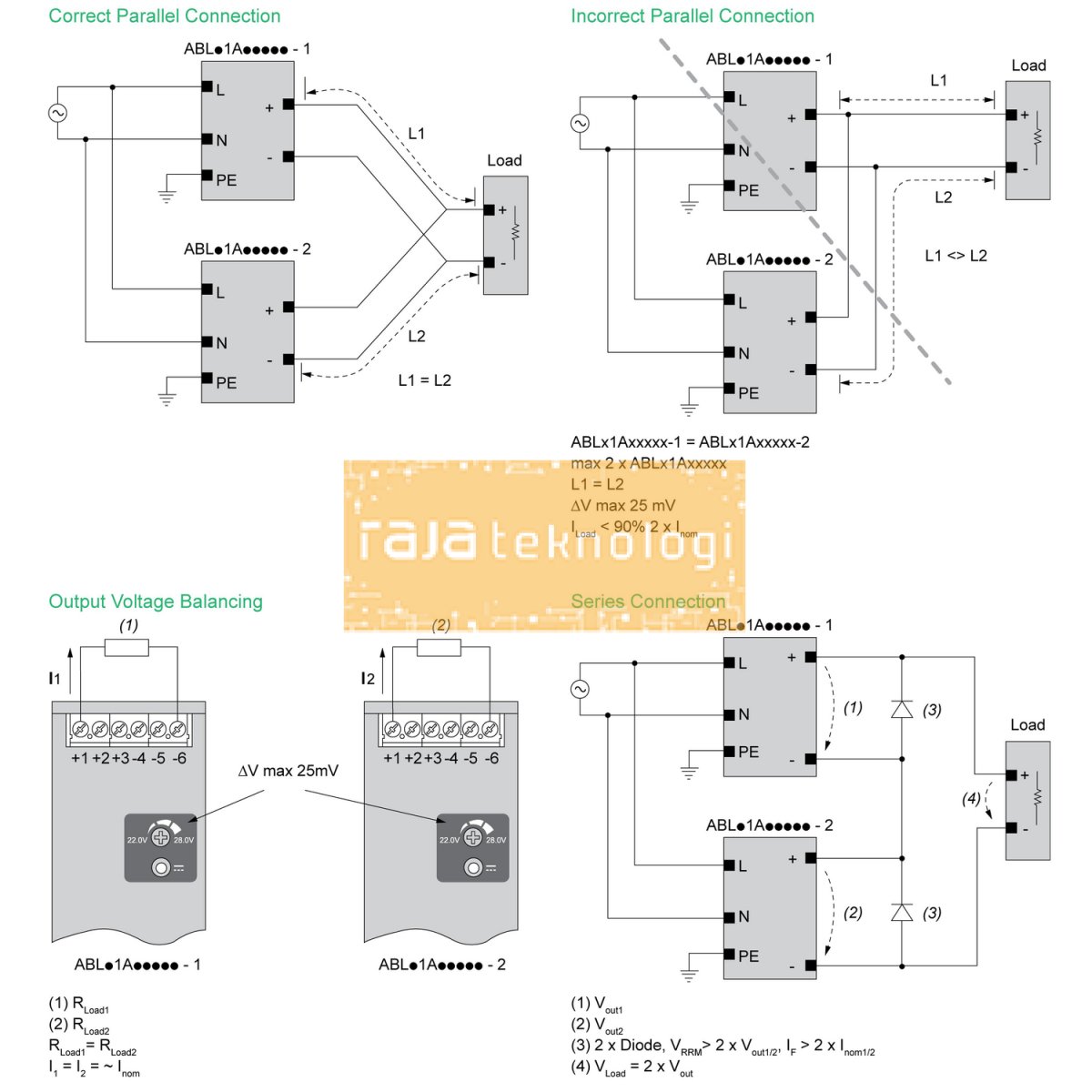

| Output coupling | Parallel Serial |

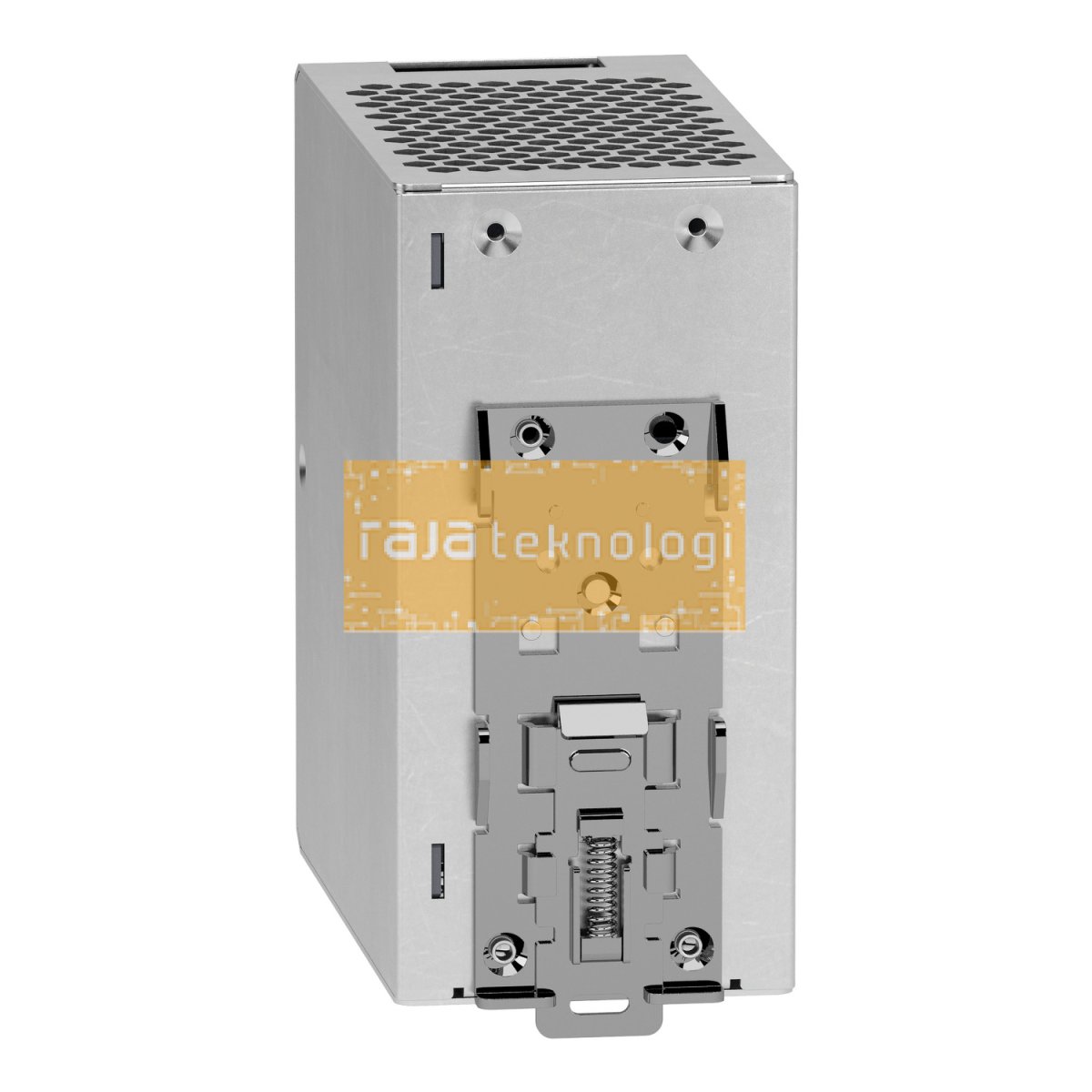

| Mounting support | Top hat type TH35-15 rail conforming to IEC 60715 Top hat type TH35-7.5 rail conforming to IEC 60715 Double-profile DIN rail |
| Supply | SELV conforming to IEC 60950-1 SELV conforming to IEC 60204-1 SELV conforming to IEC 60364-4-41 |
| Dielectric strength | 3000 V AC with input to output |
| Service life | 10 year(s) |
| Overvoltage category | II |
