Schneider

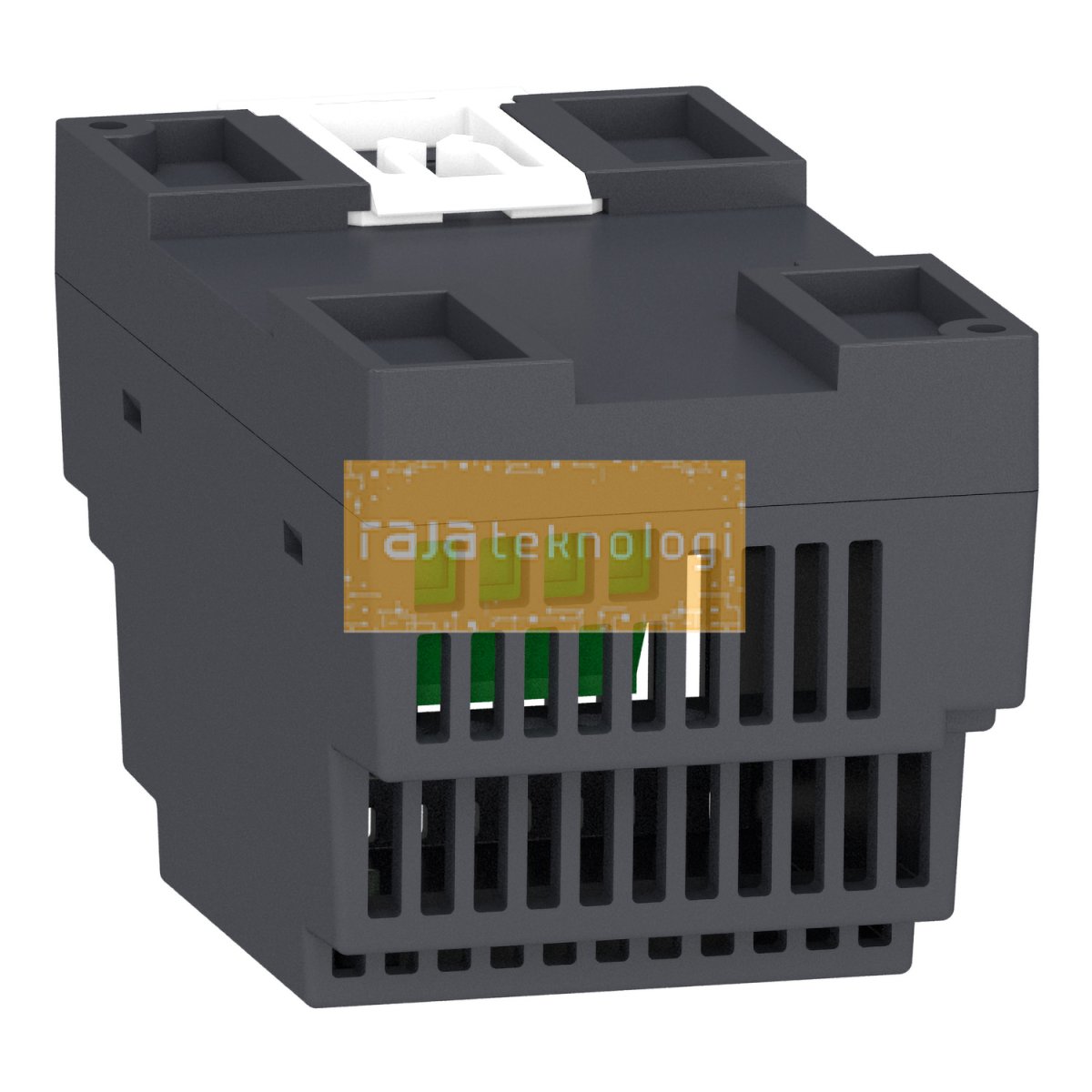

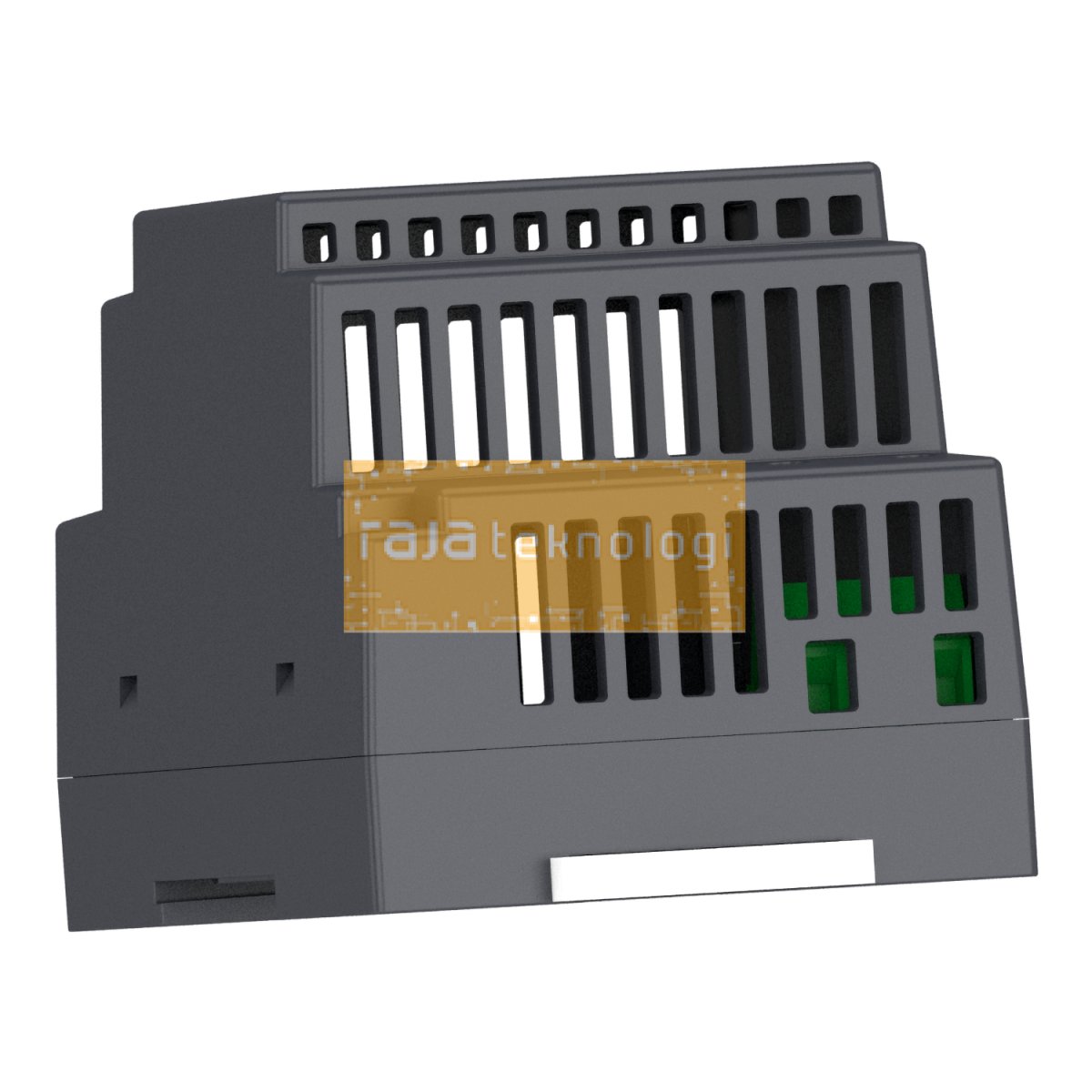

ABLM1A24025 - Regulated Power Supply, 100-240V AC, 24V 2.5 A, single phase, Modular
| Kode Produk | ABLM1A24025 |
| Brand | Schneider |
| Kategori | Power Supply |
Pengiriman ke seluruh Indonesia via ekspedisi terpercaya
Deskripsi
This ABLM regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 240V AC, a rated output current of 2,5A at 24V DC and a rated power output of 60W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. It installs on omega rail or fixing by screw. Its width is 53mm, its height is 91mm, its depth is 55,6mm. It ensures a protection against overloads and short-circuits with automatic restart after the source of overload/short-circuit has been corrected. It weighs 0.221kg. It is a power supply for industrial use, rail mounting. It conforms to EN62368-1, ENIEC61010-1/2-201, ENIEC61204-3, EN61000-6-1/2/3/4, EN61000-3-2-3, UL62368-1, UL61010-2-201/-1-201, CSAC22.2No62368-1/No61010-2-201/No61010-1 standards, and certified by CE, CUL listed/recognized, RCM, CBscheme. The Acti9 iC60 range of Miniature Circuit Breakers is recommanded for its protection. The type of protection is 6A, C curve or 10A, B-curve. It has in the front face a LED indicating presence of DC output voltage, and a QR code for access to the latest technical documentation. Thanks to their modular housing, they can be installed either in enclosures or industrial panels by clipping on omega (DIN) rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.
Spesifikasi
| Range of product | Modicon Power Supply |
|---|---|
| Product or component type | Power supply |
| Power supply type | Regulated switch mode |
| Variant option | Modular |
| Enclosure material | Plastic |
| Nominal input voltage | 100...240 V AC single phase 100...240 V AC phase to phase |
| Rated power in W | 60 W |
| Output voltage | 24 V DC |
| Power supply output current | 2.5 A |
| Input voltage limits | 90...264 V AC |
|---|---|
| Nominal network frequency | 50…60 Hz |
| Network system compatibility | TN TT IT |
| Maximum leakage current | 0.25 mA 240 V AC |
| Input protection type | Integrated fuse (not interchangeable) 3.15 A External protection (recommended) 20 A Curve B External protection (recommended) 20 A Curve C External protection (recommended) 10 A Curve B External protection (recommended) 6 A Curve C |
| Inrush current | 30 A at 115 V 60 A at 230 V |
| Power factor | 0.50 at 115 V AC 0.39 at 230 V AC |
| Efficiency | 90 % at 115 V AC 90 % at 230 V AC |
| Output voltage adjustment | 24...28 V |
| Power dissipation in W | 6.5 W |
| Current consumption | < 1.5 A 115 V AC < 1 A 230 V AC |
| Turn-on time | < 2 s |
| Holding time | > 20 ms 115 V AC > 60 ms 230 V AC |
| Startup with capacitive loads | 3000 µF |
| Residual ripple | < 100 mV |
| Meantime between failure [MTBF] | 1300000 h at 25 °C, full load 700000 h at 55 °C, 80 % load |
| Output protection type | Against overload and short-circuits, protection technology: automatic reset Against over temperature, protection technology: manual reset Against overvoltage, protection technology: manual reset |
| Connections - terminals | Screw connection: 0.5...2.5 mm², (20 AWG...14 AWG) without wire end ferrule for output Screw connection: 0.5...1.5 mm², (20 AWG...16 AWG) with wire end ferrule for output Screw connection: 0.5...1.5 mm², (20 AWG...16 AWG) for input |
| Line and load regulation | < 0.5 % at in line < 1 % at 0 to 100 % load |
| Status LED | 1 LED (green) output voltage |

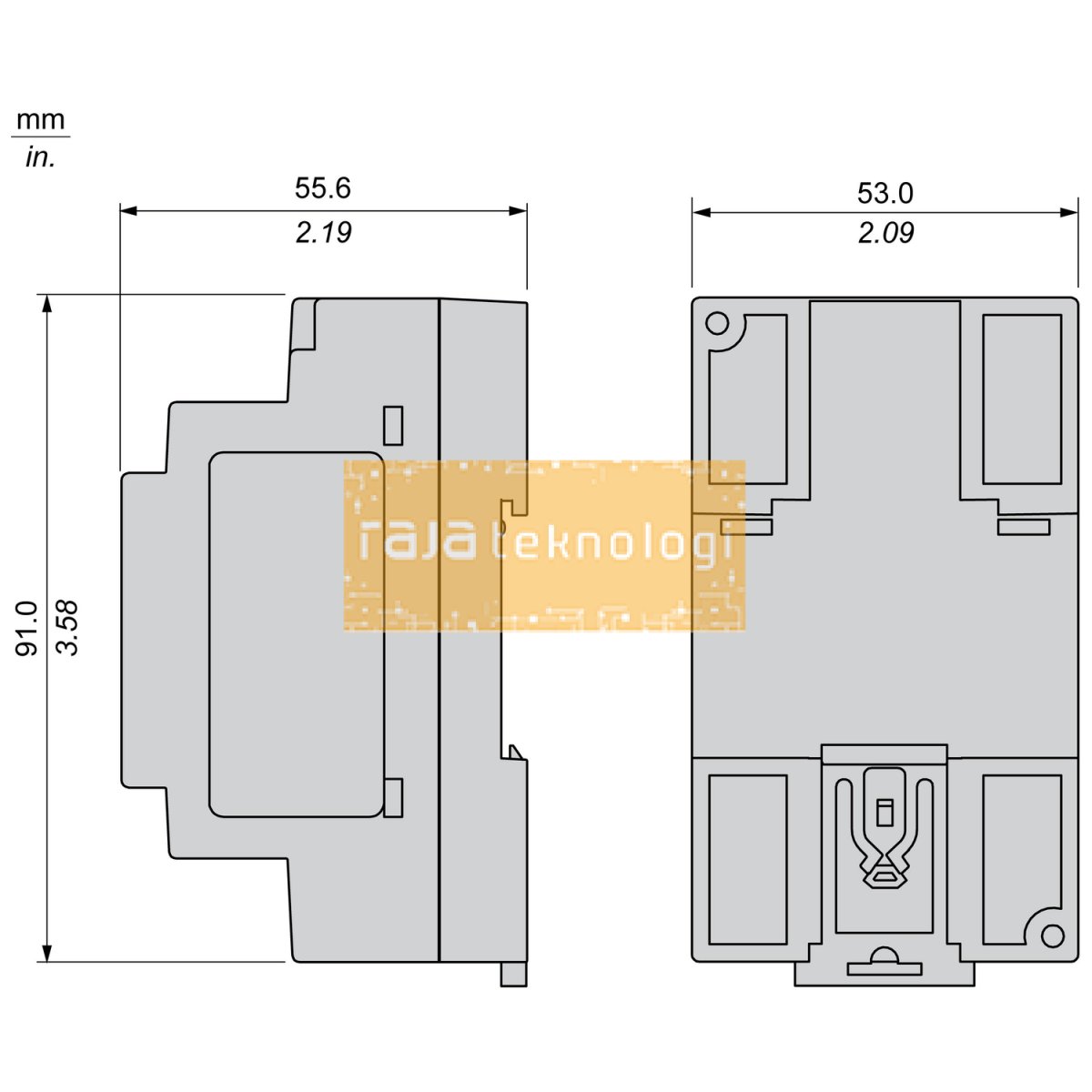

| Depth | 55.6 mm |
| Height | 91 mm |
| Width | 53 mm |
| Net weight | 0.221 kg |

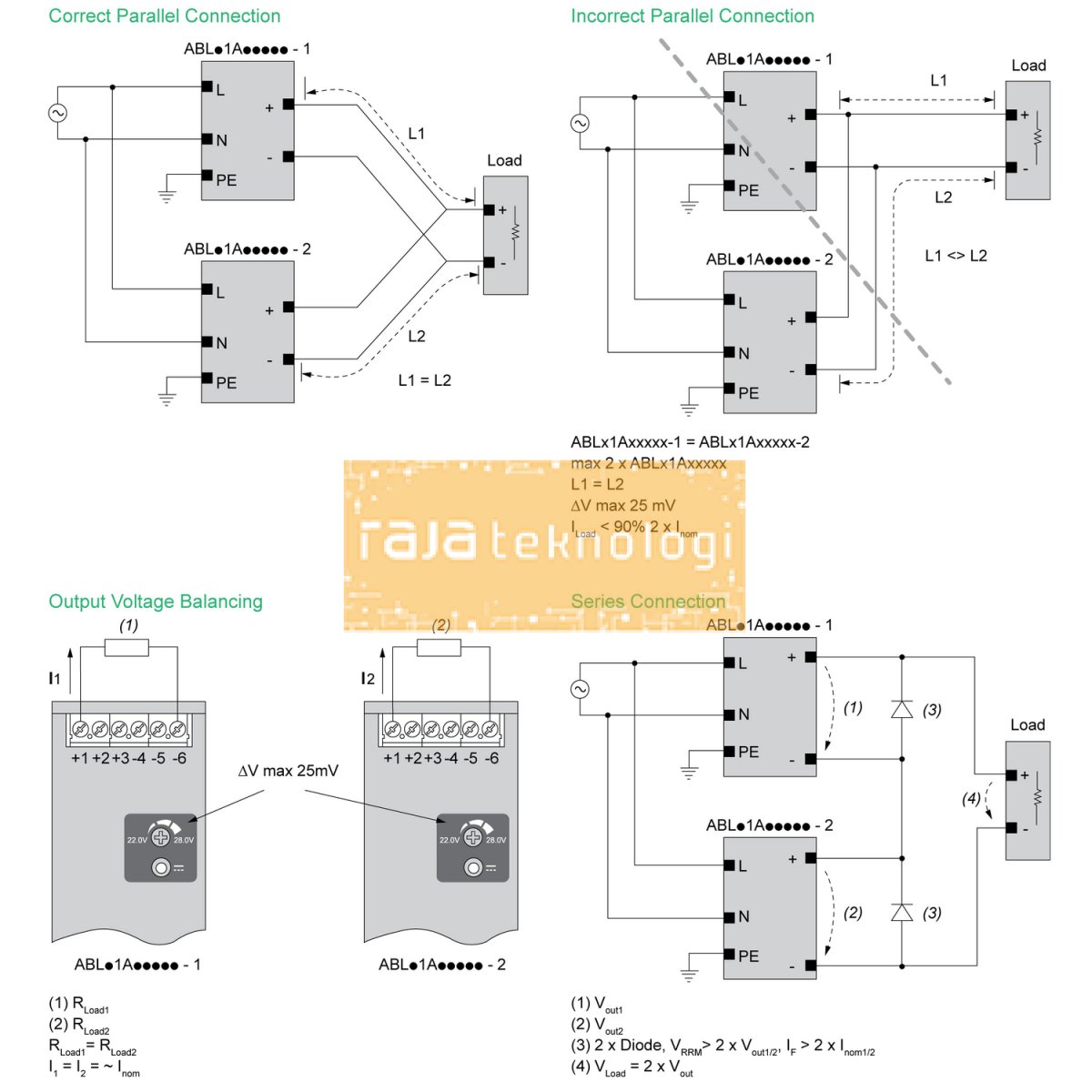

| Output coupling | Serial Parallel |

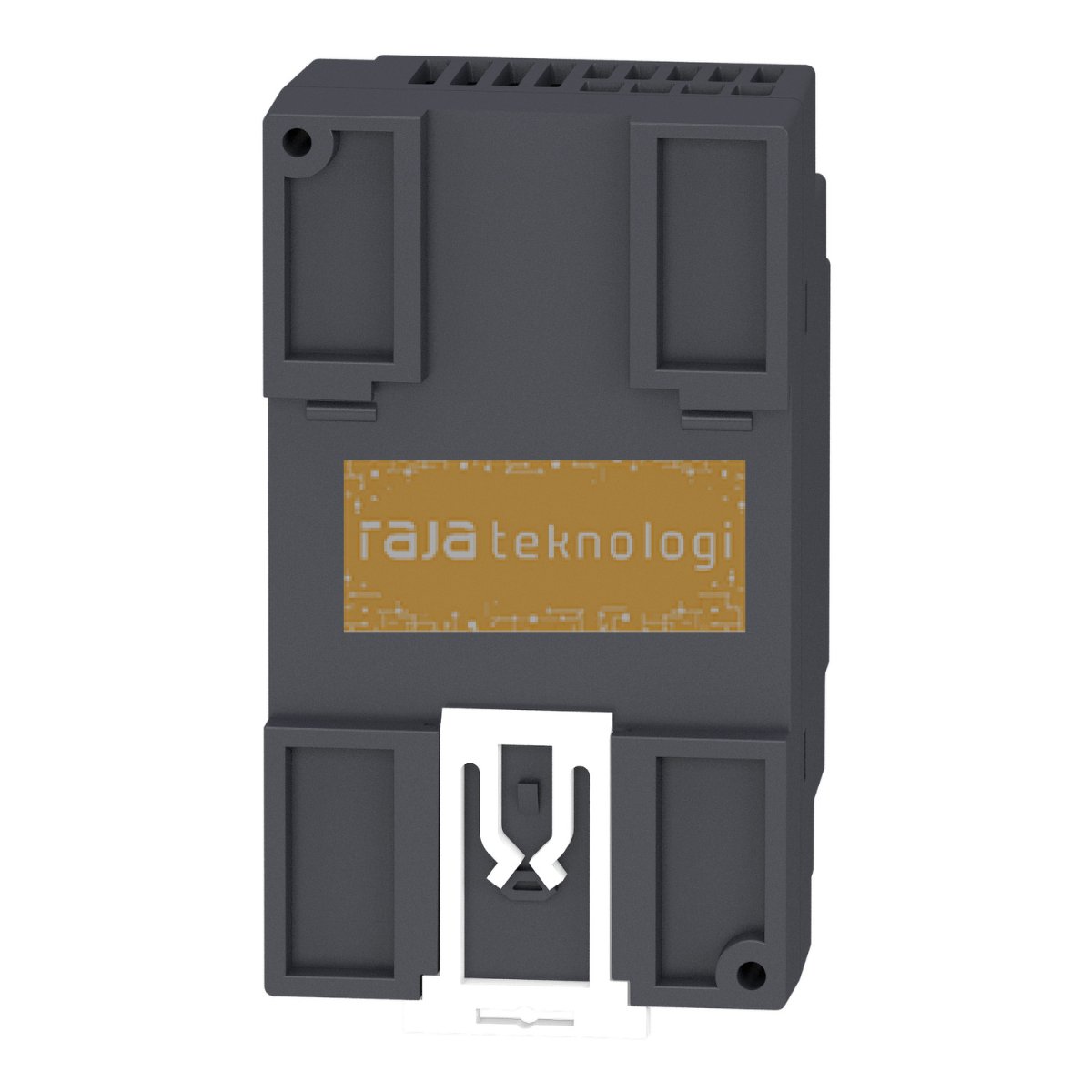

| Mounting support | Top hat type TH35-15 rail conforming to IEC 60715 Top hat type TH35-7.5 rail conforming to IEC 60715 Double-profile DIN rail panel mounting |
| Supply | SELV conforming to IEC 60950-1 SELV conforming to IEC 60204-1 SELV conforming to IEC 60364-4-41 |
| Dielectric strength | 3000 V AC input/output |
| Service life | 10 year(s) |
| Overvoltage category | II |
