Schneider

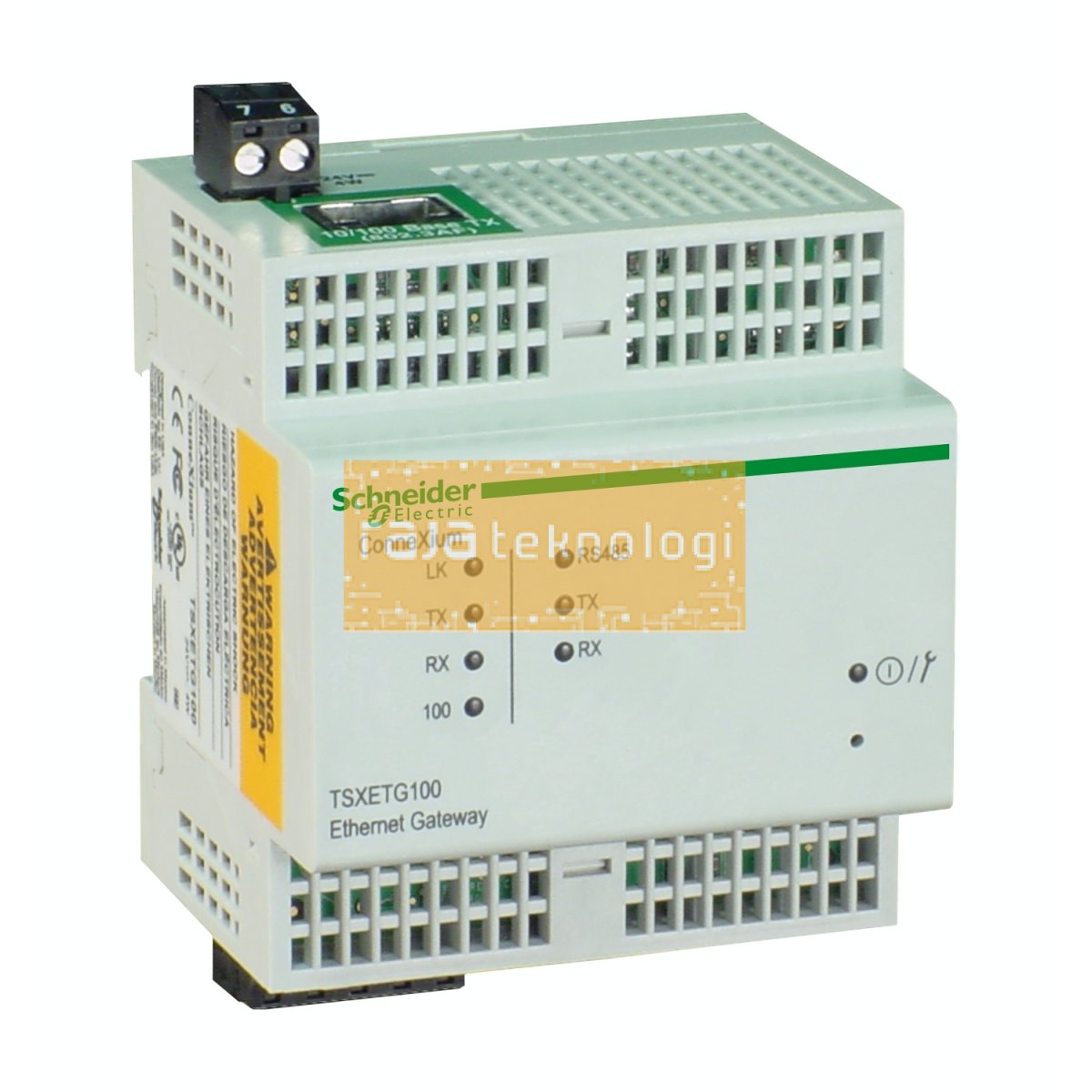

TSXETG100 - Ethernet Modbus gateway/router - classB10 - 10BASE-T/100BASE-TX
| Kode Produk | TSXETG100 |
| Brand | Schneider |
| Kategori | Industrial Communication |
Pengiriman ke seluruh Indonesia via ekspedisi terpercaya
Deskripsi
Ethernet Modbus gateway/router - classB10 - 10BASE-T/100BASE-TX
Spesifikasi
| Range of product | ConneXium |
|---|---|
| Product or component type | Ethernet Modbus gateway/router |
| Product destination | All products compatible with Modbus standard |
| Concept | Transparent Ready |
| Web server | Class B10 |
| [Us] rated supply voltage | 24 V DC |
| Web services | Via predefined web pages : diagnostic on Ethernet and Modbus links Predefined web pages Access to connected products list, reading of Modbus devices registers |
|---|---|
| Communication service | SNMP agent, device administration with a SNMP manager Read/write Modbus registers of connected devices Miniature firewall on-board (IP address filtering) and password protection BOOTP protocol, FDR client |
| Supply | Power supply device PoE conforming to IEEE 802.3af |
| Integrated connection type | Ethernet TCP/IP RJ45 10/100 Mbps 1 twisted pair Serial link 5-way removable terminal block Modbus RTU and ASCII RS485 57.6 kbps Serial link micro switches Modbus RTU and ASCII RS485 57.6 kbps Serial link RJ45 RS232 38.4 kbps |
| Maximum number of connected devices | Modbus serial link: 32 |
| Port Ethernet | 10BASE-T/100BASE-TX |
| Mounting support | Symmetrical DIN rail |
| Marking | CE |
| Local signalling | 3 LEDs for serial link communication (RS485, RX, TX) 4 LEDs for Ethernet communication (LK, RX, TX, 100) |
| Width | 72 mm |
| Height | 81 mm |
| Depth | 76 mm |
